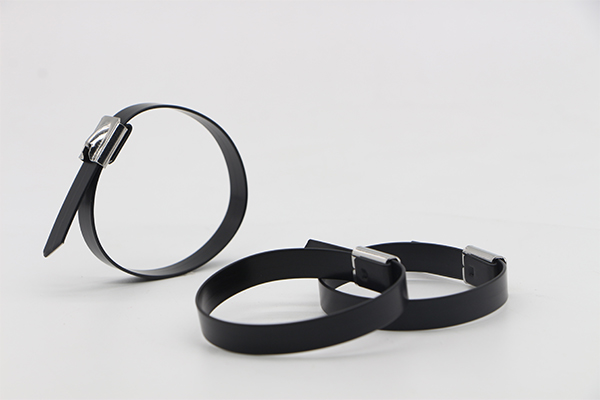

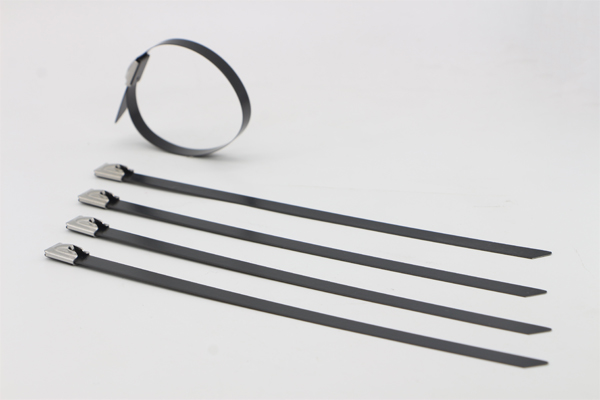

Black Coated Self Locking Stainless Steel Cable Ties

Black Coated Self Locking Stainless Steel Cable Ties

Category:

Black Coated Self Locking Stainless Steel Cable Ties Marine Grade 316

Specification：

Material: Stainless Steel Grade 304 or 316
Working Temperature: -80°C to 538°C
Color: Silver
Flammability: Fireproof
UV-resistant, Halogen Free, Non-toxic
Features: Self-locking, for installing easier and faster. Smooth rounded edges, for safe handling. It is also available with polyester coating for customized applications.

Model Number Width Length Thickness Max.Bundle Dia. Min.Bundle Dia. Min. Tensile Strength
mm inch mm inch mm inch mm inch mm inch N lbs
BZ-C 4.6×100 4.6 0.18 100 3.9 0.26 0.010 25 1.00 12.7 0.50 1100 250
BZ-C 4.6×150 150 5.9 37 1.46
BZ-C 4.6×200 200 7.9 50 1.97
BZ-C 4.6×250 250 9.8 63 2.50
BZ-C 4.6×300 300 11.8 76 3.00
BZ-C 4.6×350 350 13.8 89 3.51
BZ-C 4.6×400 400 15.7 102 4.00
BZ-C 4.6×450 450 17.7 115 4.50
BZ-C 4.6×500 500 19.7 128 5.00
BZ-C 4.6×550 550 21.7 141 5.56
BZ-C 4.6×650 650 25.6 167 6.58
BZ-C 4.6×700 700 27.6 179 7.05
BZ-C 4.6×800 800 31.5 193 7.60
BZ-C 4.6×900 900 35.4 200 7.87
BZ-C 4.6×1000 1000 39.4 206 8.12
BZ-C 4.6×1100 1100 43.3 278 10.94
BZ-C 7.9×150 7.9 0.31 150 5.9 0.26 0.01 37 1.46 12.7 0.50 1500 340
BZ-C 7.9 x 200 200 7.9 50 1.97
BZ-C 7.9×250 250 9.8 63 2.50
BZ-C 7.9×300 300 11.8 76 3.00
BZ-C 7.9×350 350 13.8 89 3.50
BZ-C 7.9×400 400 15.7 102 4.00
BZ-C 7.9×500 500 19.7 128 5.00
BZ-C 7.9×600 600 23.6 154 6.07
BZ-C 7.9×800 800 31.5 193 7.60
BZ-C 7.9×1000 1000 39.4 206 8.12
BZ-C 10×300 10 0.39 300 11.8 0.26 0.010 76 3.00 12.7 0.50 2100 480
BZ-C 10×350 350 13.8 89 3.50
BZ-C 10×400 400 15.7 102 4.00
BZ-C 10×500 500 19.7 128 5.00
BZ-C 10×600 600 23.6 154 6.07
BZ-C 10×800 800 31.5 193 7.60
BZ-C 10×1000 1000 39.4 206 8.12
BZ-C 12×350 12 0.47 350 13.8 0.35 0.014 78 3.07 25.4 1.00 3000 675
BZ-C 12×400 400 15.7 102 4.02
BZ-C 12×500 500 19.7 128 5.04
BZ-C 12×600 600 23.6 154 6.06
BZ-C 12×750 750 29.5 188 7.40
BZ-C 12×900 900 35.4 228 8.98
BZ-C 12×1100 1100 43.3 278 10.94
BZ-C 12.7×350 12.7 0.50 350 13.8 0.35 0.014 78 3.07 25.4 1.00 3200 720
BZ-C 12.7×400 400 15.7 102 4.02
BZ-C 12.7×500 500 19.7 128 5.04
BZ-C 12.7×600 600 23.6 154 6.06
BZ-C 12.7×750 750 29.5 188 7.40
BZ-C 12.7×900 900 35.4 228 8.98
BZ-C 12.7×1100 1100 43.3 278 10.94
BZ-C 15×350 15 0.59 350 13.8 0.35 0.014 78 3.07 25.4 1.00 4000 900
BZ-C 15×400 400 15.7 102 4.02
BZ-C 15×450 450 17.7 108 4.25
BZ-C 15×600 600 23.6 148 5.83
BZ-C 15×750 750 29.5 184 7.24
BZ-C 15×900 900 35.4 220 8.66
