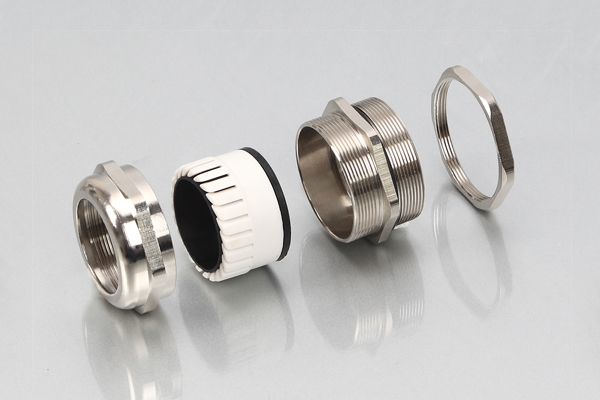

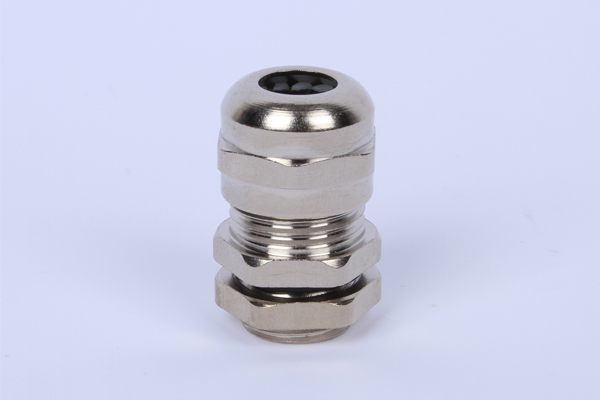

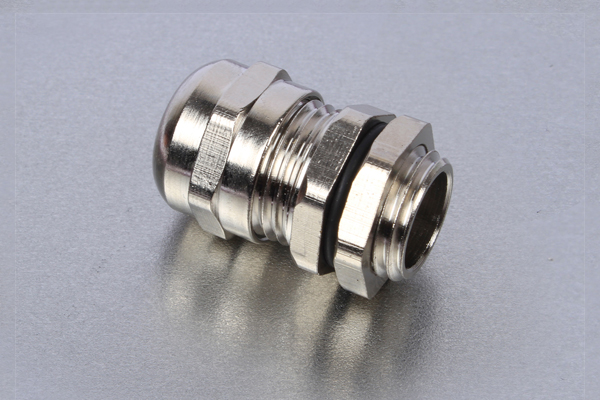

Brass Cable Gland M Series BM

Category:

Brass Cable Gland Manufacturer

Specification:

Material:
Nickel-plated brass
Claw: PA66 (Nylon) , UL94-V2
Hermetic seal: NBR, Silicone rubber
O-ring: NBR, Silicone rubber
Protection rating: IP68 -10 bar
Work / Operating Temperature:
Static state: -40 °C to 100 ° C, Short time to 120°C;
Dynamic state: -20 °C to 80° C, Short time to 100°C
Certificate: CE, RoHS approved

(In mm)

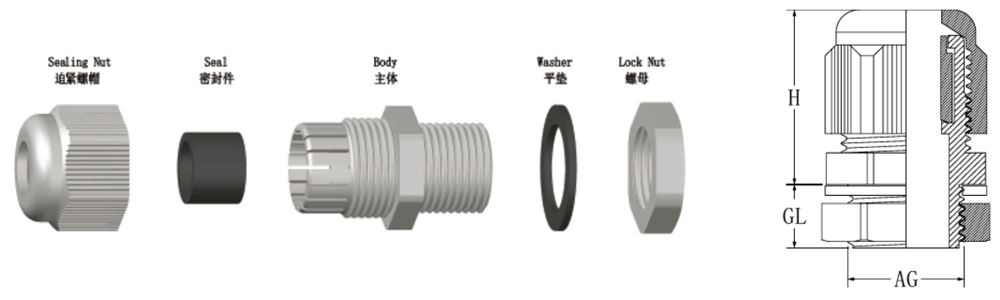

Item Range Thread Length
GL
Thread O.D.
AG
Joint Length
H
Spanner size Item No.
M8X1 2-5 5 8 13.5 12 BM8
M10X1 3-6.5 6.5 10.0 17 14 BM10
M12X1.5 3-6.5 6.5 12 17 14 BM12
M14X 1.5 4-8 8 14.0 18 17 BM14
M16X1.5 4-8 8 16.0 19 18 BM16
M18X1.5 5-10 8 18.0 20 20 BM18
M20X1.5 6-12 8 20.0 21 22 BM20
M22X1.5 10-14 8 22.0 22 24 BM22
M24X1.5 10-14 9 24.0 22 24/27 BM24
M25X1.5 10-14 9 25.0 22 24/27 BM25-14
M25X1.5 11-16 9 25.0 25 27 BM25-16
M25X1.5 13-18 9 25.0 27 30/27 BM25-18
M27X1.5 13-18 9 27.0 27 30 BM27
M30X2 13-18 9 30.0 27 30/32 BM30
M32X1.5 15-22 10 32.0 29 35 BM32
M33X2 15-22 10 33.0 29 35/36 BM33
M36X1.5 18-25 10 36.0 31 40 BM36
M37X1.5 18-25 10 37.0 31 40 BM37
M40X1.5 18-25 11 40.0 31 40/45 BM40-25
M40X1.5 22-30 11 40.0 35 45 BM40-30
M47X1.5 25-33 11 47.0 37 50 BM47
M50X1.5 32-38 13 50.0 37 57/55 BM50
M60X1.5 37-44 14 60.0 38 64 BM60
M63X1.5 37-44 14 63.0 38 64/68 BM63
M64X2 37-44 14 64.0 38 64/68 BM64
M70X2 42-52 16 70.0 44 78 BM70
M72X2 42-52 16 72.0 44 78 BM72
M72X2 48-58 16 72.0 44 78 BM72-58
M75X2 42-52 16 75.0 44 78/80 BM75
M75X2 48-58 16 75.0 44 78/80 BM75-58
M80X2 55-62 18 80.0 45 88 BM80
M88X2 65-70 18 88.0 45 94 BM88
M100X2 78-84 20 100.0 53 110 BM100
M120X2 78-84 20 120 53 110/130 BM120
