Cable Terminal Lugs Electrical Lugs LYF

Category: Cable Lug

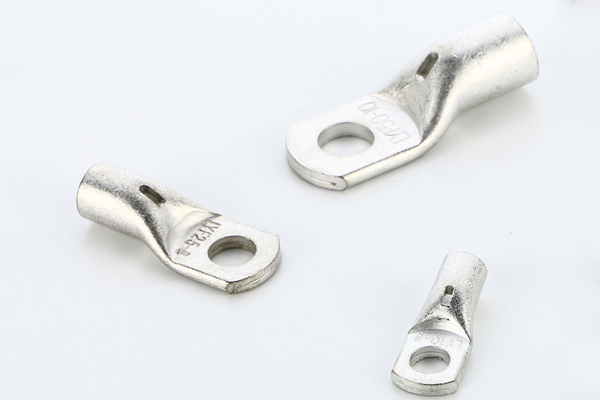

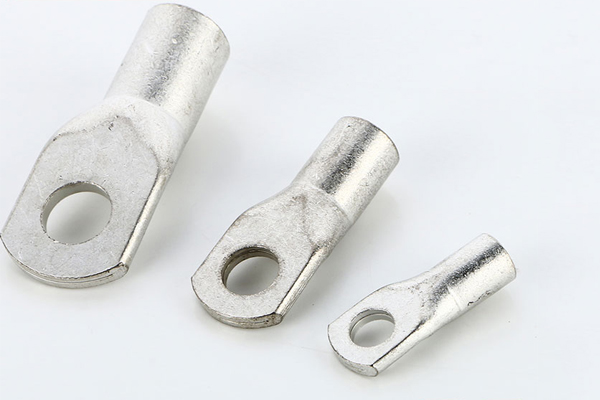

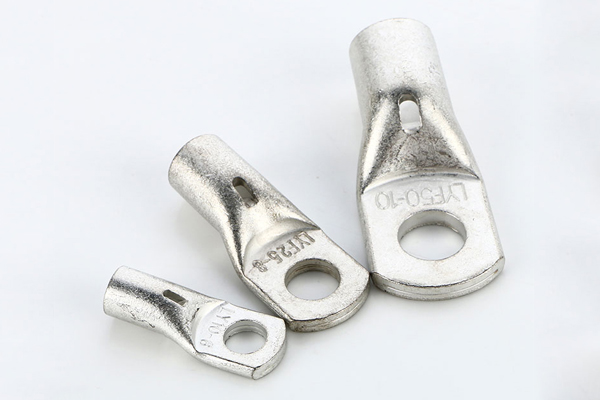

Cable Terminal Lugs Electrical Lugs LYF

Specification:

Material: Copper, Tin-plated copper, Tinned Copper
Working Temperature: -40ºC to 150ºC
Certification: CE, RoHS, UL Approved
The Cable Terminal Lugs are made of the high-quality copper which ensures good conductivity at its user end. The Cable Terminal Lugs are tin plated to provide excellent corrosion resistance.

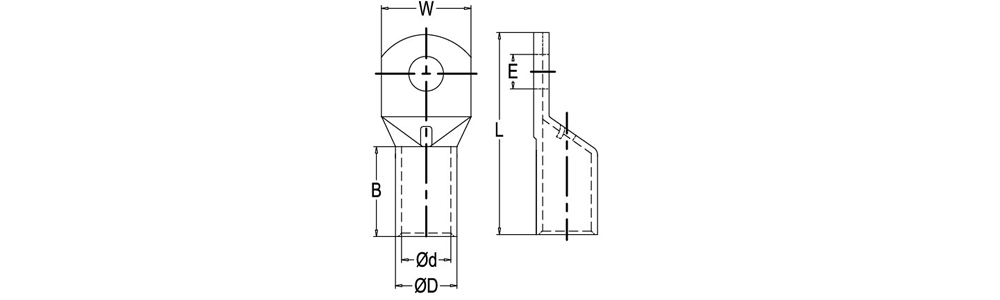

(In mm)

Item No.	E	Dφ	dφ	W	B	L
LYF10-5	5.3	8	5	11.5	9	28
LYF10-6	6.5	8	5	11.5	9	28
LYF10-8	8.4	8	5	13.5	9	32
LYF10-10	10.5	8	5	16	9	34
LYF16-6	6.5	9	6	13	10	33
LYF16-8	8.4	9	6	13	10	33
LYF16-10	10.5	9	6	16	10	38
LYF16-12	13	9	6	22	10	47
LYF25-6	6.5	11	8	16	11	37
LYF25-8	8.4	11	8	16	11	38
LYF25-10	10.5	11	8	17	11	42
LYF25-12	13	11	8	22	11	47
LYF35-6	6.5	13	9	18	14	44
LYF35-8	8.4	13	9	18	14	44
LYF35-10	10.5	13	9	18	14	44
LYF35-12	13	13	9	22	14	52
LYF50-6	6.5	14.5	11	21	17	50
LYF50-8	8.4	14.5	11	21	17	50
LYF50-10	10.5	14.5	11	21	17	50
LYF50-12	13	14.5	11	21	17	53
LYF70-6	6.5	17	13	25	20	55
LYF70-8	8.4	17	13	25	20	55
LYF70-10	10.5	17	13	25	20	55
LYF70-12	13	17	13	25	20	58
LYF70-16	17	17	13	28	20	64
LYF95-8	8.4	20	15	29	23	69
LYF95-10	10.5	20	15	29	23	69
LYF95-12	13	20	15	29	23	69
LYF95-16	17	20	15	29	23	69
LYF120-10	10.5	22	17	32	25	73
LYF120-12	13	22	17	32	25	73
LYF120-16	17	22	17	32	25	73
LYF150-10	10.5	25	19	36	30	80
LYF150-12	13	25	19	36	30	80
LYF150-16	17	25	19	36	30	80
LYF150-20	21	25	19	36	30	87
LYF185-10	10.5	27	21	39	35	86
LYF185-12	13	27	21	39	35	86
LYF185-16	17	27	21	39	35	86
LYF185-20	21	27	21	39	35	93
LYF240-10	10.5	30	24	44	35	95
LYF240-12	13	30	24	44	35	95
LYF240-16	17	30	24	44	35	95
LYF240-20	21	30	24	44	35	95
LYF300-10	10.5	32	26	47	42	114
LYF300-12	13	32	26	47	42	114
LYF300-16	17	32	26	47	42	114
LYF300-20	21	32	26	47	42	114
LYF300-24	26	32	26	47	42	114
LYF400-12	13	36	30	54	48	126
LYF400-16	17	36	30	54	48	126
LYF400-20	21	36	30	54	48	126
LYF400-24	26	36	30	54	48	126
LYF500-20	21	42	33	61	47	134
LYF500-24	26	42	33	61	47	134
LYF630-16	17	53	39	75	68	180
LYF630-20	21	53	39	75	68	180
LYF630-24	26	53	39	75	68	180
