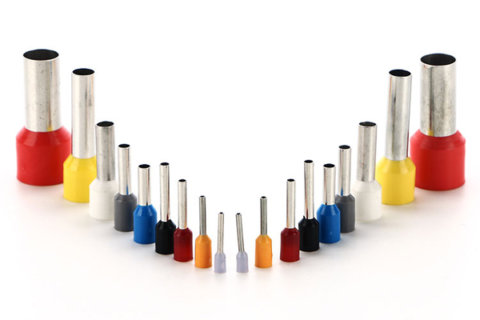

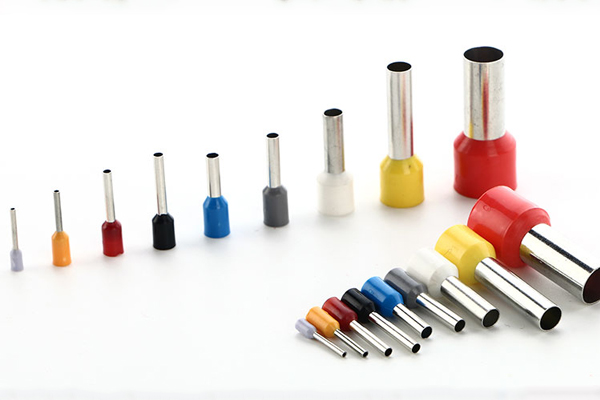

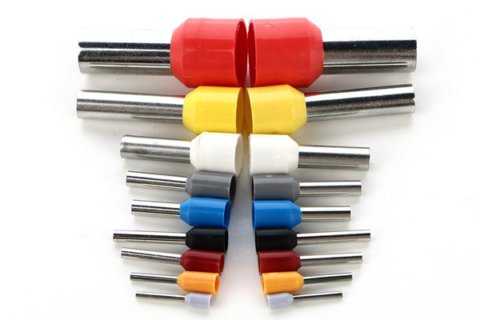

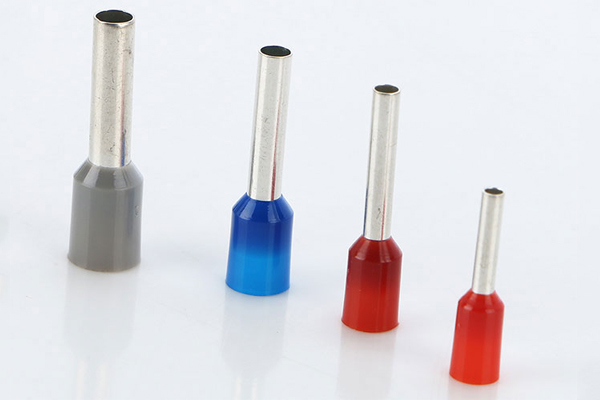

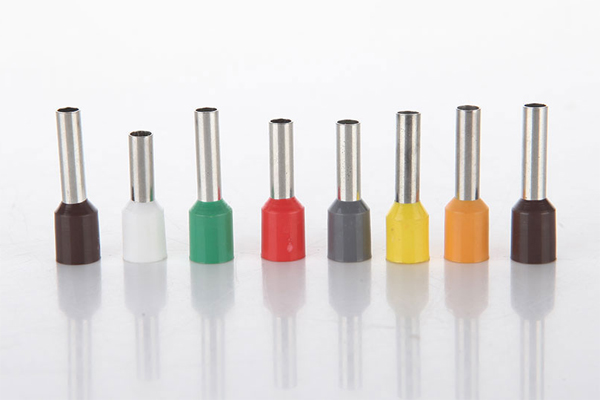

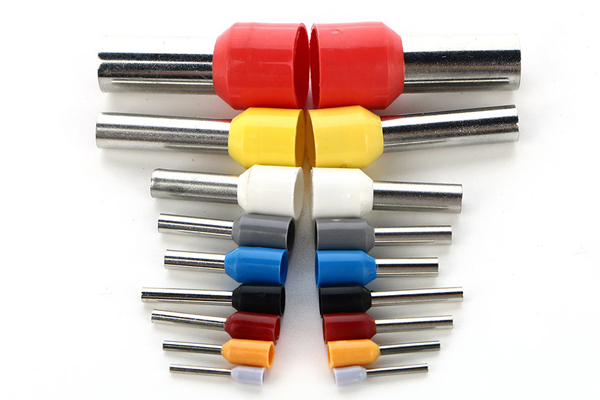

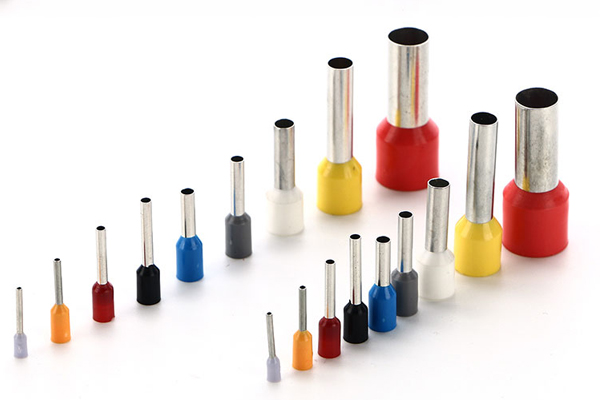

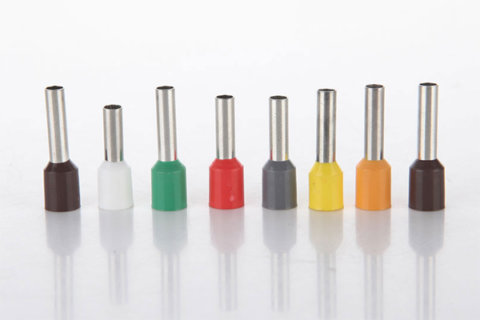

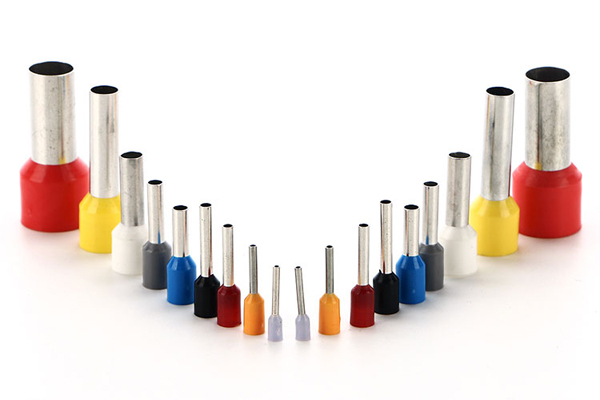

Insulated Cord End Terminals Wire Connector Easy Entry BET
Specification:
Material: Copper, Tin-plated copper
Insulated Material: Vinyl
Certification: CE, RoHS, UL Approved
Limited Working Temperature: -14℃ to 105℃ Ui=300V
Note: Series from 0.25 to 16 installed
Cord End Terminals offer a termination security in high vibration areas. All these Terminals are made of high-quality copper in good conductivity and corrosion resistance.

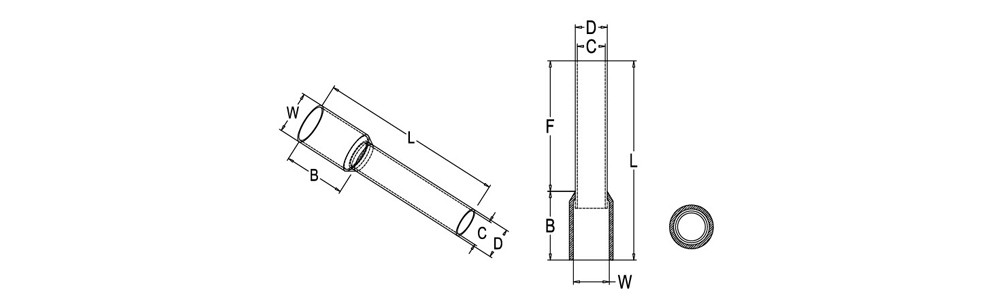

| Item No. | DIMENSION | Insulated square | Color | |||||||
| F | L | W | B | D | C | A.W.G | mm5 | |||
| mm | mm | mm | mm | mm | mm | Germany | France | |||
| BET0.25-6 | 6 | 10.4 | 2.5 | 4 | 1.05 | 0.75 | #26 | 0.25 | Blue | Purple |
| BET0.25-8 | 8 | 12.5 | ||||||||
| BET0.3-6 | 6 | 10.5 | 2.5 | 4.5 | 1.1 | 0.8 | #24 | 0.35 | Blue | Purple |
| BET0.3-8 | 8 | 12.5 | ||||||||
| BET0.5-6 | 6 | 12 | 2.6 | 6 | 1.3 | 1 | #22 | 0.5 | Orange | White |
| BET0.5-8 | 8 | 14 | ||||||||
| BET0.5-10 | 10 | 16 | ||||||||
| BET0.5-12 | 12 | 18 | ||||||||
| BET0.75-6 | 6 | 12.4 | 2.8 | 6.4 | 1.5 | 1.2 | #20 | 0.75 | White | Blue |
| BET0.75-8 | 8 | 14.6 | ||||||||
| BET0.75-10 | 10 | 16.4 | ||||||||
| BET0.75-12 | 12 | 18.4 | ||||||||
| BET1.0-6 | 6 | 12.4 | 3 | 6.4 | 1.7 | 1.4 | #18 | 1 | Yellow | Red |
| BET1.0-8 | 8 | 14.6 | ||||||||
| BET1.0-10 | 10 | 16.4 | ||||||||
| BET1.0-12 | 12 | 18.4 | ||||||||
| BET1.5-8 | 8 | 14.6 | 3.5 | 6.4 | 2 | 1.7 | #16 | 1.5 | Red | Black |
| BET1.5-10 | 10 | 16.4 | ||||||||
| BET1.5-12 | 12 | 18.4 | ||||||||
| BET1.5-18 | 18 | 24.4 | ||||||||
| BET2.5-8 | 8 | 15.2 | 4 | 7 | 2.6 | 2.3 | #14 | 2.5 | Blue | Gray |
| BET2.5-10 | 10 | 17.2 | ||||||||
| BET2.5-12 | 12 | 19 | ||||||||
| BET2.5-18 | 18 | 25 | ||||||||
| BET4.0-9 | 9 | 16.5 | 4.4 | 7.5 | 3.2 | 2.8 | #12 | 4 | Gray | Orange |
| BET4.0-12 | 12 | 19.5 | ||||||||
| BET4.0-18 | 18 | 25.5 | ||||||||
| BET6.0-10 | 10 | 18 | 6.3 | 8 | 3.9 | 3.5 | #10 | 6 | Black | Green |
| BET6.0-12 | 12 | 20 | ||||||||
| BET6.0-18 | 18 | 26 | ||||||||
| BET10-12 | 12 | 21.5 | 7.6 | 9.5 | 4.9 | 4.5 | #7 | 10 | Milk | Brown |
| BET10-18 | 18 | 27.5 | white | |||||||
| BET16-12 | 12 | 22.2 | 8.8 | 10.2 | 6.2 | 5.8 | #5 | 16 | Green | Milk |
| BET16-18 | 18 | 28.2 | white | |||||||
| BET25-16 | 16 | 29 | 11.2 | 13 | 7.9 | 7.5 | #4 | 25 | Brown | Black |
| BET25-22 | 22 | 35 | ||||||||
| BET35-16 | 16 | 30 | 12.7 | 14 | 8.7 | 8.3 | #2 | 35 | Brown | |
| BET35-25 | 25 | 39 | ||||||||
| BET50-20 | 20 | 36 | 15.3 | 16 | 10.9 | 10.3 | #1 | 50 | Olive Green | |
| BET50-25 | 25 | 41 | ||||||||
| BET70-20 | 20 | 37 | 18.5 | 17 | 14.3 | 13.5 | #2/0 | 70 | Yellow | |
| BET70-25 | 25 | 42 | ||||||||
| BET70-27 | 27 | 44 | ||||||||
| BET95-25 | 25 | 44 | 20.3 | 19 | 15.3 | 14.5 | #3/0 | 95 | Red | |
| BET120-27 | 27 | 47.6 | 20 | 21 | 17.5 | 16.5 | #4/4 | 120 | Black | |
| BET120-32 | 32 | 52.6 | 23.4 | 21 | 17.5 | 16.5 | #4/4 | 120 | ||
| BET150-25 | 25 | 50.6 | 16 | 25.6 | 20.6 | 19.6 | 250-300mm | 150 | Yellow | |
| BET150-27 | 27 | 52.6 | 16 | 25.6 | 20.6 | 19.6 | 150 | |||
| BET150-32 | 32 | 57.6 | 16 | 25.6 | 20.6 | 19.6 | 150 | |||
