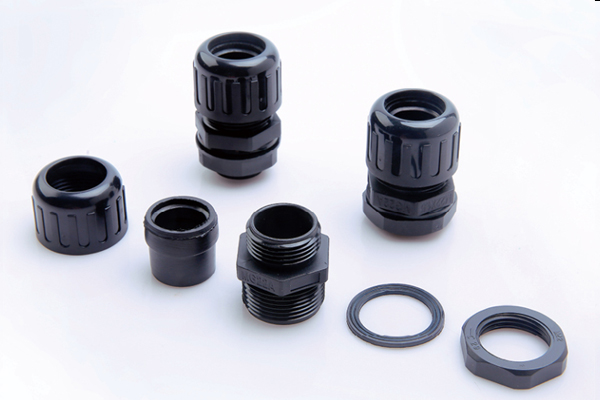

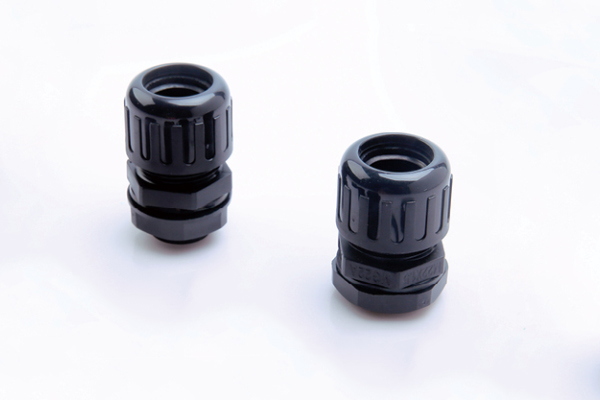

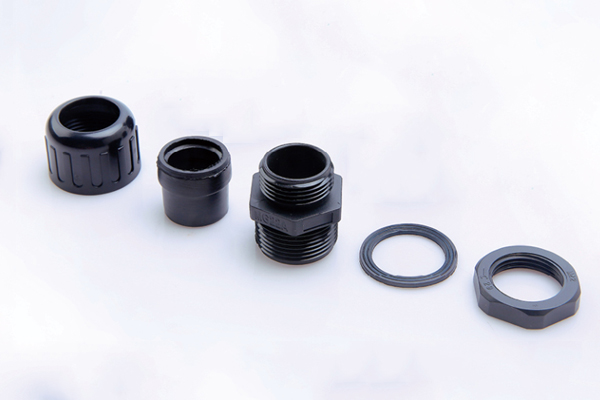

Nylon Corrugated Conduit Fittings Cable Gland Watertight NTM
Specification:
Material: Nylon PA66
Flammability Rating: UL94-2
Certificate: CE, RoHS
Working Temperature:
Static state: -60°C to 100°C, short time to 120°C
Dynamic temperature: -20°C to 80°C, short time to 100°C

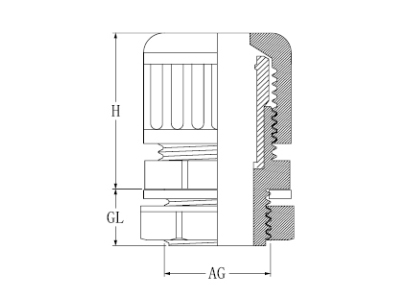

| Item | Conduit size | Thread O.D. AG |
Thread Length GL |
Pack | Item No. |
| M12X1.5 | AD 10.0 | 12 | 9 | 50 | NTM12-10.0 |
| M16X1.5 | AD 13.0 | 16 | 15 | 50 | NTM16-13.0 |
| M16X1.5 | AD 15.8 | 16 | 15 | 50 | NTM16-15.8 |
| M20X1.5 | 20 | 15 | 50 | NTM20-15.8 | |
| M22X1.5 | 22 | 15 | 50 | NTM22-15.8 | |
| M25X1.5 | 25 | 15 | 50 | NTM25-15.8 | |
| M16X1.5 | AD 18.5 | 16 | 15 | 50 | NTM16-18.5 |
| M20X1.5 | 20 | 15 | 50 | NTM20-18.5 | |
| M22X1.5 | 22 | 15 | 50 | NTM22-18.5 | |
| M20X1.5 | AD21.2 | 20 | 15 | 50 | NTM20-21.2 |
| M25X1.5 | 25 | 15 | 50 | NTM25-21.2 | |
| M25X1.5 | AD25.0 | 25 | 15 | 50 | NTM25-25.0 |
| M25X1.5 | AD26.2 | 25 | 15 | 50 | NTM25-26.2 |
| M25X1.5 | AD28.5 | 25 | 15 | 50 | NTM25-28.5 |
| M32X1.5 | AD34.5 | 32 | 15 | 20 | NTM32-34.5 |
| M50X1.5 | AD48 | 50 | 15 | 10 | NTM50-48 |
| M50X1.5 | AD54.5 | 50 | 22 | 10 | NTM50-54.5 |
| M63X1.5 | 63 | 25 | 10 | NTM63-54.5 | |
| M50X1.5 | AD60 | 50 | 22 | 10 | NTM50-60 |
| M63X1.5 | 63 | 25 | 10 | NTM50-60 |
