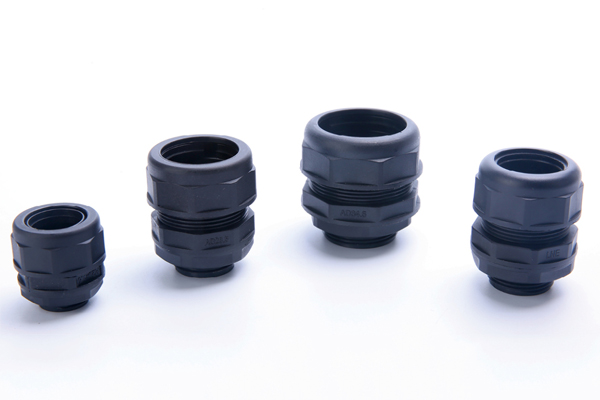

Corrugated Flexible Pipe Fitting NRPG
Specification:
Material: Nylon PA66
Flammability Rating: UL94-2
Certificate: CE, RoHS
Working Temperature:
Static state: -60°C to 100°C, short time to 120°C
Dynamic temperature: -20°C to 80°C, short time to 100°C
(In mm)
| Item No. | Conduit size | Thread | Outer size AG | Inner size AG | Thread Length GL | H |
| NRPG7-10.0 | AD 10.0 | PG7 | 12.5 | 7.0 | 10.0 | 26.0 |
| NRPG9-13.0 | AD 13.8 | PG9 | 15.2 | 10.0 | 10.0 | 26.0 |
| NRPG11-15.8 | AD 15.8 | PG11 | 18.6 | 12.0 | 10.0 | 26.0 |
| NRPG 13.5-18.5 | AD 18.5 | PG13.5 | 20.4 | 14.5 | 10.0 | 27.0 |
| NRPG16-21.2 | AD21.2 | PG16 | 22.5 | 15.0 | 10.0 | 27.0 |
| NRPG21-28.5 | AD28.5 | PG21 | 28.3 | 23.0 | 14.0 | 34.0 |
| NRPG29-34.5 | AD34.5 | PG29 | 37.0 | 29.0 | 14.0 | 34.0 |
| NRPG36-42.5 | AD42.5 | PG36 | 47.0 | 36.0 | 14.0 | 44.0 |
| NRPG48-54.5 | AD54.5 | PG48 | 59.3 | 48.0 | 15.0 | 50.0 |
| NRG1/2-21.2 | AD21.2 | G1/2″ | 20.4 | 15.0 | 10.0 | 27.0 |
| NRG 1/2-25.0 | AD25.0 | G1/2″ | 20.4 | 15 | 15 | 35 |
| NRG3/4-28.5 | AD28.5 | G3/4″ | 26 | 20 | 14 | 34 |
| NRG 1-34.5 | AD34.5 | GV | 36.0 | 26.0 | 14.0 | 34.0 |
