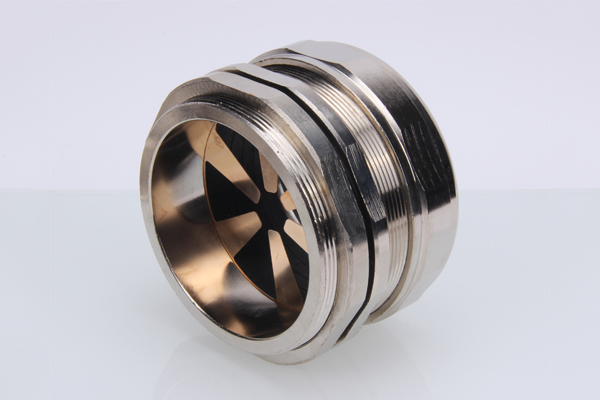

EMC Brass Cable Gland Metal EMC gland
Specification:

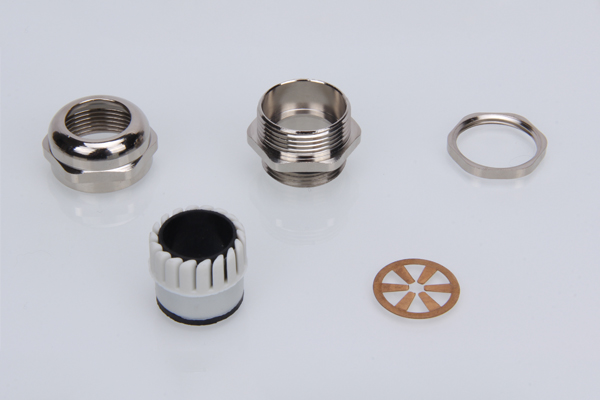

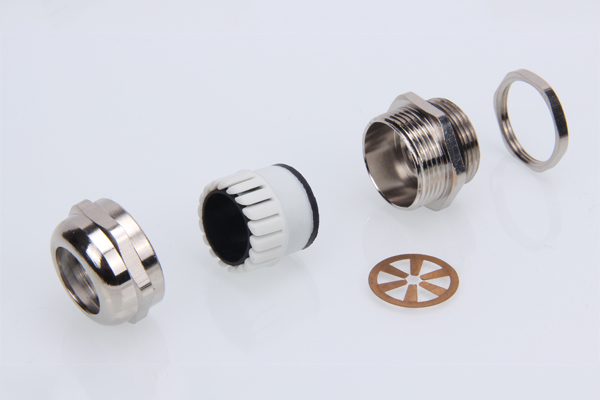

Material:
Nickel-plated brass
Claw: PA66 (Nylon) , UL94-V2
Hermetic seal: NBR, Silicone rubber
O-ring: NBR, Silicone rubber
Protection rating: IP68 -10 bar
Work / Operating Temperature:
Static state: -40 °C to 100 ° C, Short time to 120°C;
Dynamic state: -20 °C to 80° C, Short time to 100°C
Certificate: CE, RoHS, REACH approved

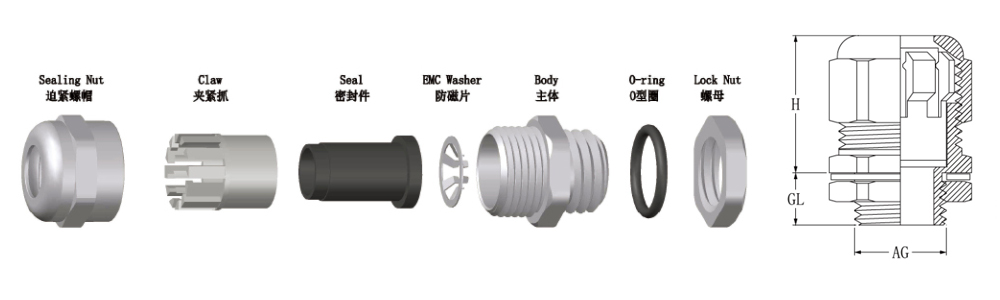

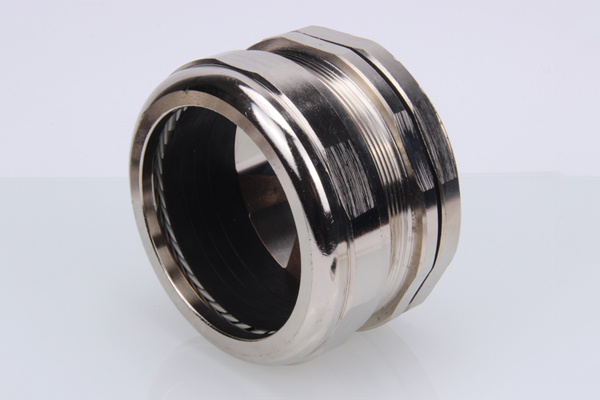

Metal EMC gland with cable sealed rated IP68 (10 bar)
(In mm)
| Item | Cable Range | Thread Length GL |
Joint Length H |
Spanner size | Item No. | |||
| M | PG | G | NPT | |||||
| M12X1.5 | PG7 | G1/4 | NPT1/4 | 3-6.5 | 6.5 | 19 | 14 | EMC-W Series |
| 4-8 | 8 | 19 | 17/14 | |||||
| M16X1.5 | PG9 | 3-6 | 8 | 20 | 18 | |||
| 4-8 | 8 | 20 | 18 | |||||
| 5-10 | 8 | 21 | 20/18 | |||||
| M18X1.5 | PG11 | G3/8 | NPT3/8 | 5-10 | 8 | 21 | 20 | |
| M20X1.5 | PG13.5 | G1/2 | NPT1/2 | 6-12 | 8 | 22 | 22 | |
| 10-14 | 8 | 23 | 24/22 | |||||
| M22X1.5 | PG16 | 10-14 | 8 | 23 | 24 | |||
| M25X1.5 | G3/4 | NPT3/4 | 10-14 | 9 | 25 | 24/27 | ||
| PG21 | 12-16 | 9 | 27 | 27 | ||||
| 13-18 | 9 | 27 | 30/27 | |||||
| M32X1.5 | 15-22 | 10 | 29 | 35 | ||||
| PG29 | G1 | NPT1 | 18-25 | 10 | 31 | 40/35 | ||
| M40X1.5 | 18-25 | 11 | 31 | 40/45 | ||||
| 22-30 | 11 | 35 | 45 | |||||
| PG36 | G1-1/4 | NPT1-1/4 | 25-33 | 11 | 37 | 50/45 | ||
| M50X1.5 | PG42 | G1-1/2 | NPT1-1/2 | 32-38 | 13 | 37 | 57/55 | |
| M63X1.5 | PG48 | G2 | NPT2 | 37-44 | 14 | 38 | 64/68 | |
| 42-52 | 14 | 38 | 78/68 | |||||
| M72X2 | 42-52 | 16 | 42 | 78 | ||||
| M80X2 | 55-62 | 18 | 45 | 88 | ||||
