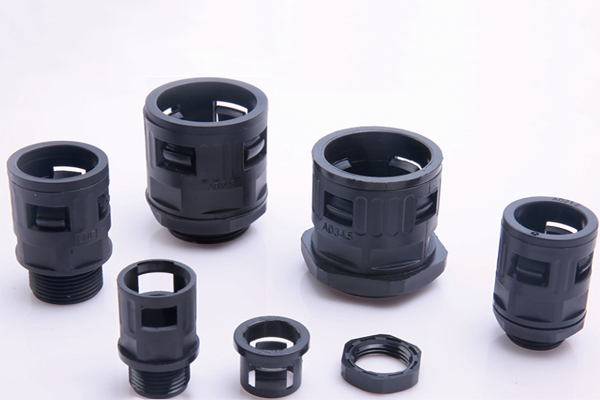

Flexible Pipe Fittings Nylon Cable Gland NKPG
Specification:
Material: Nylon PA66
Flammability Rating: UL94-2
Certificate: CE, RoHS
Working Temperature:
Static state: -60°C to 100°C, short time to 120°C
Dynamic temperature: -20°C to 80°C, short time to 100°C
(In mm)

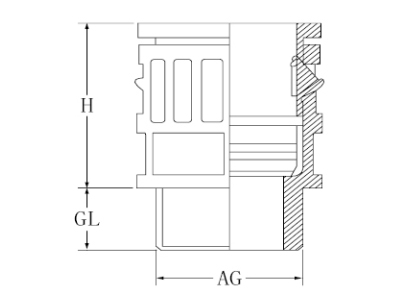

| Item | Conduit size | Thread O.D. AG |
Thread Length GL |
Item No. |
| PG7 | AD 10.0 | 12.4 | 8.5 | NKPG7 -10.0 |
| PG9 | AD 13.0 | 15.2 | 10 | NKPG9 -13.0 |
| PG11 | AD 15.8 | 18.4 | 12.5 | NKPG11 -15.8 |
| PG13.5 | AD 18.5 | 20.4 | 12.5 | NKPG13.5 -18.5 |
| PG16 | AD21.2 | 22.5 | 13 | NKPG16 -21.2 |
| PG21 | AD28.5 | 28.3 | 13 | NKPG21 -28.5 |
| PG29 | AD34.5 | 37 | 14 | NKPG29 -34.5 |
| PG36 | AD42.5 | 47 | 15 | NKPG36 -42.5 |
| PG42 | AD54.5 | 54 | 16 | NKPG42 -54.5 |
| PG48 | 59.3 | 16 | NKPG48 -54.5 | |
| G(PF) 1/4 | AD 10.0 | 13.1 | 8.5 | NKG1/4 -10.0 |
| G(PF) 3/8 | AD 15.8 | 16.6 | 12.5 | NKG3/8-15.8 |
| G(PF) 1/2 | 20.9 | 12.5 | NKG1/2-15.8 | |
| G(PF) 1/2 | AD 18.5 | 20.9 | 12.5 | NKG1/2-18.5 |
| G(PF) 1/2 | AD21.2 | 20.9 | 13 | NKG 1/2-21.2 |
| G(PF) 3/4 | 26.4 | 13 | NKG3/4-21.2 | |
| G(PF) 3/4 | AD28.5 | 26.4 | 13 | NKG3/4-28.5 |
| G(PF) 1 | AD34.5 | 33.2 | 14 | NKG 1-34.5 |
| G(PF) 1 1/4 | AD42.5 | 41.9 | 15 | NKG 1 1/4-42.5 |
| G(PF)1/2 | 48 | 15 | NKG 1 1/2-42.5 | |
| G(PF) 1 1/2 | AD54.5 | 48 | 16 | NKG 1 1/2-54.5 |
| G(PF) 2 | 60 | 16 | NKG2-54.5 |
