| Terminal (Wire connection) |
Classification | Latching lever (Test switch) |
Rated input voltage (V) |
Model | |
|---|---|---|---|---|---|
| Push-In Plus Terminal |
Standard | No | DC | 12 | G2RV-SR500 DC12 |
| 24 | G2RV-SR500 DC24 | ||||
| AC/DC | 24 | G2RV-SR500 AC/DC24 | |||
| 48 | G2RV-SR500 AC/DC48 | ||||
| AC | 100 | G2RV-SR500 AC100 | |||
| 110 | G2RV-SR500 AC110 | ||||
| 200 | G2RV-SR500 AC200 | ||||
| 230 | G2RV-SR500 AC230 | ||||
| Yes | DC | 24 | G2RV-SR501 DC24 | ||
| AC/DC | 24 | G2RV-SR501 AC/DC24 | |||
| Microloads | No | DC | 12 | G2RV-SR500-AP DC12 | |
| 24 | G2RV-SR500-AP DC24 | ||||
| AC/DC | 24 | G2RV-SR500-AP AC/DC24 | |||
| 48 | G2RV-SR500-AP AC/DC48 | ||||
| AC | 100 | G2RV-SR500-AP AC100 | |||
| 110 | G2RV-SR500-AP AC110 | ||||
| 200 | G2RV-SR500-AP AC200 | ||||
| 230 | G2RV-SR500-AP AC230 | ||||
| Screw terminal | Standard | No | DC | 12 | G2RV-SR700 DC12 |
| 24 | G2RV-SR700 DC24 | ||||
| AC/DC | 24 | G2RV-SR700 AC/DC24 | |||
| 48 | G2RV-SR700 AC/DC48 | ||||
| AC | 100 | G2RV-SR700 AC100 | |||
| 110 | G2RV-SR700 AC110 | ||||
| 200 | G2RV-SR700 AC200 | ||||
| 230 | G2RV-SR700 AC230 | ||||
| Yes | DC | 24 | G2RV-SR701 DC24 | ||
| AC/DC | 24 | G2RV-SR701 AC/DC24 | |||
| Microloads | No | DC | 12 | G2RV-SR700-AP DC12 | |
| 24 | G2RV-SR700-AP DC24 | ||||
| AC/DC | 24 | G2RV-SR700-AP AC/DC24 | |||
| 48 | G2RV-SR700-AP AC/DC48 | ||||
| AC | 100 | G2RV-SR700-AP AC100 | |||
| 110 | G2RV-SR700-AP AC110 | ||||
| 200 | G2RV-SR700-AP AC200 | ||||
| 230 | G2RV-SR700-AP AC230 | ||||

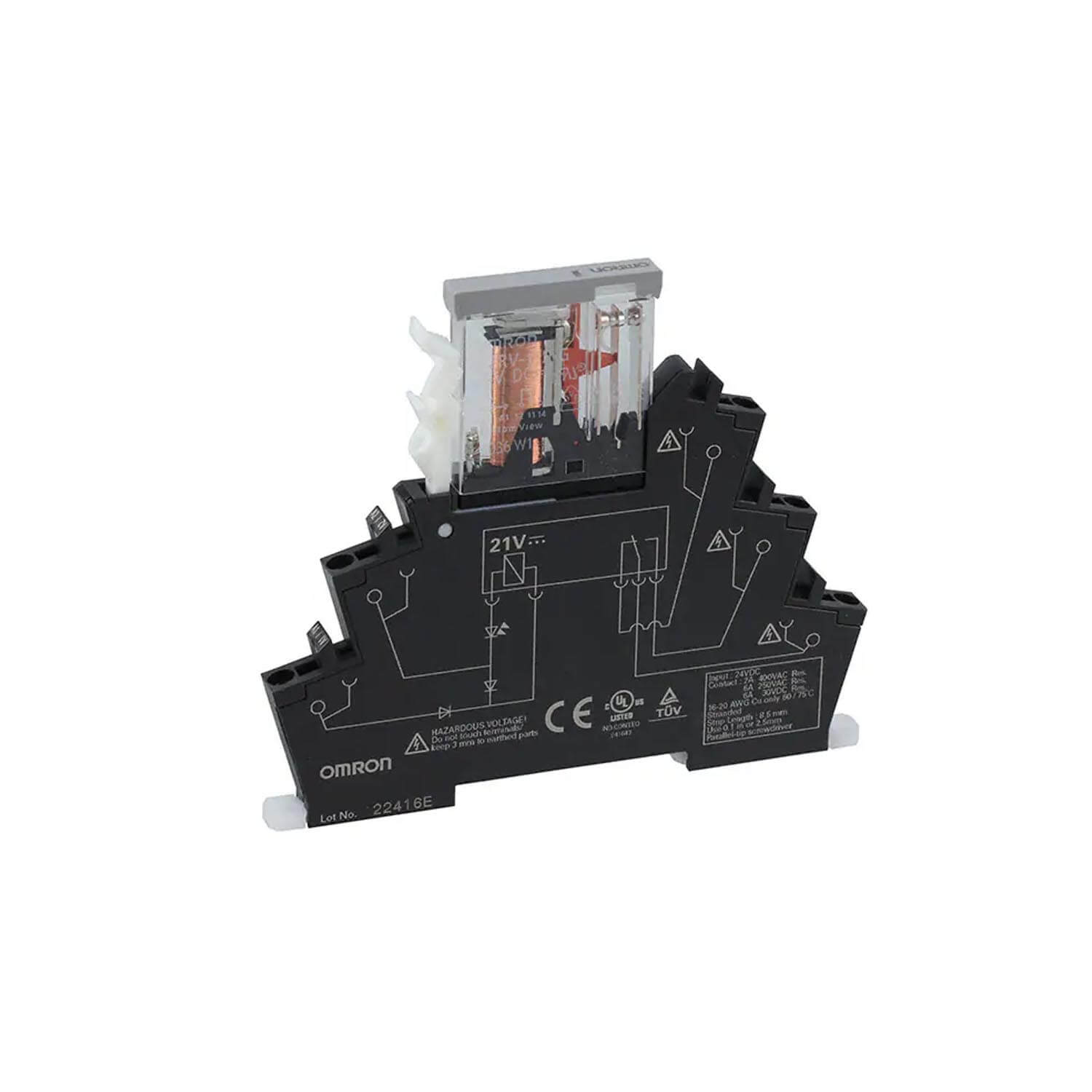

G2RV-SR500 Slim I/O Relay AC/DC
Specification:
Model Number Legend
Ordering Information
Note: Sockets are not sold individually.
Relay for Maintenance
Model Number Legend
| Type | Latching Lever (Test switch) |
Rated coil voltage (V) |
Model | Applicable model | |
|---|---|---|---|---|---|
| Standard | No | DC | 11 | G2RV-1-S-G DC11 | G2RV-SR700/500 DC12V |
| 21 | G2RV-1-S-G DC21 | G2RV-SR700/500 DC24V | |||
| G2RV-SR700/500 AC/DC24V | |||||
| 48 | G2RV-1-S-G DC48 | G2RV-SR700/500 AC/DC48V | |||
| G2RV-SR700/500 AC100V | |||||
| G2RV-SR700/500 AC110V | |||||
| G2RV-SR700/500 AC200V | |||||
| G2RV-SR700/500 AC230V | |||||
| Yes | DC | 21 | G2RV-1-SI-G DC21 | G2RV-SR701/501 DC24V | |
| G2RV-SR701/501 AC/DC24V | |||||
| Microload | No | DC | 11 | G2RV-1-S-AP-G DC11 | G2RV-SR700/500-AP DC12V |
| 21 | G2RV-1-S-AP-G DC21 | G2RV-SR700/500-AP DC24V | |||
| G2RV-SR700/500-AP AC/DC24V | |||||
| 48 | G2RV-1-S-AP-G DC48 | G2RV-SR700/500-AP AC/DC48V | |||
| G2RV-SR700/500-AP AC100V | |||||
| G2RV-SR700/500-AP AC110V | |||||
| G2RV-SR700/500-AP AC200V | |||||
| G2RV-SR700/500-AP AC230V | |||||
