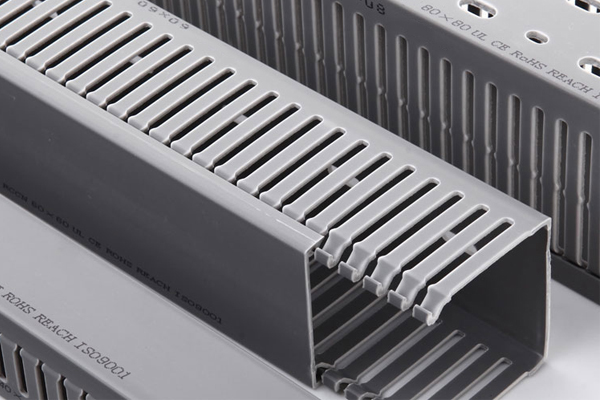

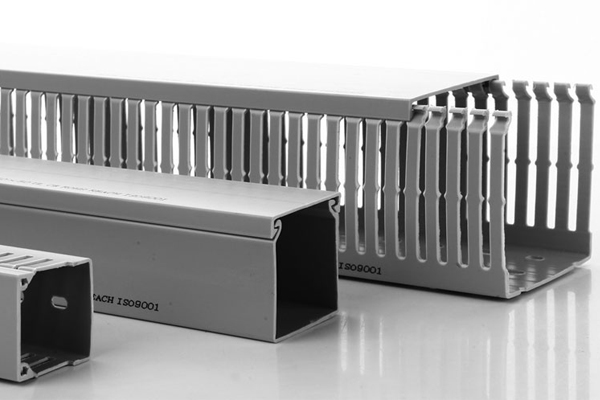

Halogen Free Slotted Wiring Duct, Wire Ducting
Specification:Material: Halogen free PC/ABS
Color Option: Gray, white, blue, black and other special colors
Work Temperature: -40°C to 110°C
Certificates: UL, CE, RoHS, REACH
UL94 Flammability Rating of V-0
Provided with mounting holes
Gray is the common color, other colors need more MOQ
Standard Length:2M/PCS
Wonderful price/performance ratio. The Halogen Free Wiring Duct is made of PC/ABS and in case of fire does not emit any halogenated toxic fumes.
| Item No. | W*H | Hole width | Tooth width | Wire Capacity | Packing/M |
| Q | P | Calculated in terms of 2.0 square feet | |||
| BHVD1616F-HF | 16*16 | 5 | 5 | 3~10pcs | 300M |
| BHVD2516F-HF | 25*16 | 5 | 5 | 3~10pcs | 100M |
| BHVD1520F-HF | 15*20 | 4 | 6 | 8~12pcs | 260M |
| BHVD2020F-HF | 20*20 | 4 | 6 | 10~20pcs | 240M |
| BHVD4020F-HF | 40*20 | 4 | 6 | 12~28pcs | 140M |
| BHVD1525F-HF | 15*25 | 5 | 6 | 5~15pcs | 260M |
| BHVD2025F-HF | 20*20 | 4 | 6 | 5~15pcs | 200M |
| BHVD2525F-HF | 25*25 | 4 | 6 | 10~25pcs | 200M |
| BHVD3025F-HF | 30*25 | 4 | 6 | 12~28pcs | 160M |
| BHVD4025F-HF | 40*25 | 4 | 6 | 12~28pcs | 100M |
| BHVD5025F-HF | 50*25 | 4 | 6 | 20~30pcs | 100M |
| BHVD1530F-HF | 15*30 | 4 | 6 | 20~30pcs | 180M |
| BHVD2030F-HF | 20*30 | 4 | 6 | 20~30pcs | 160M |
| BHVD2530F-HF | 25*30 | 4 | 6 | 25~35pcs | 160M |
| BHVD3030F-HF | 30*30 | 4 | 6 | 25~35pcs | 140M |
| BHVD4030F-HF | 40*30 | 4 | 6 | 30~40pcs | 100M |
| BHVD5030F-HF | 50*30 | 4 | 6 | 35~45pcs | 80M |
| BHVD6030F-HF | 60*30 | 4 | 6 | 40~50pcs | 60M |
| BHVD2233F-HF | 22*33 | 5 | 6 | 30~45pcs | 160M |
| BHVD3333F-HF | 33*33 | 4 | 6 | 35~45pcs | 160M |
| BHVD2035F-HF | 20*35 | 4 | 6 | 30~40pcs | 100M |
| BHVD3535F-HF | 35*35 | 4 | 6 | 35~45pcs | 112M |
| BHVD5035F-HF | 50*35 | 4 | 6 | 40~60pcs | 88M |
| BHVD2040F-HF | 20*40 | 4 | 6 | 16~22pcs | 110M |
| BHVD2540F-HF | 25*40 | 4 | 6 | 20~25pcs | 112M |
| BHVD3540F-HF | 35*40 | 4 | 6 | 50~60pcs | 100M |
| BHVD4040F-HF | 40*40 | 4 | 6 | 60~70pcs | 100M |
| BHVD6040F-HF | 60*40 | 4 | 6 | 100~115pcs | 68M |
| BHVD8040F-HF | 80*40 | 4 | 6 | 120~135pcs | 48M |
| BHVD10040F-HF | 100*40 | 4 | 6 | 120~135pcs | 32M |
| BHVD12040F-HF | 120*40 | 4 | 6 | 140-155pcs | / |
| BHVD2545F-HF | 25*45 | 4 | 6 | 20~25pcs | 104M |
| BHVD3345F-HF | 33*45 | 4 | 6 | 40~55pcs | 108M |
| BHVD4545F-HF | 45*45 | 4 | 6 | 60~70pcs | 72M |
| BHVD6545F-HF | 65*45 | 4 | 6 | 110~120pcs | 56M |
| BHVD2050F-HF | 20*50 | 4 | 6 | 18~28pcs | 100M |
| BHVD2550F-HF | 25*50 | 4 | 6 | 20~30pcs | 100M |
| BHVD3050F-HF | 30*50 | 4 | 6 | 25~40pcs | 84M |
| BHVD3550F-HF | 35*50 | 4 | 6 | 40~60pcs | 80M |
| BHVD4050F-HF | 40*50 | 4 | 6 | 60~70pcs | 68M |
| BHVD4550F-HF | 45*50 | 4 | 6 | 70~80pcs | 60M |
| BHVD5050F-HF | 50*50 | 4 | 6 | 80~90pcs | 50M |
| BHVD5550F-HF | 55*50 | 4 | 6 | 80~90pcs | 48M |
| BHVD6050F-HF | 60*50 | 4 | 6 | 100~120pcs | 48M |
| BHVD7550F-HF | 75*50 | 4 | 6 | 120~140pcs | 40M |
| BHVD8050F-HF | 80*50 | 4 | 6 | 160~180pcs | 40M |
| BHVD10050F-HF | 100*50 | 4 | 6 | 200~250pcs | 26M |
| BHVD12555F-HF | 125*55 | 4 | 6 | 220~270pcs | 20M |
| BHVD2060F-HF | 20*60 | 4 | 6 | 35~45pcs | 100M |
| BHVD2560F-HF | 25*60 | 4 | 6 | 40~50pcs | 100M |
| BHVD3060F-HF | 30*60 | 4 | 6 | 60~80pcs | 80M |
| BHVD3560F-HF | 35*60 | 4 | 6 | 90~105pcs | 78M |
| BHVD4060F-HF | 40*60 | 4 | 6 | 100~115pcs | 60M |
| BHVD4560F-HF | 45*60 | 4 | 6 | 110~125pcs | 30M |
| BHVD5060F-HF | 50*60 | 4 | 6 | 120~135pcs | 60M |
| BHVD6060F-HF | 60*60 | 4 | 6 | 120~135pcs | 48M |
| BHVD8060F-HF | 80*60 | 4 | 6 | 180~210pcs | 36M |
| BHVD10060F-HF | 100*60 | 4 | 6 | 240~290pcs | 28M |
| BHVD11060F-HF | 110*60 | 4 | 6 | 250~300pcs | 48M |
| BHVD12060F-HF | 120*60 | 4 | 6 | 260~320pcs | 48M |
| BHVD15060F-HF | 150*60 | 4 | 6 | 300~360pcs | 16M |
| BHVD2565F-HF | 25*65 | 4 | 6 | 40~50pcs | 88M |
| BHVD3365F-HF | 33*65 | 4 | 6 | 40~70pcs | 80M |
| BHVD4565F-HF | 45*65 | 4 | 6 | 110~120pcs | 52M |
| BHVD6565F-HF | 65*65 | 4 | 6 | 180~200pcs | 44M |
| BHVD7265F-HF | 72*65 | 4 | 6 | 180~230pcs | 42M |
| BHVD2575F-HF | 25*75 | 4 | 6 | 180-210pcs | / |
| BHVD3575F-HF | 35*75 | 4 | 6 | 180-210pcs | / |
| BHVD5075F-HF | 50*75 | 4 | 6 | 180~210pcs | 42M |
| BHVD7575F-HF | 75*75 | 4 | 6 | 200~240pcs | 40M |
| BHVD10075F-HF | 100*75 | 4 | 6 | 240~280pcs | 24M |
| BHVD2580F-HF | 25*80 | 4 | 6 | 100~120pcs | 72M |
| BHVD3080F-HF | 30*80 | 4 | 6 | 110~125pcs | 56M |
| BHVD3580F-HF | 35*80 | 4 | 6 | 110~130pcs | 56M |
| BHVD4080F-HF | 40*80 | 4 | 6 | 140~160pcs | 48M |
| BHVD4580F-HF | 45*80 | 4 | 6 | 140~160pcs | 40M |
| BHVD5080F-HF | 50*80 | 4 | 6 | 160~180pcs | 40M |
| BHVD5580F-HF | 55*80 | 4 | 6 | 160~180pcs | 32M |
| BHVD6080F-HF | 60*80 | 4 | 6 | 180~210pcs | 32M |
| BHVD8080F-HF | 80*80 | 4 | 6 | 240~290pcs | 24M |
| BHVD10080F-HF | 100*80 | 4 | 6 | 260~350pcs | 24M |
| BHVD12080F-HF | 120*80 | 4 | 6 | 280~380pcs | 16M |
| BHVD14080F-HF | 140*80 | 4 | 6 | 350~450pcs | 16M |
| BHVD16080F-HF | 160*80 | 4 | 6 | 50-550pcs | / |
| BHVD25100F-HF | 25*100 | 4 | 6 | 110~160pcs | 60M |
| BHVD33100F-HF | 33*100 | 4 | 6 | 130~175pcs | 44M |
| BHVD40100F-HF | 40*100 | 4 | 6 | 130~175pcs | 40M |
| BHVD50100F-HF | 50*100 | 4 | 6 | 220~250pcs | 40M |
| BHVD60100F-HF | 60*100 | 4 | 6 | 240~290pcs | 32M |
| BHVD70100F-HF | 70*100 | 4 | 6 | 250~310pcs | 24M |
| BHVD75100F-HF | 75*100 | 4 | 6 | 260~350pcs | 24M |
| BHVD80100F-HF | 80*100 | 4 | 6 | 260~350pcs | 24M |
| BHVD100100F-HF | 100*100 | 4 | 6 | 300~400pcs | 24M |
| BHVD120100F-HF | 120*100 | 4 | 6 | 350~450pcs | 16M |
| BHVD150100F-HF | 150*100 | 4 | 6 | 400~650pcs | 16M |
| BHVD150130F-HF | 150*130 | 4 | 6 | 400~650pcs | 16M |
| BHVD160100F-HF | 160*100 | 4 | 6 | 500-750pcs | / |
| BHVD100130F-HF | 100*130 | 4 | 6 | 350-450pcs | / |
| BHVD200100F-HF | 200*100 | 4 | 6 | 600~800pcs | 16M |
| BHVD200150F-HF | 200*150 | 4 | 6 | 900-1200pcs | 16M |
| BHVD200200F-HF | 200*200 | 4 | 6 | 1200-1600pcs | 16M |
