Halogen Free Slotted Wiring Duct BHVDT-HF

Category:

Halogen Free Slotted Wire Raceway, Wiring Duct

Specification:

Material: Halogen free PC/ABS

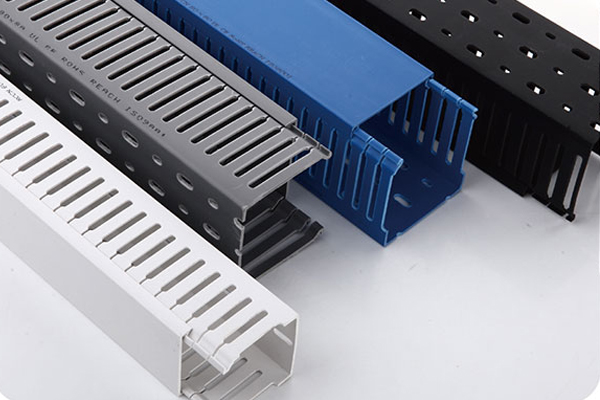

Color Option: Gray, white, blue, black and other special colors
Work Temperature: -40°C to 110°C
Certificates: UL, CE, RoHS, REACH
UL94 Flammability Rating of V-0
Provided with mounting holes
Gray is the common color, other colors need more MOQ
Standard Length:2M/PCS
The Halogen Free Wiring Duct is made of PC/ABS and in case of fire does not emit any halogenated toxic fumes.

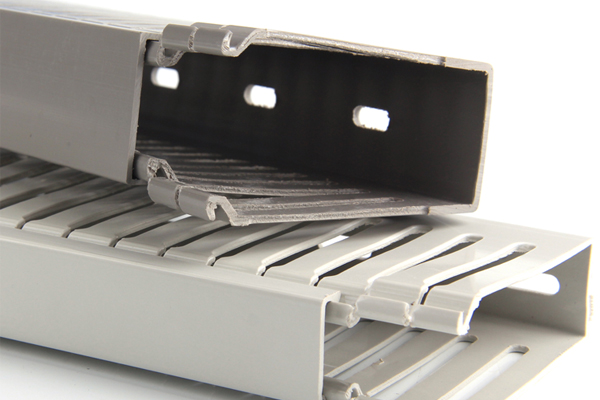

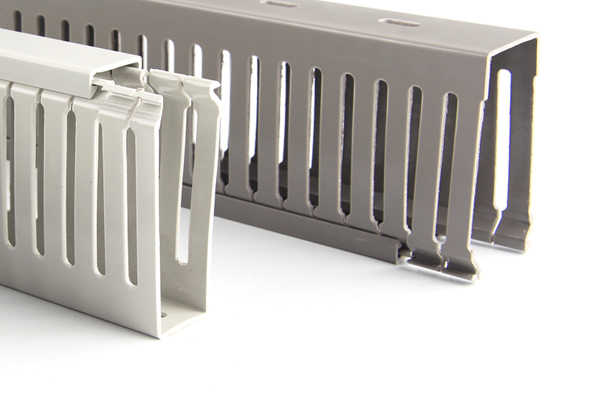

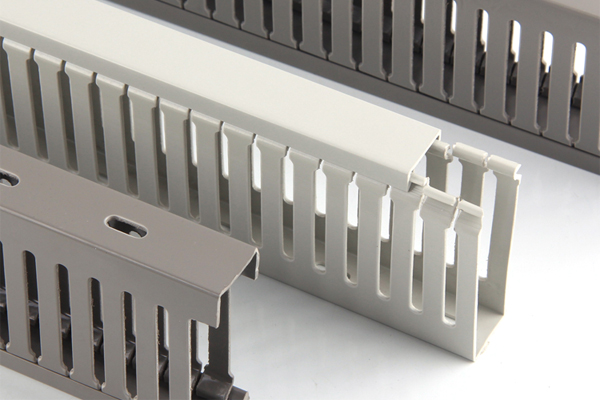

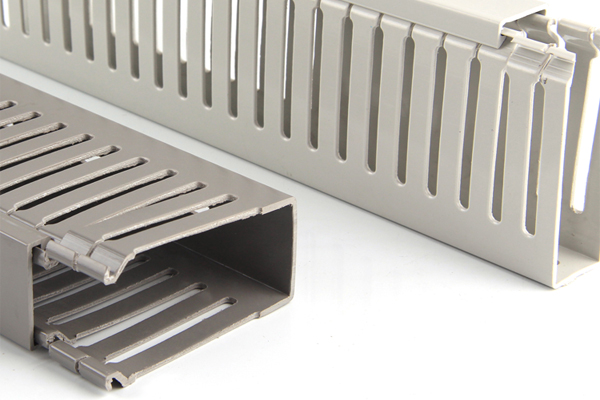

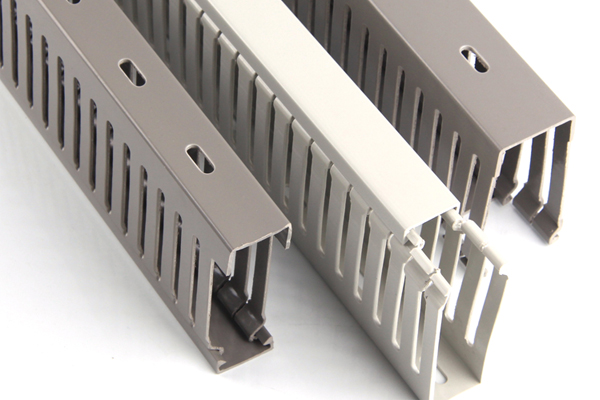

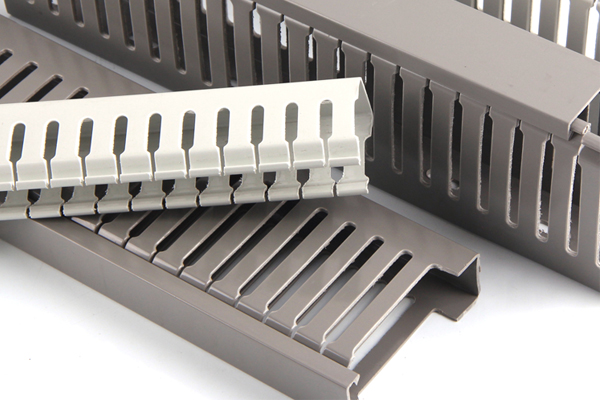

Slotted Cable Ducting BHVDT

Item No. W*H Hole width Tooth width Wire Capacity Packing/M
Q P Calculated in terms of 2.0 square feet
BHVD1616T-HF 16*16 5 8 3-10pcs 300M
BHVD2516T-HF 25*16 5 8 8-12pcs 100M
BHVD1520T-HF 15*20 5 8 8-12pcs 260M
BHVD2020T-HF 20*20 5 8 10-20pcs 240M
BHVD4020T-HF 40*20 5 8 15-30pcs 140M
BHVD1525T-HF 15*25 5 8 5-15pcs 260M
*BHVD2025T-HF 20*25 5 8 5~15pcs 200M
*BHVD2525T-HF 25*25 5 8 10~pcs 200M
*BHVD3025T-HF 30*25 5 8 12~28pcs 160M
BHVD4025T-HF 40*25 5 8 20-35pcs 100M
BHVD5025T-HF 50*25 5 8 12-28PCS 100M
BHVD1530T-HF 15*30 5 8 8-15pcs 180M
BHVD2030T-HF 20*30 5 8 25-35pcs 160M
BHVD2530T-HF 25*30 5 8 25~35pcs 160M
BHVD3030T-HF 3030 5 8 25~35pcs 140M
BHVD4030T-HF 40*30 5 8 30~40pcs 100M
BHVD5030T-HF 50*30 5 8 40-50pcs 80M
BHVD6030T-HF 60*30 5 8 50-60pcs 60M
BHVD2233T-HF 22*33 5 8 25-35pcs 160M
BHVD3333T-HF 33*33 5 8 35-45pcs 160M
BHVD2035T-HF 20*35 5 8 30-40pcs 100M
BHVD3535T-HF 35*35 5 8 35-45pcs 112M
BHVD5035T-HF 50*35 5 8 40-60pcs 88M
BHVD2040T-HF 2040 5 8 16-22pcs 110M
BHVD2540T-HF 25*40 5 8 20~25pcs 112M
BHVD3540T-HF 35*40 5 8 35-45pcs 100M
BHVD4040T-HF 40*40 5 8 60~70pcs 100M
BHVD6040T-HF 60*40 5 8 100~115pcs 68M
BHVD8040T-HF 80*40 5 8 120~135pcs 48M
BHVD10040T-HF 100*40 5 8 120~135pcs 32M
BHVD12040T-HF 120*40 5 8 140-155pcs /
BHVD2545T-HF 25*45 5 8 20~25pcs 104M
BHVD3345T-HF 33*45 5 8 40~55pcs 108M
BHVD4545T-HF 45*45 5 8 60~70pcs 72M
BHVD6545T-HF 65*45 5 8 110~120pcs 56M
BHVD2050T-HF 20*50 5 8 18-28pcs 100M
BHVD2550T-HF 25*50 5 8 20~30pcs 100M
BHVD3050T-HF 30*50 5 8 25~40pcs 84M
BHVD3550T-HF 35*50 5 8 40~60pcs 80M
BHVD4050T-HF 40*50 5 8 60~70pcs 68M
BHVD4550T-HF 45*50 5 8 70~80pcs 60M
BHVD5050T-HF 50*50 5 8 80~90pcs 60M
BHVD5550T-HF 50*50 5 8 80~90pcs 48M
BHVD6050T-HF 60*50 5 8 100~120pcs 48M
BHVD7550T-HF 75*50 5 8 150-170pcs 40M
BHVD8050T-HF 80*50 5 8 160~180pcs 40M
BHVD10050T-HF 100*50 5 8 200~250pcs 26M
BHVD12555T-HF 125*55 5 8 220-270pcs 20M
*BHVD2060T-HF 20*60 5 8 35~45pcs 100M
BHVD2560T-HF 25*60 5 8 40~50pcs 100M
BHVD3060T-HF 30*60 5 8 60~80pcs 80M
BHVD3560T-HF 35*60 5 8 90-105pcs 78M
BHVD4060T-HF 40*60 5 8 100~115pcs 60M
BHVD4560T-HF 45*60 5 8 110~125pcs 30M
BHVD5060T-HF 50*60 5 8 120~135pcs 60M
BHVD6060T-HF 60*60 5 8 120~135pcs 48M
BHVD8060T-HF 80*60 5 8 180~210pcs 36M
BHVD10060T-HF 100*60 5 8 240~290pcs 28M
BHVD11060T-HF 110*60 5 8 250~300pcs 48M
*BHVD12060T-HF 120*60 5 8 260~320pcs 48M
BHVD2565T-HF 25*65 5 8 40~50pcs 96M
BHVD3365T-HF 33*65 5 8 40~70pcs 80M
BHVD4565T-HF 45*65 5 8 110~120pcs 52M
BHVD6565T-HF 65*65 5 8 180~200pcs 44M
BHVD7265T-HF 72*65 5 8 180-230pcs 42M
BHVD2575T-HF 25*75 5 8 180~210pcs /
BHVD5075T-HF 50*75 5 8 180-210pcs 42M
BHVD7575T-HF 75*75 5 8 200-240pcs 40M
BHVD10075T-HF 100*75 5 8 250-290pcs 24M
BHVD2580T-HF 25*80 5 8 100~120pcs 72M
BHVD3080T-HF 30*80 5 8 110~125pcs 56M
BHVD3580T-HF 35*80 5 8 110~130pcs 56M
BHVD4080T-HF 40*80 5 8 140~160pcs 48M
BHVD4580T-HF 45*80 5 8 140~160pcs 40M
BHVD5080T-HF 50*80 5 8 160~180pcs 40M
BHVD5580T-HF 55*80 5 8 160~180pcs 32M
BHVD6080T-HF 60*80 5 8 180~210pcs 32M
BHVD8080T-HF 80*80 5 8 240~290pcs 24M
BHVD10080T-HF 100*80 5 8 260~350pcs 24M
BHVD12080T-HF 120*80 5 8 280~380pcs 16M
BHVD14080T-HF 140*80 5 8 350~450pcs 16M
*BHVD25100T-HF 25*100 5 8 110~160 pcs 60M
BHVD33100T-HF 33*100 5 8 130~165 pcs 44M
BHVD40100T-HF 40*100 5 8 130~175 pcs 40M
BHVD50100T-HF 50*100 5 8 220~250 pcs 40M
BHVD60100T-HF 60*100 5 8 240~290 pcs 32M
BHVD70100T-HF 70*100 5 8 250~340 pcs 24M
BHVD75100T-HF 75*100 5 8 260~350 pcs 24M
BHVD80100T-HF 80*100 5 8 260~350 pcs 24M
BHVD100100T-HF 100*100 5 8 300-400pcs 24M
BHVD120100T-HF 120*100 5 8 350-450pcs 16M
BHVD150100T-HF 150*100 5 8 400-650pcs 16M
BHVD150130T-HF 150*130 5 8 400-650pcs 16M
BHVD100130T-HF 150*130 5 8 350-450pcs /
BHVD200100T-HF 200*100 5 8 600-800pcs 16M
BHVD200150T-HF 200*150 5 8 900-1200pcs /
