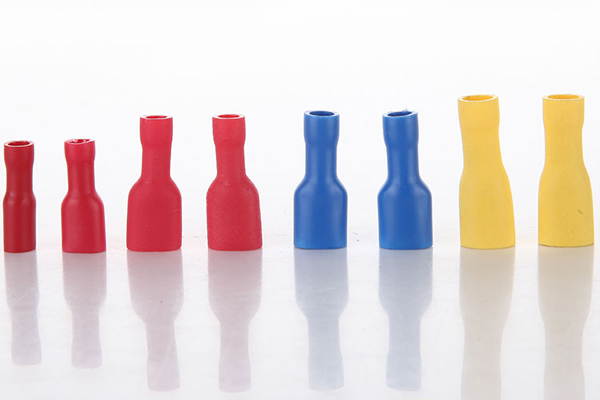

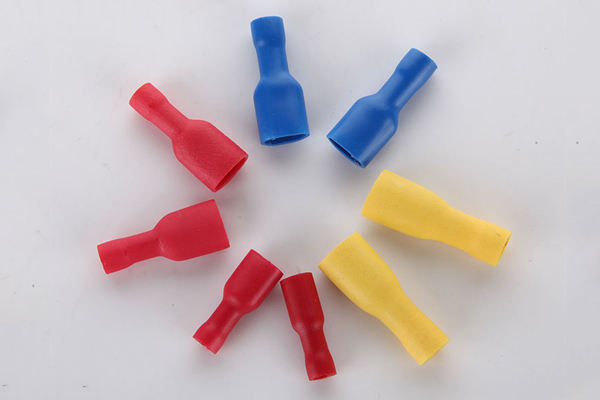

Insulated Female Connector Electrical Terminal BPV
Specification:
Material: Copper, Tin-plated copper
Insulated Material: Vinyl
Certification: CE, RoHS, UL Approved
Working Temperature: -40℃ to 85℃ Heat-resistance
Insulated Female Connector offers a termination security in high vibration areas. All these Terminals are made of high-quality copper in good conductivity and corrosion resistance.
| Insulated square：0.5～1.5mm²(AWG22～16)Max. current: lmax=10A | |||||||

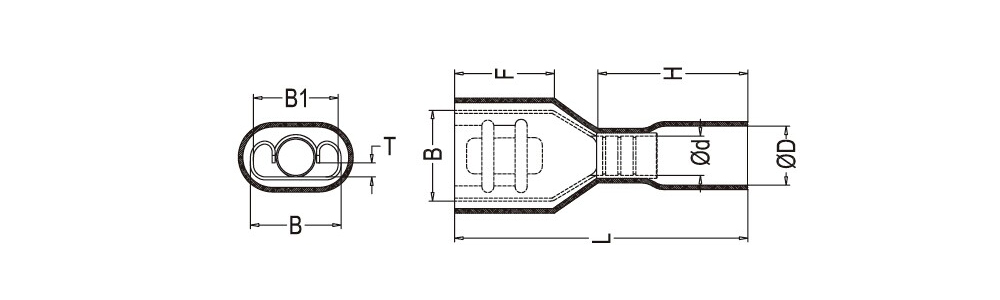

| Item No. | NEMA-TAB T*B1 | DIMENSION | |||||
| B | Dφ | dφ | L | F | H | ||
| mm | mm | mm | mm | mm | mm | mm | |
| BPV1.25-187(5) | 0.5×4.75 | 5.6 | 3.8 | 1.7 | 20 | 6 | 10 |
| BPV1.25-187(8) | 0.8×4.75 | 5.6 | 3.8 | 1.7 | 20 | 6 | 10 |
| BPV1.25-250 | 0.8×6.35 | 7.4 | 3.8 | 1.7 | 23.2 | 7.8 | 10 |
| Insulated square：1.5～2.5mm²(AWG16～14)Max. current: lmax=15A | |||||||
| Item No. | NEMA-TAB | DIMENSION | |||||
| T*B1 | B | Dφ | dφ | L | F | H | |
| mm | mm | mm | mm | mm | mm | mm | |
| BPV2-187(5) | 0.5×4.75 | 5.6 | 4 | 2.3 | 20 | 6 | 10 |
| BPV2-187(8) | 0.8×4.75 | 5.6 | 4 | 2.3 | 20 | 6 | 10 |
| BPV2-250 | 0.8×6.35 | 7.4 | 4 | 2.3 | 23.5 | 7.8 | 10 |
| Insulated square：4～6mm²(AWG12～10)Max. current: lmax=24A | |||||||
| Item No. | NEMA-TAB | DIMENSION | |||||
| T*B1 | B | Dφ | dφ | L | F | H | |
| mm | mm | mm | mm | mm | mm | mm | |
| BPV5.5-250 | 0.8×6.35 | 7.4 | 5.7 | 3.4 | 23.5 | 7.8 | 13 |
