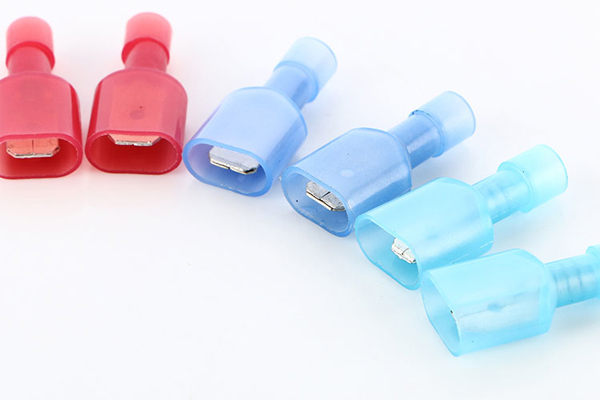

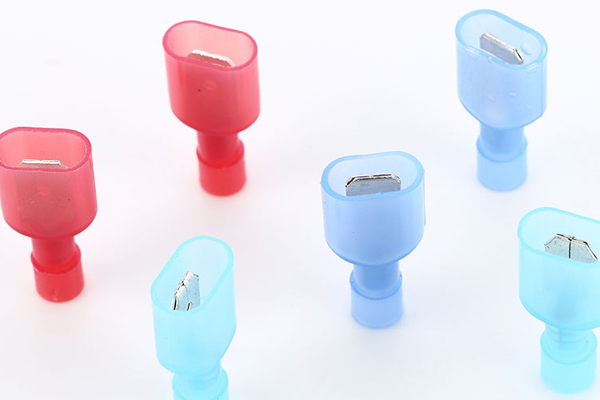

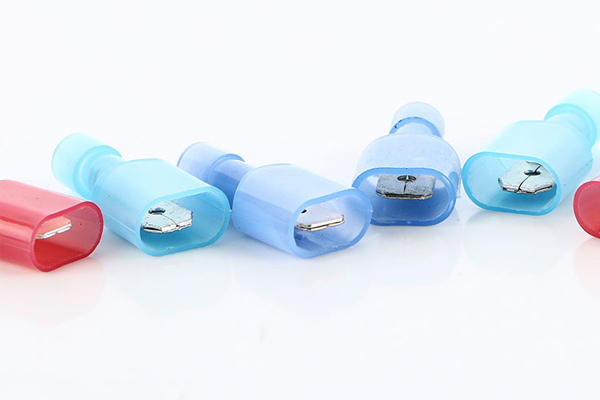

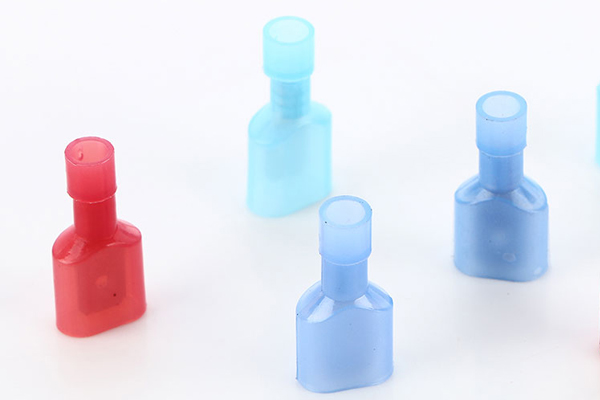

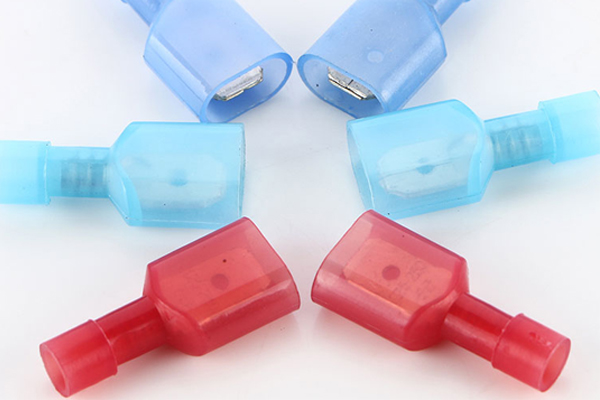

Insulated Male Terminals Electrical Terminal Wire Connector PNB
Specification:
Material: Copper, Tin-plated copper
Insulated Material: Nylon, PA66
Certification: CE, RoHS, UL Approved
Working Temperature: -40℃ to 85℃ Heat-resistance
Insulated Male Terminals offer a termination security in high vibration areas. All these Terminals are made of high-quality copper in good conductivity and corrosion resistance.
| Insulated square：0.5～1.5mm²(AWG22～16) Max. current: lmax＝10A | |||||||
| Item No. | NEMA TAB T×W mm |
DIMENSION | Color | ||||
| W mm |
F mm |
E mm |

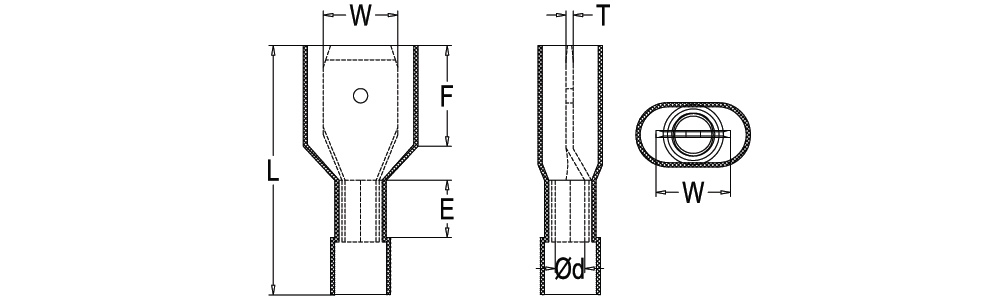

dφ mm |
L mm |
|||
| PN 1.25-250B | 0.8×6.35 | 6.35 | 9 | 5 | 1.7 | 24 | Red |
| Insulated square：1.5～2.5mm²(AWG16～14) Max. current: lmax＝15A | |||||||
| Item No. | NEMA TAB T×W mm |
DIMENSION | Color | ||||
| W mm |
F mm |
E mm |
dφ mm |
L mm |
|||
| PN 2-250B | 0.8×6.35 | 6.4 | 9 | 5 | 2.3 | 24 | Blue |
| Insulated square：4～6mm²(AWG12～10) Max. current: lmax＝24A | |||||||
| Item No. | NEMA TAB T×W mm |
DIMENSION | Color | ||||
| W mm |
F mm |
E mm |
dφ mm |
L mm |
|||
| PN5.5-250B | 0.8×6.35 | 6.4 | 9 | 6 | 3.4 | 25 | Yellow |
