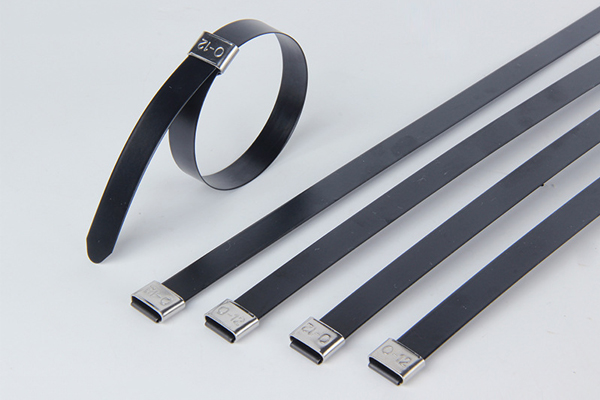

Metal Zip Ties PVC Coated Stainless Steel Cable Ties O Type BZ-OP

Metal Zip Ties PVC Coated Stainless Steel Cable Ties O Type BZ-OP

Specification:

Material: Stainless Steel Grade 304 or 316
Coating: PVC
Working Temperature: -40℃ to 85℃
Description: Black Band with Metallic Buckle
Flammability: Fireproof
UV-resistant, Halogen Free, Non-toxic
Features: Self-locking, for installing easier and faster. Smooth rounded edges, for safe handling. Metal Zip Ties also available with coating for customized applications.

Item No. Width Length Thickness Max.Bundle Dia. Min.Bundle Dia. Min. Tensile Strength
mm inch mm inch mm inch mm inch mm inch N lbs
BZ-OP 12×150 12 0.47 150 5.91 0.45 0.018 32 1.25 25.4 1.00 220 50
BZ-OP 12×200 200 7.87 48 1.88
BZ-OP 12×250 250 9.84 64 2.51
BZ-OP 12×300 300 11.81 80 3.13
BZ-OP 12×350 350 13.78 96 3.76
BZ-OP 12×400 400 15.75 111 4.39
BZ-OP 12×500 500 19.69 143 5.64
BZ-OP 12×600 600 23.62 175 6.90
BZ-OP 12×700 700 27.56 207 8.15
BZ-OP 12×800 800 31.50 239 9.40
BZ-OP 15×150 15 0.59 150 5.91 0.45 0.018 32 1.26 25.4 1.00 265 60
BZ-OP 15×200 200 7.87 48 1.88
BZ-OP 15×250 250 9.84 64 2.51
BZ-OP 15×300 300 11.81 80 3.13
BZ-OP 15×350 350 13.78 96 3.76
BZ-OP 15×400 400 15.75 111 4.39
BZ-OP 15×500 500 19.69 143 5.64
BZ-OP 15×600 600 23.62 175 6.90
BZ-OP 15×700 700 27.56 207 8.15
BZ-OP 15×800 800 31.50 239 9.40
BZ-OP 15×1000 1000 39.37 303 11.91
