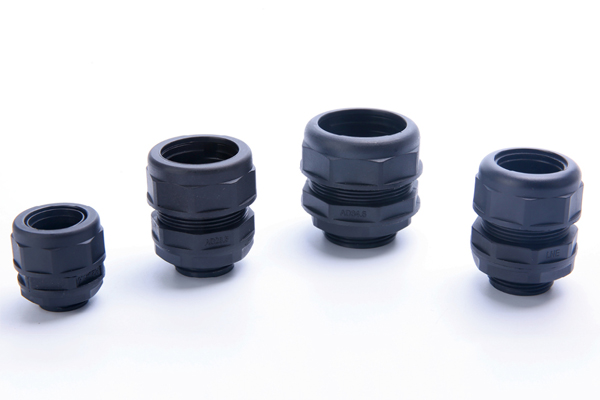

Nylon Flexible Pipe Fitting NRM
Specification:
Material: Nylon PA66
Flammability Rating: UL94-2
Certificate: CE, RoHS
Working Temperature:
Static state: -60°C to 100°C, short time to 120°C
Dynamic temperature: -20°C to 80°C, short time to 100°C
(In mm)

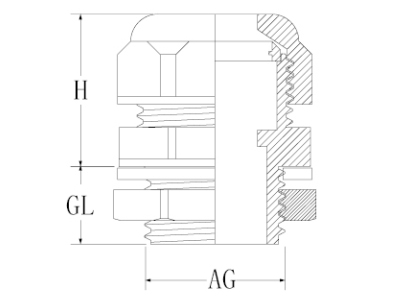

| Item No. | Conduit size | Thread | Outer size AG |
Inner size AG |
Thread Length
GL |
H |
| NRM12-10.0 | AD 10.0 | M12x1.5 | 12.0 | 7.0 | 10.0 | 26.0 |
| NRM12-13.0 | AD 13.0 | M12x1.5 | 12.0 | 7.0 | 10.0 | 26.0 |
| NR-M16-10.0 | AD 10.0 | M16x1.5 | 16.0 | 7.0 | 10.0 | 26.0 |
| NRM16-13.0 | AD 13.0 | M16x1.5 | 16.0 | 10.0 | 10.0 | 26.0 |
| NRM16-15.8 | AD 15.8 | M16x1.5 | 16.0 | 11.0 | 10.0 | 26.0 |
| NRM18-13.0 | AD 13.0 | M18x1.5 | 18.0 | 10.0 | 10.0 | 26.0 |
| NRM18-15.8 | AD 15.8 | M18x1.5 | 18.0 | 12.0 | 10.0 | 26.0 |
| NRM20-15.8 | AD 15.8 | M20x1.5 | 20.0 | 12.0 | 10.0 | 26.0 |
| NRM20-18.5 | AD 18.5 | M20x1.5 | 20.0 | 14.5 | 10.0 | 27.0 |
| NRM20-21.2 | AD21.2 | M20x1.5 | 20.0 | 16.0 | 10.0 | 27.0 |
| NRM22-21.2 | AD21.2 | M22x1.5 | 22.0 | 17.0 | 10.0 | 27.0 |
| NRM24-21.2 | AD21.2 | M24x1.5 | 24.0 | 18.0 | 10.0 | 27.0 |
| NRM25-21.2 | AD21.2 | M25x1.5 | 25.0 | 18.0 | 10.0 | 27.0 |
| NRM25-25.0 | AD25.0 | M25x1.5 | 25.0 | 20.0 | 15.0 | 35.0 |
| NRM25-28.5 | AD28.5 | M25x1.5 | 25.0 | 21.0 | 14.0 | 35.0 |
| NRM27-28.5 | AD28.5 | M27x1.5 | 27.0 | 21.0 | 14.0 | 35.0 |
| NRM30-28.5 | AD28.5 | M30x1.5 | 30.0 | 23.0 | 14.0 | 35.0 |
| NRM32-28.5 | AD28.5 | M32x1.5 | 32.0 | 23.0 | 14.0 | 35.0 |
| NRM32-34.5 | AD34.5 | M32x1.5 | 32.0 | 26.0 | 14.0 | 35.0 |
| NRM36-34.5 | AD34.5 | M36x1.5 | 36.0 | 29.0 | 14.0 | 35.0 |
| NRM40-34.5 | AD34.5 | M40x1.5 | 40.0 | 35.0 | 15.0 | 40.0 |
| NRM40-42.5 | AD42.5 | M40x1.5 | 40.0 | 34.0 | 14.0 | 44.0 |
| NRM48-42.5 | AD42.5 | M48x1.5 | 48.0 | 36.0 | 14.0 | 44.0 |
| NRM50-54.5 | AD54.5 | M50x1.5 | 50.0 | 43.0 | 15.0 | 20.0 |
| NRM63-54.5 | AD54.5 | M63x1.5 | 63.0 | 48.0 | 15.0 | 20.0 |
