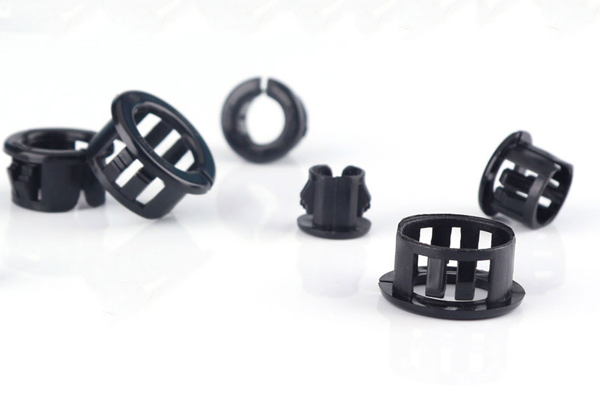

Nylon Snap Bushings Wire Bushing OSB

Category:

Nylon Snap Bushings Wire Bushing OSB

Specification:

Material: Nylon 66
Flammability: 94V-2
Certificate: UL
Color: White, Black, Available

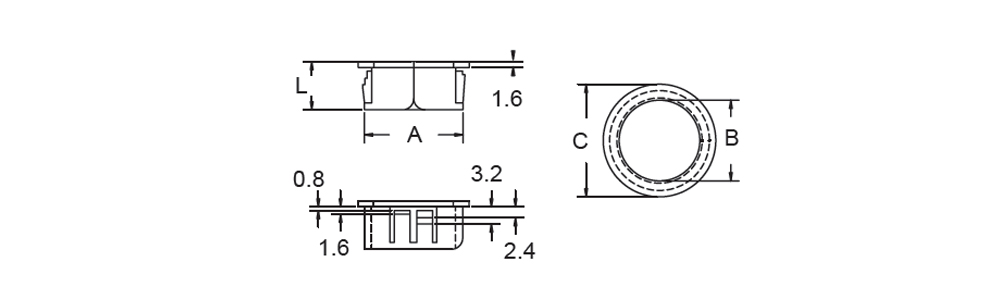

Item No. Mounting Hole A(mm) Max. cable range B(mm) Covering
C(mm)
Height
L(mm)
Packing
OSB-10 9 6 11.8 9.8 100pcs
OSB-13 12.5 7.5 15.1 10.3
OSB-16 15.5 11.2 18.5 10.3
OSB-19 18.4 12.5 21 10.3
OSB-22 22 17 24.6 10.3
OSB-26 25.5 20 28.4 10.6
