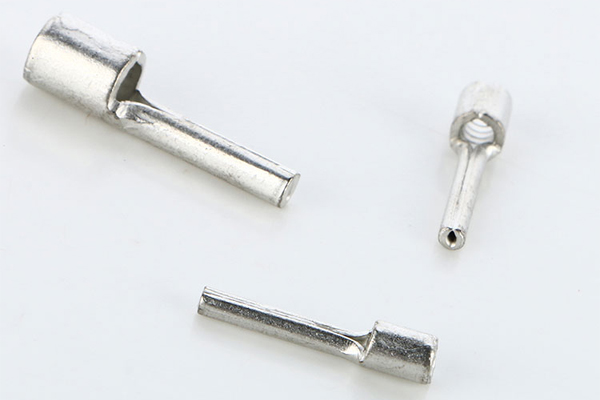

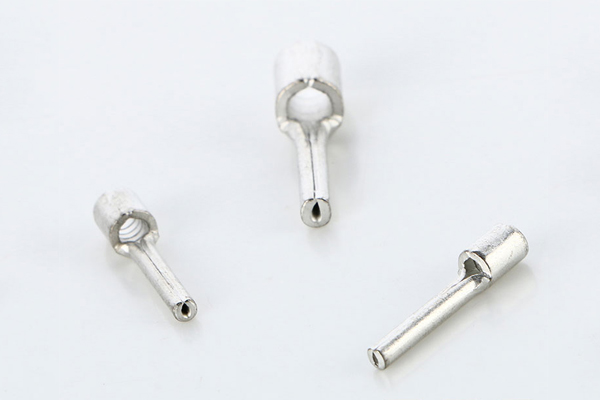

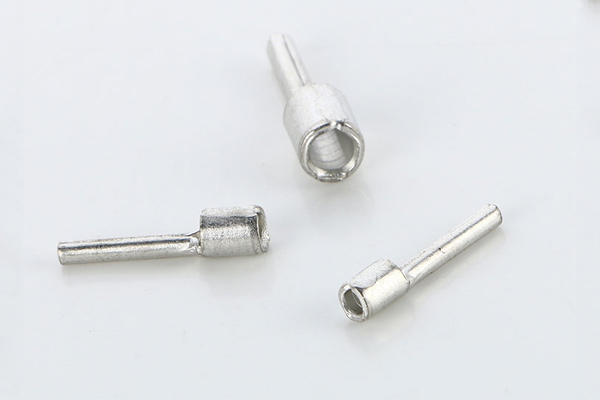

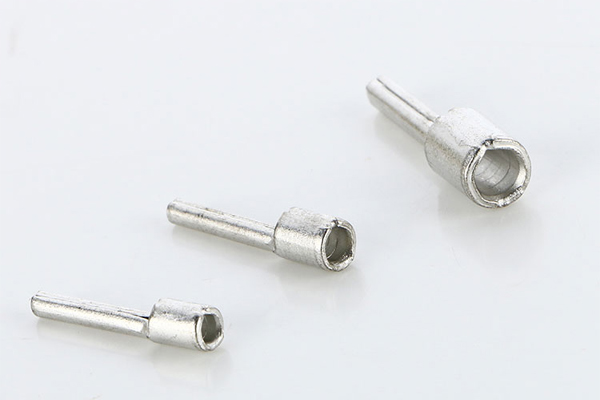

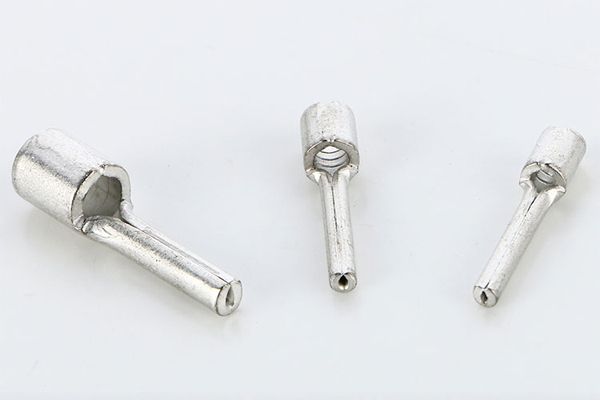

Non-Insulated PIN Connectors Non-insulated Crimp PIN Wire Connector PIN
Specification:
Material: Copper, Tin-plated Copper
Certification: CE, RoHS, UL Approved
Working Temperature: -40 degrees to 80-degree
PIN Connectors can be crimped or soldered, widely used in the electrical wire connecting of the switchboard, mechanical equipment factory and so on
| Insulated square：0.5～1.5mm²(AWG22～16) Max. current: lmax=19A | |||||

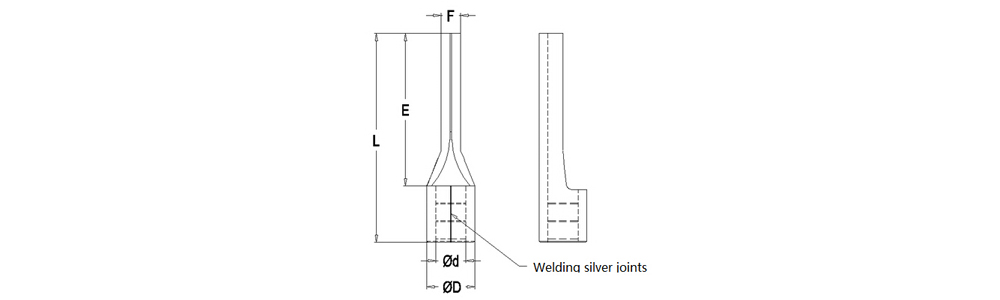

| Item No | DIMENSION | ||||
| Fφ | L | E | Dφ | dφ | |
| mm | mm | mm | mm | mm | |
| PIN1.25-9 | 1.9 | 13.8 | 9 | 3.4 | 1.7 |
| PIN1.25-10 | 1.9 | 14.8 | 10 | ||
| PIN1.25-12 | 1.9 | 16.8 | 12 | ||
| PIN1.25-13 | 1.9 | 17.8 | 13 | ||
| PIN1.25-18 | 1.9 | 22.8 | 18 | ||
| Insulated square：1.5～2.5mm²(AWG16～14) Max. current: lmax=27A | |||||
| Item No | DIMENSION | ||||
| Fφ | L | E | Dφ | Cφ | |
| mm | mm | mm | mm | mm | |
| PIN2-9 | 1.9 | 13.8 | 9 | 4.1 | 2.3 |
| PIN2-10 | 1.9 | 14.8 | 10 | ||
| PIN2-12 | 1.9 | 16.8 | 12 | ||
| PIN2-13 | 1.9 | 17.8 | 13 | ||
| PIN2-18 | 1.9 | 22.8 | 18 | ||
| Insulated square：2.5～4mm²(AWG14～12) Max. current: lmax=37A | |||||
| Item No | DIMENSION | ||||
| Fφ | L | E | Dφ | Cφ | |
| mm | mm | mm | mm | mm | |
| PIN3.5-10 | 2.8 | 14.8 | 10 | 5 | 3 |
| PIN3.5-13 | 2.8 | 19.8 | 13 | 5 | 3 |
| Insulated square：4～6mm²(AWG12～10) Max. current: lmax=48A | |||||
| Item No | DIMENSION | ||||
| Fφ | L | E | Dφ | Cφ | |
| mm | mm | mm | mm | mm | |
| PIN5.5-13 | 2.8 | 19.8 | 13 | 5.6 | 3.4 |
