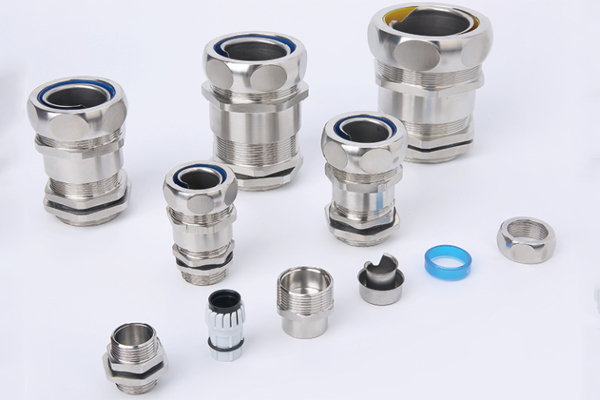

Pipe Fittings Hose Connectors Stainless Steel SSRM
Specification:
Material:
Stainless Steel SS304/316L
Retainer: TPE
Ferrule: Stainless Steel
Sealing: Modified Rubber
Sealing Ring: PA6
Certificate: CE, RoHS
Protection Rating: IP65
Working Temperature:
Static state: -60°C to 100°C, short time to 120°C
(In mm)
| Item | Cable Range | Thread LengthGL | Spanner size | Conduit Size (Nominal bore diameter) |
Item No. |
| M12*1.5-Φ6 | 3-5.5 | 6 | 18/17/14 | Φ6 | SRM12-Φ6 |
| M16*1.5-Φ8 | 4-7 | 7 | 20/19/18 | Φ8 | SRM16-Φ8 |
| M18*1.5-Φ10 | 5-9 | 1 | 24/23/20 | Φ10 | SRM18-Φ10 |
| M20* 1.5-Φ12 | 6-11 | 7 | 26/26/20 | Φ12 | SRM20-Φ12 |
| M20* 1.5-Φ15 | 6-12 | 7 | 30/28/24 | Φ15 | SRM20-Φ15 |
| M22* 1.5-Φ15 | 8-14 | 7 | 30/30/24 | Φ15 | SRM22-Φ15 |
| M24* 1.5-Φ15 | 8-14 | 7 | 30/30/27 | Φ15 | SRM24-Φ15 |
| M25* 1.5-Φ15 | 8-14 | 7 | 30/30/28 | Φ15 | SRM25-Φ15 |
| M25* 1.5-Φ20 | 13-18 | 1 | 36/34/30 | Φ20 | SRM25-Φ20 |
| M32* 1.5-Φ20 | 13-18 | 8 | 36/34/36 | Φ20 | SRM32-Φ20 |
| M32*1.5-Φ25 | 15-22 | 8 | 45/40/36 | Φ25 | SRM32-Φ25 |
| M36*2-Φ25 | 15-22 | 8 | 45/45/40 | Φ25 | SRM36-Φ25 |
| M40* 1.5-Φ32 | 22-30 | 9 | 55/52/45 | Φ32 | SRM40-Φ32 |
| M40* 1.5-Φ38 | 22-30 | 9 | 60/58/50 | Φ32 | SRM40-Φ38 |
| M48* 1.5-Φ32 | 22-32 | 9 | 55/52/55 | Φ38 | SRM48-Φ32 |
| M50* 1.5-Φ38 | 30-35 | 9 | 60/58/55 | Φ38 | SRM50-Φ38 |
| M50* 1.5-Φ51 | 30-35 | 9 | 75/75/75 | Φ51 | SRM50-Φ51 |
| M56*2-Φ38 | 30-38 | 9 | 60/58/60 | Φ38 | SRM56-Φ38 |
| M60* 1.5-Φ51 | 37-44 | 10 | 75/75/70 | Φ51 | SRM60-Φ51 |
| M63* 1.5-Φ51 | 37-44 | 10 | 75/75/70 | Φ51 | SRM63-Φ51 |
