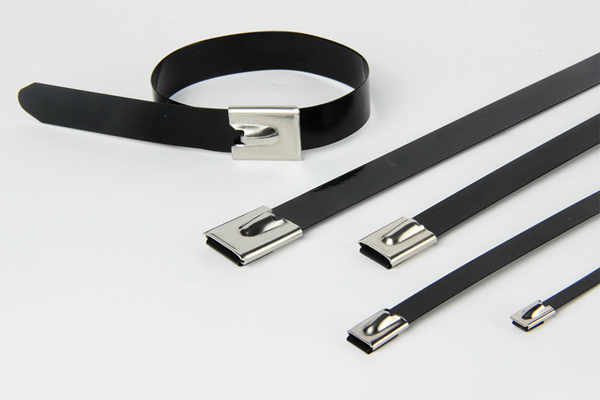

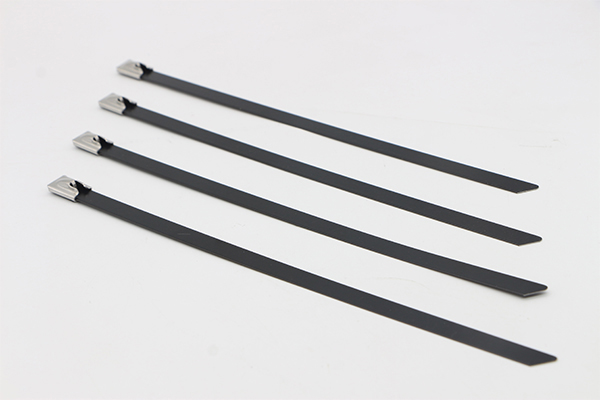

PVC Coated Stainless Steel Ties Self Locking Cable Ties BZ-CB
Specification：
Material: Stainless Steel Grade 304 or 316
Coating: Polyester/Epoxy, Nylon 11
Working Temperature: -80℃ to 150℃
Color: Black, Available
Flammability: Fireproof
UV-resistant, Halogen Free, Non-toxic
Features: Self-locking, for installing easier and faster. Smooth rounded edges, for safe handling. The PVC Coated Stainless Steel Ties provides extra corrosion protection, excellent chemical resistance.
| Item No. | Width | Length | Thickness | Max.Bundle Dia. | Min.Bundle Dia. | Min. Tensile Strength | ||||||
| mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | N | lbs | |
| BZ-CB 5.6×150 | 5.6 | 0.22 | 150 | 5.9 | 1.00 | 0.039 | 37 | 1.46 | 12.7 | 0.50 | 350 | 80 |
| BZ-CB 5.6×200 | 200 | 7.9 | 50 | 1.97 | ||||||||
| BZ-CB 5.6×250 | 250 | 9.8 | 63 | 2.48 | ||||||||
| BZ-CB 5.6 x 350 | 350 | 13.8 | 89 | 3.50 | ||||||||
| BZ-CB 5.6×450 | 450 | 17.7 | 115 | 4.53 | ||||||||
| BZ-CB 5.6×600 | 600 | 23.6 | 154 | 6.06 | ||||||||
| BZ-CB 5.6×750 | 750 | 29.5 | 178 | 7.01 | ||||||||
| BZ-CB 5.6×900 | 900 | 35.4 | 229 | 9.02 | ||||||||
| BZ-CB 9×200 | 9 | 0.35 | 200 | 7.9 | 1.00 | 0.039 | 52 | 2.05 | 25.4 | 1.00 | 450 | 100 |
| BZ-CB 9×250 | 250 | 9.8 | 65 | 2.56 | ||||||||
| BZ-CB 9×300 | 300 | 11.8 | 78 | 3.07 | ||||||||
| BZ-CB 9×400 | 400 | 15.7 | 102 | 4.02 | ||||||||
| BZ-CB 9 x 500 | 500 | 19.7 | 128 | 5.04 | ||||||||
| BZ-CB 9×650 | 650 | 25.6 | 165 | 6.50 | ||||||||
| BZ-CB 9 x 800 | 800 | 31.5 | 204 | 8.03 | ||||||||
| BZ-CB 9×1000 | 1000 | 39.4 | 254 | 10.0 | ||||||||
| BZ-CB 16×350 | 16 | 0.63 | 350 | 13.8 | 1.20 | 0.047 | 89 | 3.50 | 25.4 | 1.00 | 900 | 200 |
| BZ-CB 16×450 | 450 | 17.7 | 115 | 4.53 | ||||||||
| BZ-CB 16×550 | 550 | 21.7 | 141 | 5.55 | ||||||||
| BZ-CB 16×700 | 700 | 27.6 | 179 | 7.05 | ||||||||
| BZ-CB 16×850 | 850 | 33.5 | 216 | 8.50 | ||||||||
| BZ-CB 16×1100 | 1100 | 43.3 | 280 | 11.02 | ||||||||
