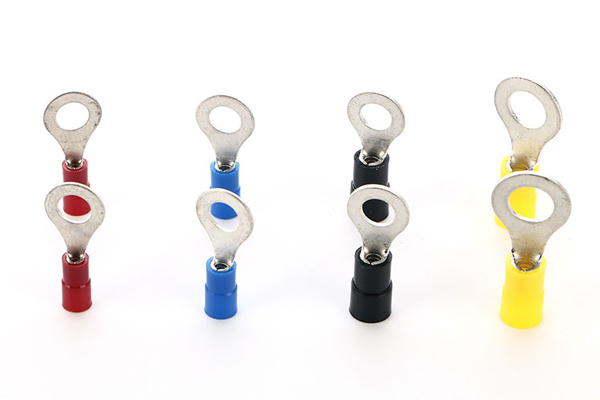

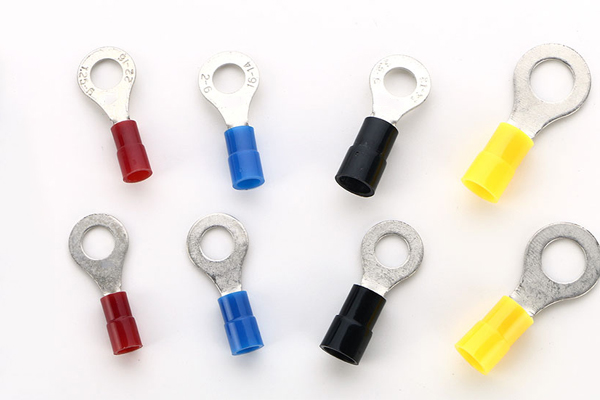

Nylon Insulated Ring Terminal Connector Wire Terminal BRFN
Specification:
Material: Copper, Tin-plated copper
Insulated Material: Nylon, PA66
Certification: CE, RoHS, UL Approved
Working Temperature: -40℃ to 105℃ Heat-resistance
Nylon Insulated Ring Terminal Connector offers a termination security in high vibration areas with easy insert insulator, easy to process. hard connecting inside and groove construction. All these Terminals are made of high-quality copper in good conductivity and corrosion resistance. Halogen-free, temperature up to 105 °C
| Insulated Size of cable: 0.5-1.5mm²(AWG22-16) Max.Current=19A | ||||||||
| Item No . | DIMENSION | color | ||||||

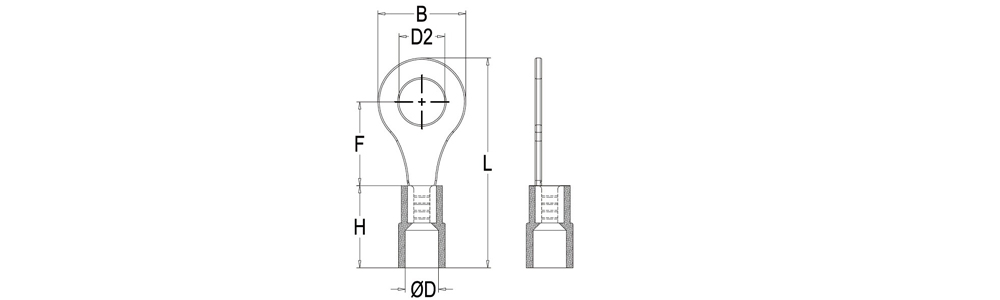

| America | Dia. of bolt | B | L | F | H | DΦ | ||
| Bolt no. | d2 | mm | mm | mm | mm | mm | ||
| BRF1.25-3N | #4 | 3.2mm | 5.5 | 18.5 | 5 | 11 | 4 | Red |
| BRFS1.25-3.5N | #6 | 3.7mm | 5.7 | 18.5 | 5 | |||
| BRFM1.25-3.5N | #6 | 3.7mm | 6.6 | 20.4 | 6.3 | |||
| BRFL1.25-3.5N | #6 | 3.7mm | 8 | 21.8 | 7 | |||
| BRFS1.25-4N | #8 | 4.3mm | 6.6 | 20.4 | 6.3 | |||
| BRFL1.25-4N | #8 | 4.3mm | 8 | 21.8 | 7 | |||
| BRFS1.25-5N | #10 | 5.3mm | 8 | 21.8 | 7 | |||
| BRFL1.25-5N | #10 | 5.3mm | 11.6 | 27.8 | 11 | |||
| BRFS1.25-6N | 1/4 | 6.4mm | 11.6 | 27.8 | 11 | |||
| BRF1.25-6N | 1/4 | 6.4mm | 11.6 | 27.8 | 11 | |||
| BRF1.25-8N | 5/16 | 8.4mm | 11.6 | 27.8 | 11 | |||
| BRF1.25-10N | 3-8 | 10.5mm | 13.6 | 31.5 | 13.9 | |||
| BRF1.25-12N | 1-2 | 13.0mm | 19.6 | 36.4 | 16 | |||
| Insulated Size of cable: 1.5-2.5mm²(AWG 16-14) Max.Current=27A | ||||||||
| Item No . | DIMENSION | color | ||||||
| America | Dia. of bolt | B | L | F | H | DΦ | ||
| Bolt no. | d2 | mm | mm | mm | mm | mm | ||
| BRF2-3N | #4 | 3.2mm | 6.6 | 18.8 | 4.8 | 11 | 4.5 | Blue |
| BRFS2-3.5N | #6 | 3.7mm | 6.6 | 18.8 | 4.8 | |||
| BRFM2-3.5N | #6 | 3.7mm | 6.6 | 20.4 | 6.3 | |||
| BRFL2-3.5N | #6 | 3.7mm | 8.5 | 22.8 | 7.4 | |||
| BRFS2-4N | #8 | 4.3mm | 6.6 | 20.4 | 6.3 | |||
| BRFL2-4N | #8 | 4.3mm | 8.5 | 22.8 | 7.8 | |||
| BRFS2-5N | #10 | 5.3mm | 8.5 | 22.8 | 7.8 | |||
| BRFL2-5N | #10 | 5.3mm | 9.5 | 22.8 | 7.3 | |||
| BRF2-6N | 1/4 | 6.5mm | 12 | 27.8 | 11 | |||
| BRF2-8N | 5/16 | 8.4mm | 12 | 27.8 | 11 | |||
| BRF2-10N | 3-8 | 10.5mm | 13.6 | 31.5 | 13.9 | |||
| BRF2-12N | 1-2 | 13.0mm | 19.2 | 36.4 | 16 | |||
| Insulated square：2.5～4mm²(AWG14～12)Max. current: lmax＝37A | ||||||||
| Item No . | DIMENSION | color | ||||||
| America | Dia. of bolt | B | L | F | H | DΦ | ||
| Bolt no. | d2 | mm | mm | mm | mm | mm | ||
| BRF3.5-4N | #8 | 4.3mm | 8 | 24.5 | 7.7 | 13.5 | 6.4 | Black |
| BRFS3.5-5N | #10 | 5.3mm | 8 | 24.5 | 7.7 | |||
| BRFL3.5-5N | #10 | 5.3mm | 12 | 27.9 | 7.7 | |||
| BRF3.5-6N | 1/4 | 6.5mm | 12 | 27.9 | 7.7 | |||
| BRF3.5-8N | 5/16 | 8.4mm | 15 | 32 | 13.5 | |||
| BRF3.5-10N | 3-8 | 10.5mm | 15 | 32 | 13.5 | |||
| Insulated Size of cable: 4-6mm²(American standar 12-10) Max.Current=48A | ||||||||
| Item No . | DIMENSION | color | ||||||
| America | Dia. of bolt | B | L | F | H | DΦ | ||
| Bolt no. | d2 | mm | mm | mm | mm | mm | ||
| BRF5.5-3.5N | #6 | 3.7mm | 7.2 | 22.7 | 6.1 | 13.5 | 6.4 | Yellow |
| BRFS5.5-4N | #8 | 4.3mm | 7.2 | 22.7 | 6.1 | |||
| BRFL5.5-4N | #8 | 4.3mm | 9.5 | 26 | 8.3 | |||
| BRF5.5-5N | #10 | 5.3mm | 9.5 | 26 | 8.3 | |||
| BRF5.5-6N | 1/4 | 6.5mm | 12 | 29.5 | 10.5 | |||
| BRF5.5-8N | 5/16 | 8.4mm | 15 | 34 | 13.3 | |||
| BRF5.5-10N | 3-8 | 10.5mm | 15 | 34 | 13.3 | |||
| BRF5.5-12N | 1-2 | 13.0mm | 19.2 | 38.6 | 16 | |||
