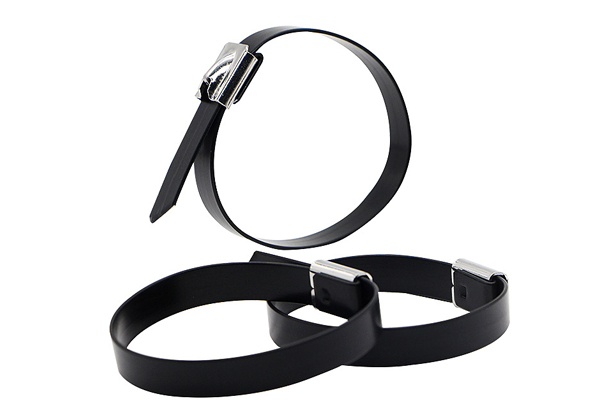

Stainless Steel Zip Ties Plastic Coated L Type Cable Ties BZ-LB

Stainless Steel Zip Ties Plastic Coated L Type Cable Ties BZ-LB

Category:

Stainless Steel Zip Ties Plastic Coated L Type Cable Ties BZ-LB

Specification：

Material: Stainless Steel Grade 304 or 316
Coating: PVC
Working Temperature: -40℃ to 85℃
Description: Black Band with Metallic Buckle
Flammability: Fireproof
UV-resistant, Halogen Free, Non-toxic
Features: Self-locking, for installing easier and faster. Smooth rounded edges, for safe handling. Stainless Steel Zip Ties also available with coating for customized applications.

Item No. Width Length Thickness Max.Bundle Dia. Min.Bundle Dia. Min. Tensile Strength
mm inch mm inch mm inch mm inch mm inch N lbs
BZ-LB 9×300 9 0.35 300 11.81 1.0 0.039 60 2.36 12.7 0.50 2220 450
BZ-LB 9×400 400 15.75 92 3.62
BZ-LB 9 x 500 500 19.69 124 4.88
BZ-LB 9×600 600 23.62 156 6.14
BZ-LB 9×700 700 27.56 188 7.40
BZ-LB 9×800 800 31.50 220 8.66
BZ-LB 9×900 900 35.43 252 9.90
BZ-LB 9×1000 1000 39.37 284 11.18
BZ-LB 9×1100 1100 43.31 313 12.30
BZ-LB 9×1200 1200 47.24 348 13.70
BZ-LB 11×300 11 0.43 300 11.81 1.0 0.039 60 2.36 19.05 0.75 2800 630
BZ-LB 11×400 400 15.75 92 3.62
BZ-LB 11×500 500 19.69 124 4.88
BZ-LB 11×600 600 23.62 156 6.14
BZ-LB 11×700 700 27.56 188 7.40
BZ-LB 11×800 800 31.50 220 8.66
BZ-LB 11×900 900 35.43 252 9.90
BZ-LB 11×1000 1000 39.37 284 11.18
BZ-LB 11×1100 1100 43.31 313 12.30
BZ-LB 11×1200 1200 47.24 348 13.70
BZ-LB 13×300 13 0.51 300 11.81 1.2 0.047 60 2.36 25.4 1.0 3000 675
BZ-LB 13×400 400 15.75 92 3.62
BZ-LB 13×500 500 19.69 124 4.88
BZ-LB 13×600 600 23.62 156 6.14
BZ-LB 13×700 700 27.56 188 7.40
BZ-LB 13×800 800 31.50 220 8.66
BZ-LB 13×900 900 35.43 252 9.90
BZ-LB 13×1000 1000 39.37 284 11.18
BZ-LB 13×1100 1100 43.31 313 12.30
BZ-LB 13×1200 1200 47.24 348 13.70
BZ-LB 16×300 16 0.63 300 11.81 1.2 0.047 60 2.36 25.4 1.0 3500 790
BZ-LB 16×400 400 15.75 92 3.62
BZ-LB 16×500 500 19.69 124 4.88
BZ-LB 16×600 600 23.62 156 6.14
BZ-LB 16×700 700 27.56 188 7.40
BZ-LB 16×800 800 31.50 220 8.66
BZ-LB 16×900 900 35.43 252 9.90
BZ-LB 16×1000 1000 39.37 284 11.18
BZ-LB 16×1100 1100 43.31 313 12.30
BZ-LB 16×1200 1200 47.24 348 13.70
