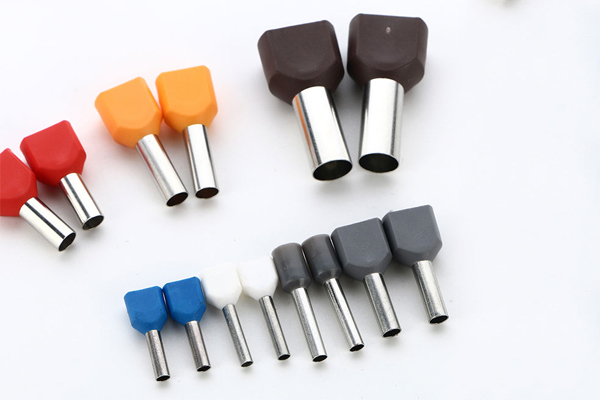

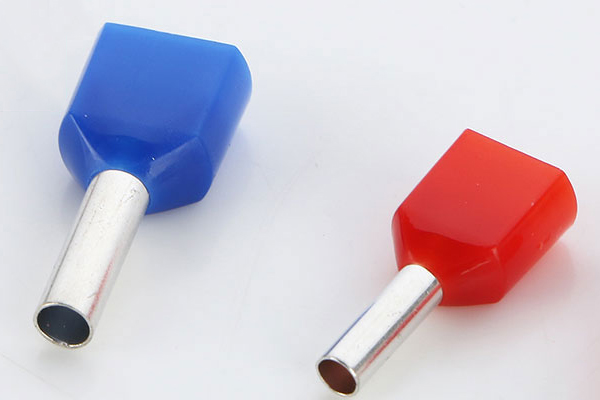

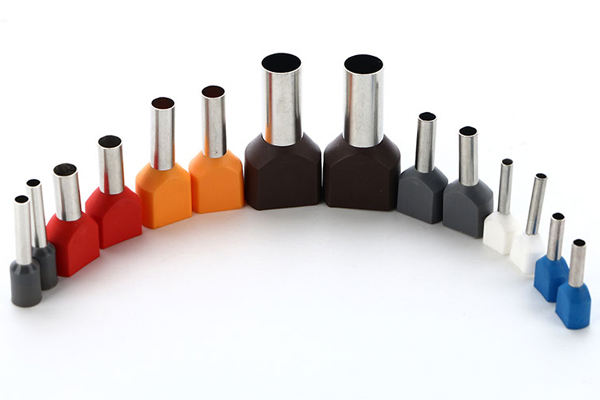

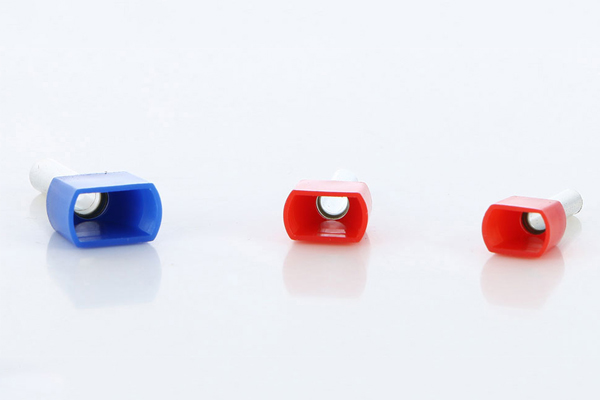

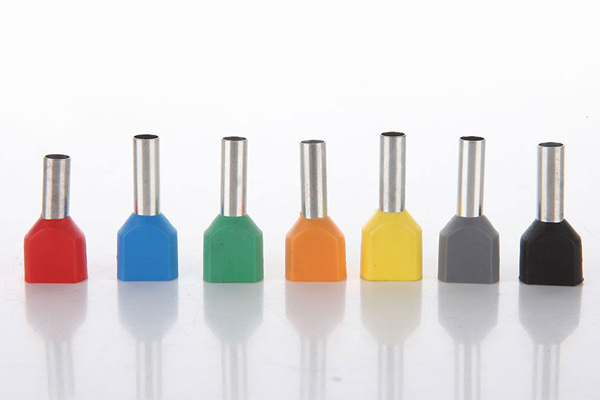

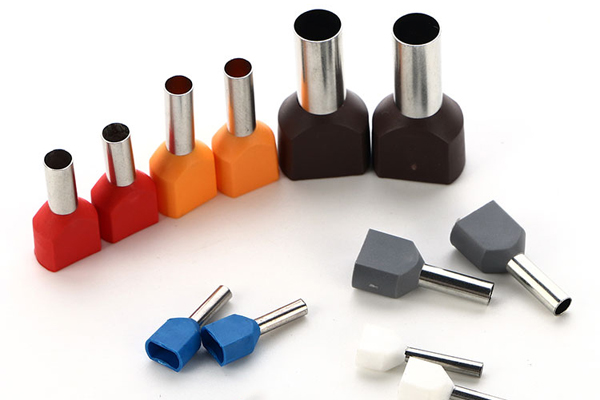

Insulated Twin Cord End Terminals Wire Connector Tin-plated copper BEW
Specification:
Material: Copper, Tin-plated copper
Insulated Material: Vinyl
Certification: CE, RoHS, UL Approved
Limited Working Temperature: -14℃ to 105℃ Ui=300V
Twin Cord End Terminals offer a termination security in high vibration areas. All these Terminals are made of high-quality copper in good conductivity and corrosion resistance.

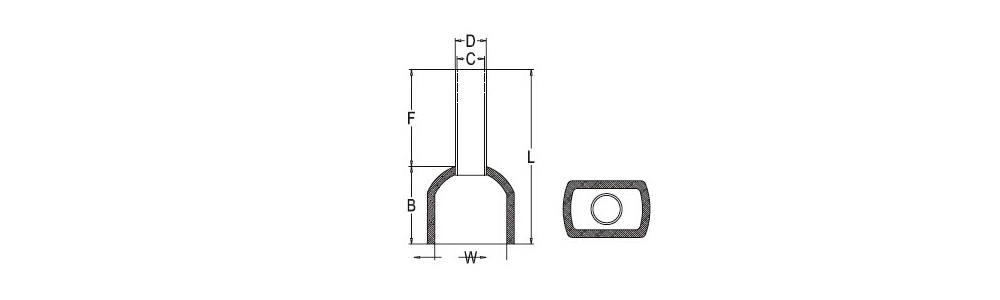

| Item No. | DIMENSION | Insulated square mm² |
Color | ||||||
| F | L | W | B | DΦ | CΦ | France | Germany | ||
| BEW 0.5-8 | 8 | 15 | 5 | 7 | 1.8 | 1.5 | 2 x 0.5 | White | White |
| BEW 0.75-8 | 8 | 15.8 | 5.3 | 7.8 | 2.1 | 1.8 | 2 x 0.75 | Blue | Gray |
| BEW 0.75-10 | 10 | 17.8 | 5.3 | 7.8 | 2.1 | 1.8 | 2 x 0.75 | Blue | Gray |
| BEW 1.0-8 | 8 | 16 | 5.3 | 8 | 2.4 | 2.1 | 2 x 1.0 | Red | Red |
| BEW 1.0-10 | 10 | 18 | 5.3 | 8 | 2.4 | 2.1 | 2 x 1.0 | Red | Red |
| BEW 1.5-8 | 8 | 16 | 6.2 | 8 | 2.6 | 2.3 | 2 x 1.5 | Black | Yellow |
| BEW 1.5-12 | 12 | 20 | 6.2 | 8 | 2.6 | 2.3 | 2 x 1.5 | Black | Yellow |
| BEW 2.5-10 | 10 | 19.8 | 7.8 | 9.8 | 3.3 | 2.9 | 2 x 2.5 | Gray | Blue |
| BEW 2.5-12 | 12 | 21.8 | 7.8 | 9.8 | 3.3 | 2.9 | 2 x 2.5 | Gray | Blue |
| BEW 4.0-12 | 12 | 22.2 | 8.5 | 10.2 | 4.2 | 3.8 | 2 x 4.0 | Orange | Gray |
| BEW 6.0-14 | 14 | 25.2 | 9.5 | 11.2 | 5.3 | 4.9 | 2 x 6.0 | Green | Yellow |
| BEW 10 – 14 | 14 | 26 | 12.6 | 12 | 6.9 | 6.5 | 2 x 10.0 | Brown | Red |
| BEW 16 -14 | 14 | 30.3 | 19 | 16.3 | 8.7 | 8.3 | 2 x 16.0 | Milk | Blue |
