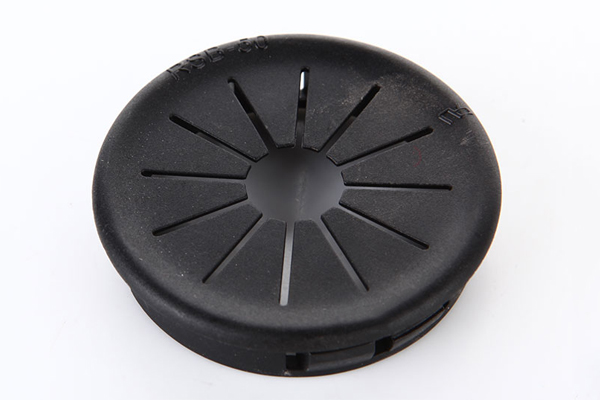

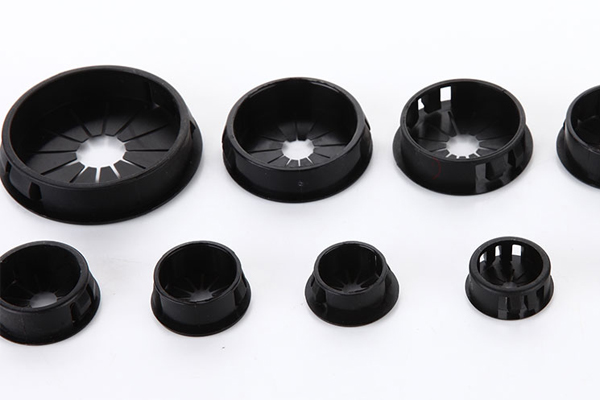

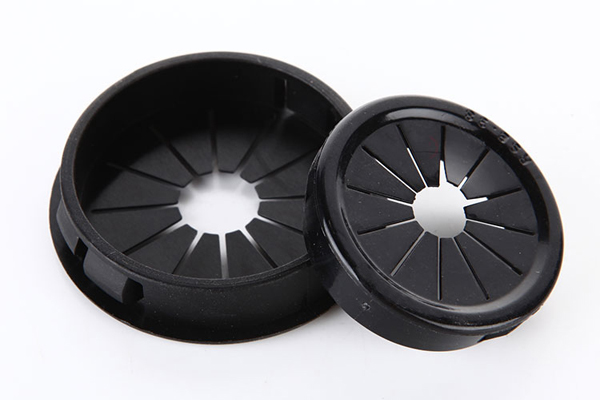

Wire Bushing Nylon Snap Bushing Round RSB
Specification：
Material: Nylon 66
Flammability: 94V-2
Certificate: UL
Color: White, Black, Available

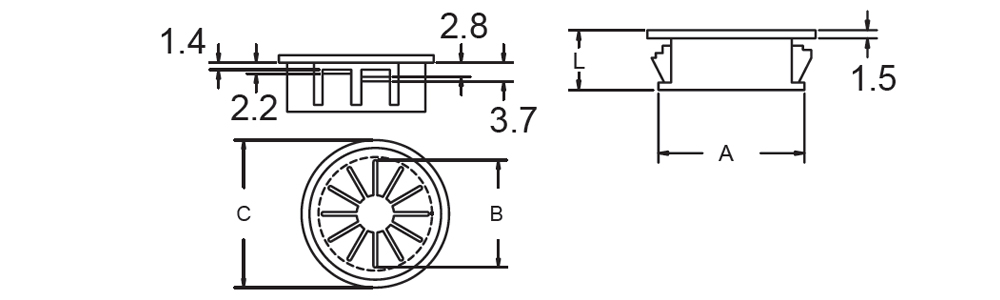

| Item No. | Mounting Hole A (mm) |
Max. cable range B(mm) | Covering C(mm) |
Height L(mm) |
Packing |
| RSB-16 | 15.9 | 11.1 | 18.3 | 10 | 100pcs |
| RSB-19 | 18.8 | 12.7 | 21.8 | 10 | |
| RSB-22 | 22.2 | 14.3 | 23.8 | 11.5 | |
| RSB-25 | 25.3 | 20.4 | 28.5 | 11.3 | |
| RSB-28 | 27.6 | 22.4 | 30.8 | 11.3 | |
| RSB-30 | 27.6 | 22.4 | 30.8 | 11.3 | |
| RSB-35 | 34.2 | 29.3 | 37.5 | 11.3 | |
| RSB-38 | 38 | 31 | 31 | 11.2 | |
| RSB-45 | 44.5 | 40 | 49.7 | 11.8 | |
| RSB-50 | 50.1 | 45 | 54.6 | 11.8 |
| Item No. | Mounting Hole A (mm) |
Max. cable range B(mm) | Covering C(mm) |
Height L(mm) |
Packing |
| RSB-16A | 15.9 | 11.1 | 18.3 | 10 | 100pcs |
| RSB-19A | 18.8 | 12.7 | 21.8 | 10 | |
| RSB-22A | 22.2 | 14.3 | 23.8 | 11.5 | |
| RSB-25A | 25.3 | 20.4 | 28.5 | 11.3 | |
| RSB-28A | 27.6 | 22.4 | 30.8 | 11.3 | |
| RSB-30A | 27.6 | 22.4 | 30.8 | 11.3 | |
| RSB-35A | 34.2 | 29.3 | 37.5 | 11.3 | |
| RSB-38A | 38 | 31 | 31 | 11.2 | |
| RSB-45A | 44.5 | 40 | 49.7 | 11.8 | |
| RSB-50A | 50.1 | 45 | 54.6 | 11.8 |
