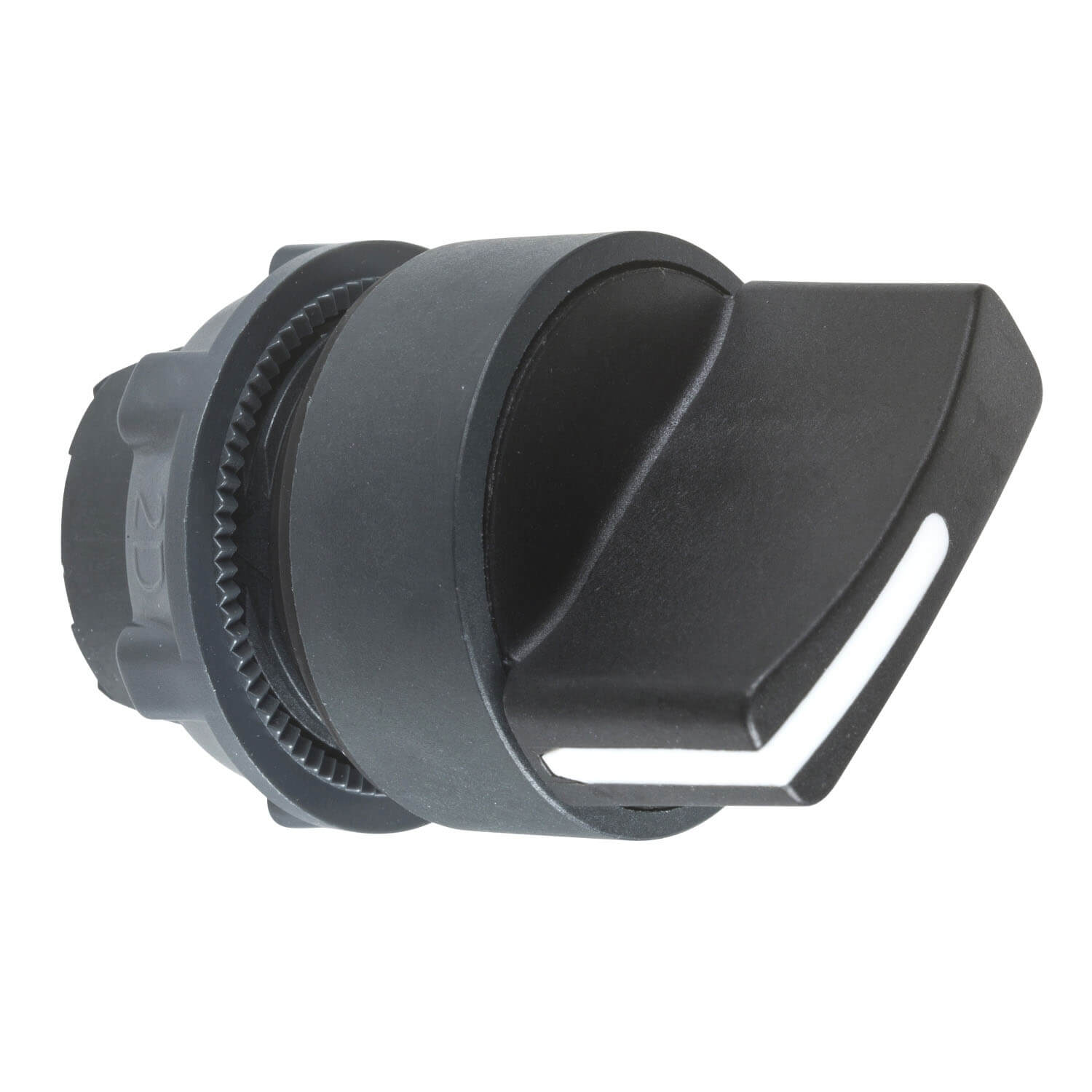

ZB5AD4 Black selector switch head Ø22 2-position spring return

Category:

ZB5AD4 Black selector switch head Ø22 2-position spring return

Specification:

Main
range of product
Harmony XB5
product or component type
Head for selector switch
device short name
ZB5
bezel material
Dark grey plastic
mounting diameter
22 mm
head type
Standard
sale per indivisible quantity
1
shape of signaling unit head
Round
type of operator
Right to left spring return
operator profile
Black standard handle
operator position information
2 positions 90°
Complementary
CAD overall width
29 mm
CAD overall height
29 mm
CAD overall depth
46 mm
net weight
0.02 kg
mechanical durability
1000000 cycles
station name
XALD 1…5 cut-outs
XALK 2…5 cut-outs
electrical composition code
C3 for <6 contacts using single blocks in front mounting
C4 for <6 contacts using single and double blocks in front mounting
C5 for <5 contacts using single blocks in front mounting
C6 for <5 contacts using single and double blocks in front mounting
C7 for <4 contacts using single blocks in front mounting
C8 for <4 contacts using single and double blocks in front mounting
C11 for <3 contacts using single blocks in front mounting
C15 for <1 contacts using single blocks in front mounting
SF1 for <3 contacts using single blocks in front mounting
SR1 for <3 contacts using single blocks in rear mounting
device presentation
Basic element
Environment
protective treatment
TH
ambient air temperature for storage
-40…70 °C
ambient air temperature for operation
-40…70 °C
overvoltage category
Class II conforming to IEC 60536
IP degree of protection
IP67 conforming to IEC 60529
IP69 conforming to IEC 60529
IP69K
NEMA degree of protection
NEMA 13
NEMA 4X
resistance to high pressure washer
7000000 Pa at 55 °C, distance : 0.1 m
IK degree of protection
IK06 conforming to IEC 50102
standards
UL 508
EN/IEC 60947-1
EN/IEC 60947-5-4
CSA C22.2 No 14
EN/IEC 60947-5-1
JIS C8201-5-1
JIS C8201-1
product certifications
BV
DNV
CSA
RINA
GL
LROS (Lloyds register of shipping)
UL listed
vibration resistance
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
shock resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Weight
27 g
Package 1 Height
3.4 cm
Package 1 width
5.2 cm
Package 1 Length
5.8 cm
Package 2 Weight
5.986 kg
