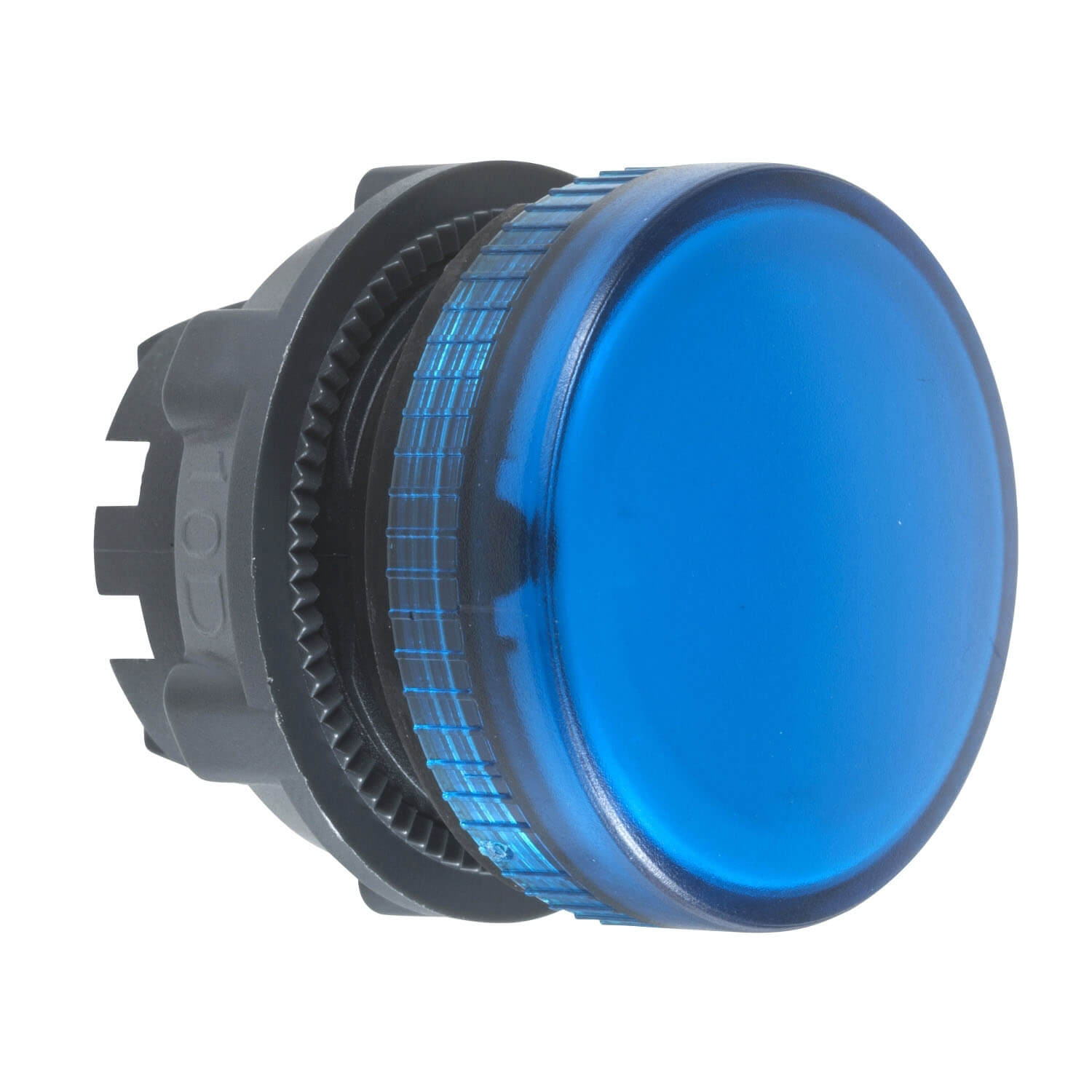

ZB5AV06 Blue pilot light head ø22 plain lens for ba9s bulb

Category:

ZB5AV06 Blue pilot light head ø22 plain lens for ba9s bulb

Specification:

Main
range of product
Harmony XB5
product or component type
Head for pilot light
product compatibility
BA 9s
device short name
ZB5
bezel material
Dark grey plastic
mounting diameter
22 mm
head type
Standard
sale per indivisible quantity
1
shape of signaling unit head
Round
cap/operator or lens colour
Blue
operator additional information
With plain lens
Complementary
CAD overall width
29 mm
CAD overall height
29 mm
CAD overall depth
31 mm
net weight
0.018 kg
station name
XALD 1…5 cut-outs
XALK 2…5 cut-outs
electrical composition code
P3 in front mounting with BA 9s
P4 in front mounting with BA 9s and transformer
PF2 in front mounting with BA 9s
device presentation
Basic element
Environment
protective treatment
TH
ambient air temperature for storage
-40…70 °C
ambient air temperature for operation
-40…70 °C
overvoltage category
Class II conforming to IEC 60536
IP degree of protection
IP66 conforming to IEC 60529
IP67 conforming to IEC 60529
IP69 conforming to IEC 60529
IP69K conforming to ISO 20653
NEMA degree of protection
NEMA 13
NEMA 4X
resistance to high pressure washer
7000000 Pa at 55 °C, distance : 0.1 m
IK degree of protection
IK05 conforming to IEC 50102
standards
EN/IEC 60947-1
EN/IEC 60947-5-4
JIS C8201-5-1
EN/IEC 60947-5-5
UL 508
CSA C22.2 No 14
EN/IEC 60947-5-1
JIS C8201-1
vibration resistance
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
shock resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Weight
16 g
Package 1 Height
4.7 cm
Package 1 width
3.4 cm
Package 1 Length
5.4 cm
