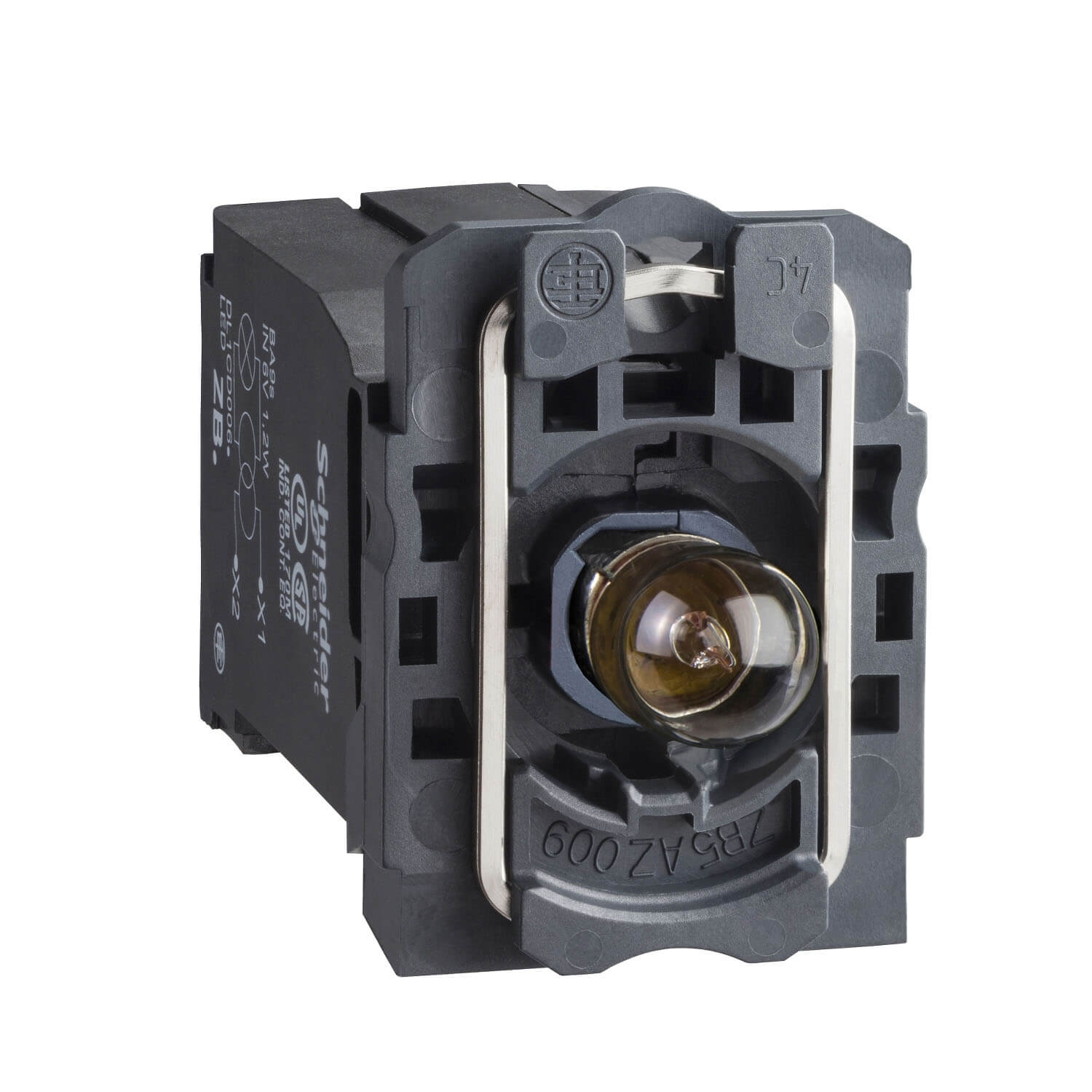

ZB5AV4 Light block with body/fixing collar with BA9s incandesc. bulb 220…240V
Specification:
| range of product | Harmony XB5 | |
|---|---|---|
| product or component type | Complete body/light block assembly | |
| device short name | ZB5 | |
| fixing collar material | Plastic | |
| sale per indivisible quantity | 1 | |
| connections – terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1 | |
| light source | Incandescent | |
| bulb base | BA 9s | |
| light block supply | Via integral transformer 1.2 VA 6 V |
| CAD overall width | 30 mm | |
|---|---|---|
| CAD overall height | 42 mm | |
| CAD overall depth | 55 mm | |
| terminals description ISO n°1 | (X1-X2)PL | |
| net weight | 0.099 kg | |
| tightening torque | 0.8…1.2 N.m conforming to EN 60947-1 | |
| shape of screw head | Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver | |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to EN 60947-1 | |
| [Uimp] rated impulse withstand voltage | 6 kV EN 60947-1 | |
| signalling type | Steady | |
| [Us] rated supply voltage | 230…240 V AC at 50/60 Hz | |
| mounting of block | Front mounting | |
| electrical composition code | P4 M9 | |
| device presentation | Basic sub-assemblies |
| protective treatment | TH | |
|---|---|---|
| ambient air temperature for storage | -40…70 °C | |
| ambient air temperature for operation | -40…55 °C | |
| electrical shock protection class | Class II conforming to IEC 60536 | |
| standards | UL 508 CSA C22.2 No 14 EN/IEC 60947-5-1 JIS C8201-5-1 EN/IEC 60947-1 EN/IEC 60947-5-4 JIS C8201-1 | |
| product certifications | UL listed BV CSA LROS (Lloyds register of shipping) GL DNV RINA | |
| vibration resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 | |
| shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE | |
|---|---|---|
| Number of Units in Package 1 | 1 | |
| Package 1 Weight | 98 g | |
| Package 1 Height | 9.3 cm | |
| Package 1 width | 3.5 cm | |
| Package 1 Length | 5.7 cm | |
| Unit Type of Package 2 | BB1 | |
| Number of Units in Package 2 | 5 | |
| Package 2 Weight | 494 g | |
| Package 2 Height | 8.8 cm | |
| Package 2 width | 26.5 cm | |
| Package 2 Length | 3.4 cm | |
| Unit Type of Package 3 | S02 | |
| Number of Units in Package 3 | 50 | |
| Package 3 Weight | 5.254 kg | |
| Package 3 Height | 15 cm | |
| Package 3 width | 30 cm | |
| Package 3 Length | 40 cm |
