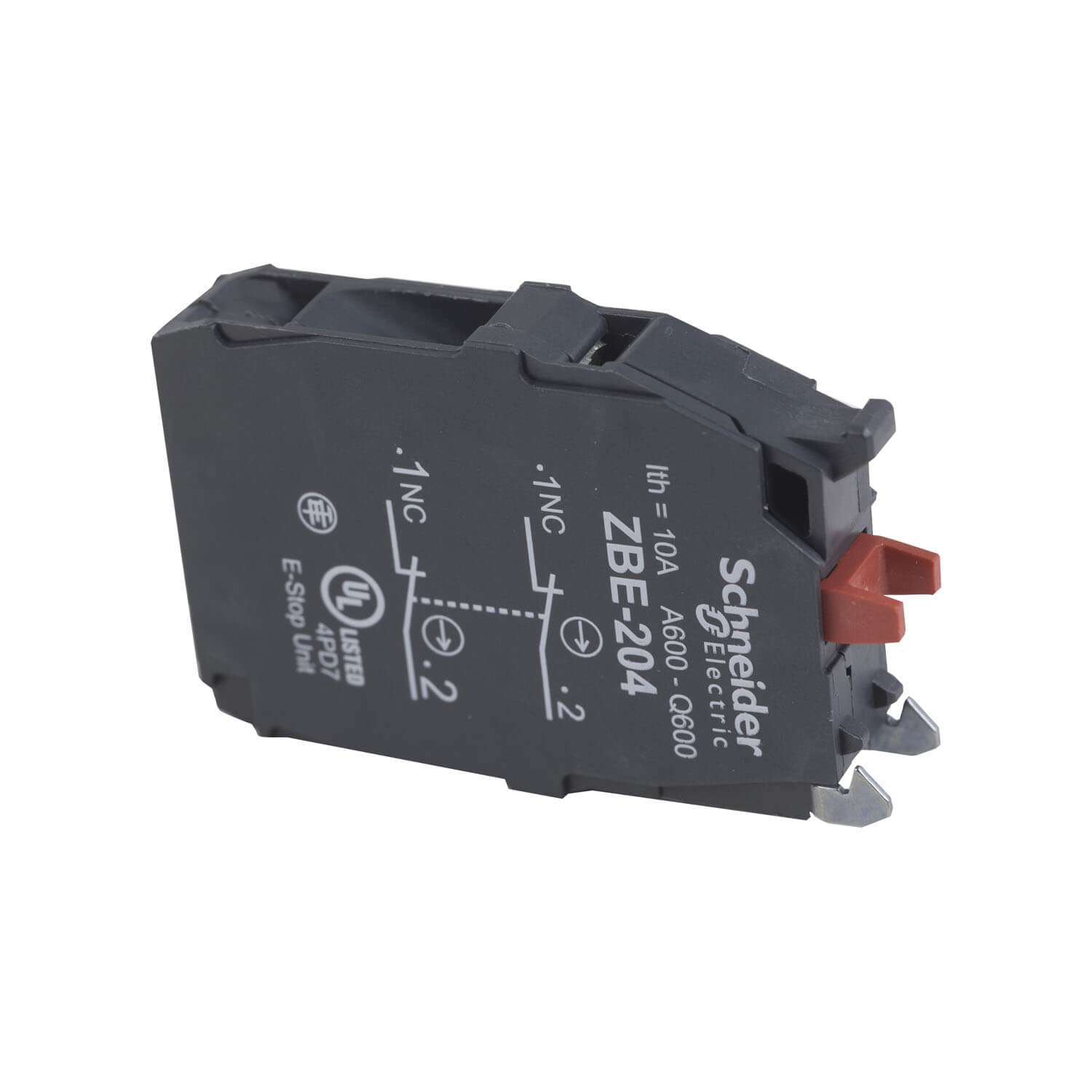

ZBE204 Double contact block’s for head Ø22 2NC screw clamp terminal
Specification：
| range of product |
Harmony XB4
Harmony XB5 |
|
|---|---|---|
| product or component type |
Contact block
|
|
| device short name |
ZBE
|
|
| sale per indivisible quantity |
5
|
|
| IP degree of protection |
IP20 conforming to IEC 60529
|
|
| contacts type and composition |
2 NC
|
|
| contact operation |
Slow-break
|
|
| contact block type |
Double
|
|
| contacts usage |
Standard contacts
|
|
| connections – terminals |
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1
Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1 |
| net weight |
0.02 kg
|
|
|---|---|---|
| positive opening |
With conforming to EN/IEC 60947-5-1 appendix K
|
|
| operating travel |
1.5 mm (NC changing electrical state)
4.3 mm (total travel) |
|
| operating force |
3.4 N NC changing electrical state
|
|
| mechanical durability |
10000000 cycles
|
|
| tightening torque |
0.8…1.2 N.m conforming to EN 60947-1
|
|
| shape of screw head |
Cross compatible with pozidriv No 1 screwdriver
Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
|
| contacts material |
Silver alloy (Ag/Ni)
|
|
| short-circuit protection |
10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
|
|
| [Ith] conventional free air thermal current |
10 A conforming to EN/IEC 60947-5-1
|
|
| [Ui] rated insulation voltage |
600 V (pollution degree 3) conforming to EN 60947-1
|
|
| [Uimp] rated impulse withstand voltage |
6 kV EN 60947-1
|
|
| [Ie] rated operational current |
3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1
6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1 |
|
| electrical durability |
1000000 cycles, AC-15, 1 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 1.5 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.15 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C |
|
| electrical reliability |
Λ < 10exp(-7), 1 mA in clean environment conforming to EN/IEC 60947-5-4
Λ < 10exp(-8), 5 mA in clean environment conforming to EN/IEC 60947-5-4 |
|
| mounting of block |
Front mounting
|
|
| electrical composition code |
C2 (quantity <= 3)
C4 (quantity <= 2) C6 (quantity <= 2) C8 (quantity <= 1) C10 (quantity <= 2) C13 (quantity <= 3) M2 (quantity <= 2) M4 (quantity <= 2) M8 (quantity <= 2) |
|
| device presentation |
Basic element
|
| protective treatment |
TH
|
|
|---|---|---|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-40…70 °C
|
|
| standards |
EN/IEC 60947-5-1
CSA C22.2 No 14 JIS C8201-5-1 EN/IEC 60947-5-4 EN/IEC 60947-1 UL 508 JIS C8201-1 |
|
| product certifications |
CCC
CSA GL RINA BV DNV LROS (Lloyds register of shipping) UL GOST |
|
| vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
18 g
|
|
| Package 1 Height |
4.4 cm
|
|
| Package 1 width |
5.4 cm
|
|
| Package 1 Length |
5.8 cm
|
|
| Package 2 Weight |
93 g
|
|
| Package 3 Weight |
7.943 kg
|
