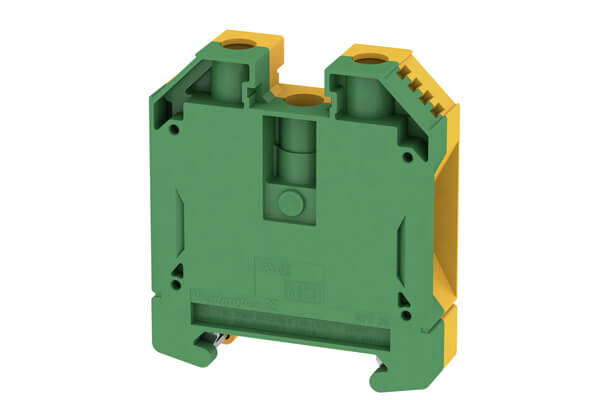

1010500000 PE terminal, Screw connection, 35 mm², 4200 A (35 mm²), Green/yellow
Specification：
| Type | WPE 35 |
| Order No. | 1010500000 |
| Version | PE terminal, Screw connection, 35 mm², 4200 A (35 mm²), Green/yellow |
| Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Rated cross-section | 35 mm² |
| Rated voltage to adjoining terminal | 800 V |
| Standards | IEC 60947-7-2 |
| Volume resistance according to IEC 60947-7-x | 0.26 mΩ |
| Rated impulse withstand voltage to adjacent terminal | 8 kV |
| Pollution severity | 3 |
