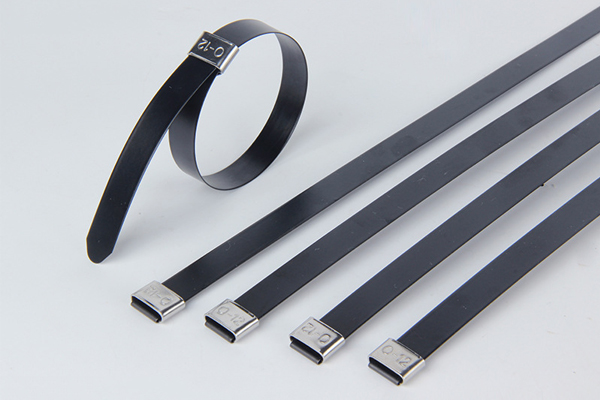

Black Cable Ties Stainless Steel O type Cable Ties
Specification：
Material: Stainless Steel Grade 304 or 316
Coating: Polyester/Epoxy, Nylon 11
Working Temperature: -80℃ to 150℃
Description: Black with Metallic Buckle
Flammability: Fireproof
UV-resistant, Halogen Free, Non-toxic
Features: Self-locking, for installing easier and faster. Smooth rounded edges, for safe handling. Black Cable Ties Ties also available with coating for customized applications.
| Item No. | Width | Length | Thickness | Max.Bundle Dia. | Min.Bundle Dia. | Min. Tensile Strength | ||||||
| mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | N | lbs | |
| BZ-OP 12×150 | 12 | 0.47 | 150 | 5.91 | 0.45 | 0.018 | 32 | 1.25 | 25.4 | 1.00 | 220 | 50 |
| BZ-OP 12×200 | 200 | 7.87 | 48 | 1.88 | ||||||||
| BZ-OP 12×250 | 250 | 9.84 | 64 | 2.51 | ||||||||
| BZ-OP 12×300 | 300 | 11.81 | 80 | 3.13 | ||||||||
| BZ-OP 12×350 | 350 | 13.78 | 96 | 3.76 | ||||||||
| BZ-OP 12×400 | 400 | 15.75 | 111 | 4.39 | ||||||||
| BZ-OP 12×500 | 500 | 19.69 | 143 | 5.64 | ||||||||
| BZ-OP 12×600 | 600 | 23.62 | 175 | 6.90 | ||||||||
| BZ-OP 12×700 | 700 | 27.56 | 207 | 8.15 | ||||||||
| BZ-OP 12×800 | 800 | 31.50 | 239 | 9.40 | ||||||||
| BZ-OP 15×150 | 15 | 0.59 | 150 | 5.91 | 0.45 | 0.018 | 32 | 1.26 | 25.4 | 1.00 | 265 | 60 |
| BZ-OP 15×200 | 200 | 7.87 | 48 | 1.88 | ||||||||
| BZ-OP 15×250 | 250 | 9.84 | 64 | 2.51 | ||||||||
| BZ-OP 15×300 | 300 | 11.81 | 80 | 3.13 | ||||||||
| BZ-OP 15×350 | 350 | 13.78 | 96 | 3.76 | ||||||||
| BZ-OP 15×400 | 400 | 15.75 | 111 | 4.39 | ||||||||
| BZ-OP 15×500 | 500 | 19.69 | 143 | 5.64 | ||||||||
| BZ-OP 15×600 | 600 | 23.62 | 175 | 6.90 | ||||||||
| BZ-OP 15×700 | 700 | 27.56 | 207 | 8.15 | ||||||||
| BZ-OP 15×800 | 800 | 31.50 | 239 | 9.40 | ||||||||
| BZ-OP 15×1000 | 1000 | 39.37 | 303 | 11.91 | ||||||||
