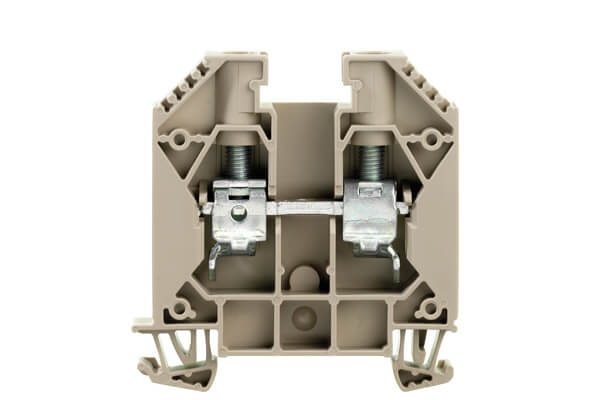

1020400000 Feed-through terminal, Screw connection, 16 mm², 1000 V, 76 A, dark beige

1020400000 Feed-through terminal, Screw connection, 16 mm², 1000 V, 76 A, dark beige

Category:

1020400000 Feed-through terminal, Screw connection, 16 mm², 1000 V, 76 A, dark beige

Specification：

Type WDU 16
Order No. 1020400000
Version Feed-through terminal, Screw connection, 16 mm², 1000 V, 76 A, dark beige
Operating temperature range For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Continuous operating temp., min. -60 °C
Continuous operating temp., max. 130 °C
Rated cross-section 16 mm²
Rated voltage 1,000 V
Rated current 76 A
Current at maximum wires 101 A
Standards IEC 60947-7-1
Volume resistance according to IEC 60947-7-x 0.42 mΩ
Rated impulse withstand voltage 8 kV
Pollution severity 3
