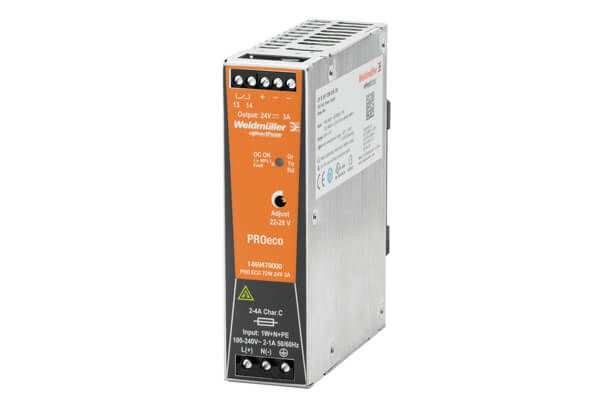

1469470000 PRO ECO 72W 24V 3A Power supply, switch-mode power supply unit, 24 V

Category:

1469470000 PRO ECO 72W 24V 3A Power supply, switch-mode power supply unit, 24 V

Specification:

Type PRO ECO 72W 24V 3A
Order No. 1469470000
Version Power supply, switch-mode power supply unit, 24 V
AC current consumption 0,55 A @ 230 V AC / 1,04 A @ 110 V AC
AC input voltage range 85…264 V AC (derating at 100 V AC)
Connection system Screw connection
DC current consumption 0,22 A @ 370 V DC / 0,68 A @ 120 V DC
DC input voltage range 80…370 V DC (Derating @ 120 V DC)
Frequency range AC 47…63 Hz
Input frequency 47…63 Hz
Input fuse (internal) Yes
Inrush current max. 40 A
Rated input voltage 100…240 V AC (wide-range input)
Recommended back-up fuse 2 A / DI, safety fuse
6 A, Char. B, circuit breaker
2…4 A, Char. C circuit breaker
Surge protection Varistor
Capacitive load unrestricted
Connection system Screw connection
Continous output current @ UNominal 3 A @ 55 °C, 2,25 A @ 70 °C
Nominal output current for Unom 3 A at 55 °C
Output power 72 W
Output voltage 24 V
Output voltage 22…28 V (adjustable via potentiometer)
Overload protection Yes
Parallel connection option yes, max. 5
Protection against inverse voltage Yes
Ramp-up time ≤ 100 ms
Rated output voltage 24 V DC ± 1 %
Residual ripple, breaking spikes < 50 mVPP @ 24 V DC, IN
AC failure bridging time @ Inom > 100 ms @ 230 V AC / > 20 ms @ 115 V AC
Degree of efficiency 87 %
Earth leakage current, max. 3.5 mA
Housing version Metal, corrosion resistant
Indication Green LED (Uoutput > 21.6 V DC), Yellow LED (loutput > 90 % IRated typ. ), red LED (overload, overtemperature, short-circuit, Uoutput < 20.4 V DC)
MTBF > 500,000 h in accordance with IEC 61709 (SN29500)
Max. perm. air humidity (operational) 5 %…95 % RH
Mounting position, installation notice on terminal rail TS 35
Operating temperature -25 °C…70 °C
Power factor (approx.) > 0.5…230 V AC / > 0.53…115 V AC
Power loss, idling 4 W
Power loss, nominal load 9.5 W
Protection against over-heating Yes
Protection against reverse voltages from the load 30…35 V DC
Protection degree IP20
Short-circuit protection Yes
