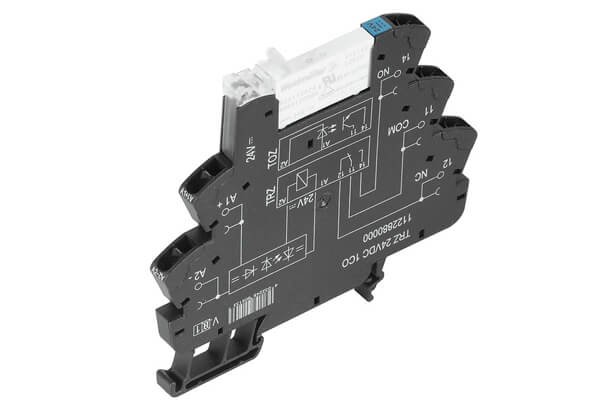

1122880000 TRZ 24VDC 1CO TERMSERIES, Relays, No. of contacts: 1 CO contact AgNi, Rated control voltage: 24 V DC ±20 %, Continuous current: 6 A, Tension-clamp connection
1122880000 TRZ 24VDC 1CO TERMSERIES, Relays, No. of contacts: 1 CO contact AgNi, Rated control voltage: 24 V DC ±20 %, Continuous current: 6 A, Tension-clamp connection
Specification：
| Type | TRZ 24VDC 1CO |
| Order No. | 1122880000 |
| Version | TERMSERIES, Relays, No. of contacts: 1 CO contact AgNi, Rated control voltage: 24 V DC ±20 %, Continuous current: 6 A, Tension-clamp connection |
| Ambient temperature (operational), max. | 60 °C |
| Connection cross-section AWG, min. | AWG 26 |
| Connection cross-section AWG, max. | AWG 14 |
| Type of conductor | rigid copper conductor, flexible copper conductor |
| Pollution severity level | 2 |
| Rated control voltage | 24 V DC ± 20 % |
| Rated current DC | 11.5 mA |
| Power rating | 280 mW |
| Pull-in/drop-out voltage, typ. | 16 V / 3 V DC |
| Pull-in/drop-out current, typ. | 7.5 mA / 1 mA DC |
| Status indicator | Green LED |
| Protective circuit | Free-wheeling diode, Reverse polarity protection |
| Coil voltage of the replacement relay deviating from the rated control voltage | No |
| Coil voltage of the replacement relay | 24 V DC |
| Rated switching voltage | 250 V AC |
| Max. switching voltage, AC | 250 V |
| Max. switching voltage, DC | 250 V |
| Continuous current | 6 A |
| Inrush current | 20 A / 20 ms |
| AC switching capacity (resistive), max. | 1500 VA |
| DC switching capacity (resistive), max. | 144 W @ 24 V |
| Switch-on delay | ≤ 6 ms |
| Switch-off delay | ≤ 16 ms |
| Min. switching power | 1 mA @ 24 V, 10 mA @ 12 V, 100 mA @ 5 V |
| Max. switching frequency at rated load | 0.1 Hz |
