Specification:

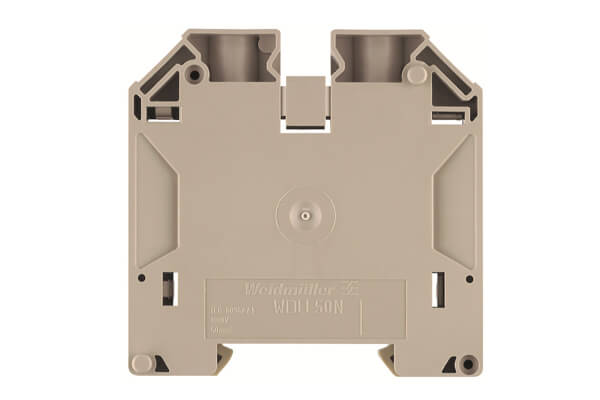

Type | WDU 50N IR |
Order No. | 1186630000 |
Version | Feed-through terminal, Screw connection, 50 mm², 1000 V, 150 A, dark beige |
Continuous operating temp., min. | -60 °C |
Continuous operating temp., max. | 130 °C |
Rated cross-section | 50 mm² |
Rated voltage | 1,000 V |
Rated current | 150 A |
Current at maximum wires | 192 A |
Standards | IEC 60947-7-1 |
Volume resistance according to IEC 60947-7-x | 0.21 mΩ |
Rated impulse withstand voltage | 8 kV |
Pollution severity | 3 |
