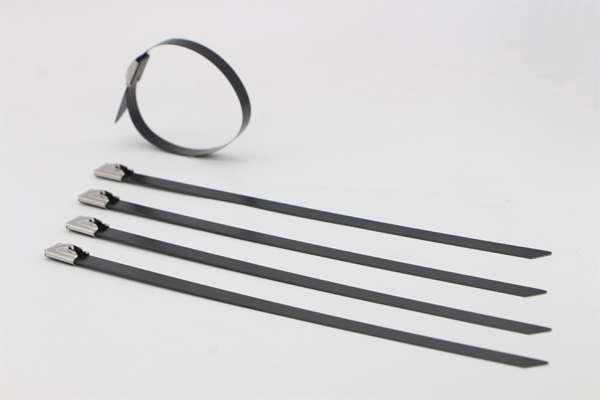

Stainless Steel Zip Ties PVC Coated Self Locking Ball Type

Stainless Steel Zip Ties PVC Coated Self Locking Ball Type

Specification:

Material: Stainless Steel Grade 304 or 316

Coating: Polyester/Epoxy, Nylon 11

Working Temperature: -40℃ to 85℃

Flammability: Fireproof

UV-resistant, Halogen Free, Non-toxic

Features: Metallic buckle tell this from black nylon cable ties. PVC coating band is better in thickness and softness than the Polyester one. It also offers extra protection and avoids rusting.



Model Number Width Length Thickness Max.Bundle Dia. Min.Bundle Dia. Min. Tensile Strength
mm inch mm inch mm inch mm inch mm inch N lbs
BZ-C 5.6×150 5.6 0.22 150 5.9 1.00 0.039 37 1.46 12.7 0.50 350 80
BZ-C 5.6×200 200 7.9 50 1.97
BZ-C 5.6×250 250 9.8 63 2.48
BZ-C 5.6 x 350 350 13.8 89 3.50
BZ-C 5.6×450 450 17.7 115 4.53
BZ-C 5.6×600 600 23.6 154 6.06
BZ-C 5.6×750 750 29.5 178 7.01
BZ-C 5.6×900 900 35.4 229 9.02
BZ-C 9×200 9 0.35 200 7.9 1.00 0.039 52 2.05 25.4 1.00 450 100
BZ-C 9×250 250 9.8 65 2.56
BZ-C 9×300 300 11.8 78 3.07
BZ-C 9×400 400 15.7 102 4.02
BZ-C 9 x 500 500 19.7 128 5.04
BZ-C 9×650 650 25.6 165 6.50
BZ-C 9 x 800 800 31.5 204 8.03
BZ-C 9×1000 1000 39.4 254 10.0
BZ-C 16×350 16 0.63 350 13.8 1.20 0.047 89 3.50 25.4 1.00 900 200
BZ-C 16×450 450 17.7 115 4.53
BZ-C 16×550 550 21.7 141 5.55
BZ-C 16×700 700 27.6 179 7.05
BZ-C 16×850 850 33.5 216 8.50
BZ-C 16×1100 1100 43.3 280 11.02
