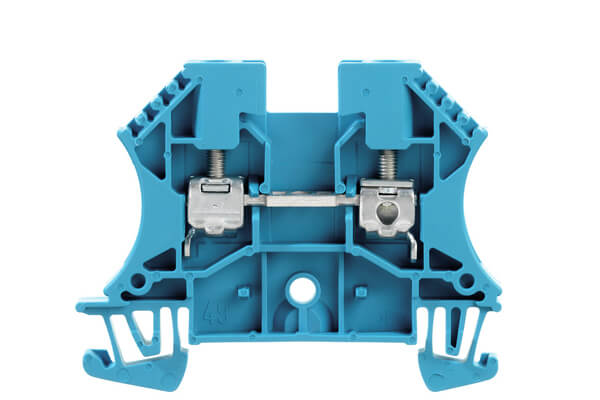

1200800000 Feed-through terminal, Screw connection, 4 mm², 800 V, 32 A, blue

Category:

1200800000 Feed-through terminal, Screw connection, 4 mm², 800 V, 32 A, blue

Specification:

Type WDU 4 BL
Order No. 1020180000
Version Feed-through terminal, Screw connection, 4 mm², 800 V, 32 A, blue
Operating temperature range For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Continuous operating temp., min. -60 °C
Continuous operating temp., max. 130 °C
Rated cross-section 4 mm²
Rated voltage 800 V
Rated current 32 A
Current at maximum wires 41 A
Standards IEC 60947-7-1
Volume resistance according to IEC 60947-7-x 1 mΩ
Rated impulse withstand voltage 8 kV
Pollution severity 3
