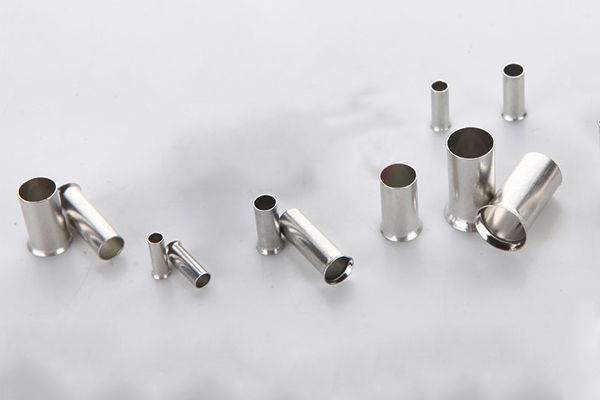

Non-Insulated Cord End Terminals Wire Connector BEN

Non-Insulated Cord End Terminals Wire Connector BEN

Category:

Non-Insulated Cord End Terminals Wire Connector BEN

Specification:

Material: Copper, Tin-plated Copper
Certification: CE, RoHS, UL Approved
Working Temperature: -40 degrees to 80-degree
Note：series from 0.25to 16 installed
Non-Insulated Ring Terminals can be crimped or soldered, widely used in the electrical wire connecting of the switchboard, mechanical equipment factory and so on

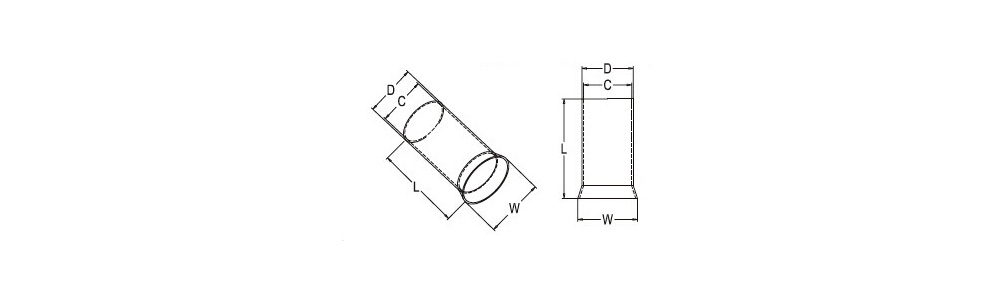

Item No. DIMENSION Insulated square
L D C W
mm mm mm mm A.W.G mm²
BEN0.5-6 6 1.3 1 1.7 #22 0.5
BEN0.5-8 8 1.3 1 1.7 #22 0.5
BEN0.5-10 10 1.3 1 1.7 #22 0.5
BEN0.5-12 12 1.3 1 1.7 #22 0.5
BEN0.75-6 6 1.5 1.2 1.9 #20 0.75
BEN0.75-8 8 1.5 1.2 1.9 #20 0.75
BEN0.75-10 10 1.5 1.2 1.9 #20 0.75
BEN0.75-12 12 1.5 1.2 1.9 #20 0.75
BEN1.0-6 6 1.7 1.4 2.2 #18 1
BEN1.0-8 8 1.7 1.4 2.2 #18 1
BEN1.0-10 10 1.7 1.4 2.2 #18 1
BEN1.0-12 12 1.7 1.4 2.2 #18 1
BEN1.5-8 8 2 1.7 2.5 #16 1.5
BEN1.5-10 10 2 1.7 2.5 #16 1.5
BEN1.5-12 12 2 1.7 2.5 #16 1.5
BEN1.5-18 18 2 1.7 2.5 #16 1.5
BEN2.5-8 8 2.5 2.2 3.3 #14 2.5
BEN2.5-10 10 2.5 2.2 3.3 #14 2.5
BEN2.5-12 12 2.5 2.2 3.3 #14 2.5
BEN2.5-18 18 2.5 2.2 3.3 #14 2.5
BEN4.0-9 9 3.2 2.8 3.9 #12 4
BEN4.0-12 12 3.2 2.8 3.9 #12 4
BEN4.0-18 18 3.2 2.8 3.9 #12 4
BEN6.0-10 10 3.9 3.5 4.8 #10 6
BEN6.0-12 12 3.9 3.5 4.8 #10 6
BEN6.0-15 15 3.9 3.5 4.8 #10 6
BEN6.0-18 18 3.9 3.5 4.8 #10 6
BEN10-12 12 4.9 4.5 5.8 #7 10
BEN10-15 15 4.9 4.5 5.8 #7 10
BEN10-18 18 4.9 4.5 5.8 #7 10
BEN16-12 12 6.2 5.8 7.2 #5 16
BEN16-15 15 6.2 5.8 7.2 #5 16
BEN16-18 18 6.2 5.8 7.2 #5 16
BEN25-16 16 7.9 7.5 9.1 #4 25
BEN25-22 22 7.9 7.5 9.1 #4 25
BEN35-16 16 8.7 8.3 10.2 #2 35
BEN35-25 25 8.7 8.3 10.2 #2 35
BEN50-20 20 10.9 10.3 12.4 #1 50
BEN50-25 25 10.9 10.3 12.4 #1 50
