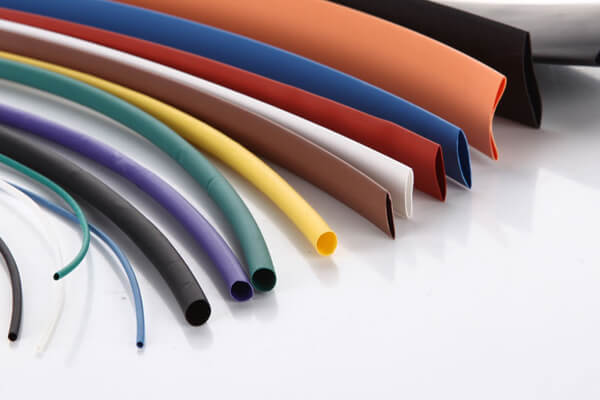

2:1 Single Wall Flexible Heat Shrink tubing HS2S-H

2:1 Single Wall Flexible Heat Shrink tubing HS2S-H

Category:

2:1 Single Wall Flexible Heat Shrink tubing HS2S-H

Specification:

Operating temperature: -55℃ to 125℃
Fully shrink temperature: ≥125℃
RoHS compliant
Color: Black,white,red,blue,yellow,grean,brown,gray,orange,purple
Ratio of shrinking: 2:1
Flame retardant

SIZE AS SUPPLIED AFTER RECOVERY STANDARD PACKAGE
Inch mm INTERNAL DIAMETER mm INTERNAL DIAMETER mm WALL THICKNESS mm SPOOL LENGTH M/spool
3/64 0.8 1.1±0.2 ≤0.50 0.33±0.10 200
1/16 1 1.5±0.2 ≤0.65 0.36±0.10 200
​ 1.5 2.0±0.2 ≤0.85 0.36±0.10 200
3/32 2 2.5±0.2 ≤1.00 0.45±0.10 200
​ 2.5 3.0±0.2 ≤1.30 0.45±0.10 200
1/8 3 3.5±0.2 ≤1.50 0.45±0.10 200
​ 3.5 4.0±0.2 ≤1.80 0.45±0.10 200
​ 4 4.5±0.2 ≤2.00 0.45±0.10 200
3/16 4.5 5.0±0.2 ≤2.30 0.56±0.10 100
​ 5 5.5±0.2 ≤2.50 0.56±0.10 100
​ 5.5 6.00±0.20 ≤2.80 0.56±0.10 100
1/4 6 6.5±0.2 ≤3.00 0.56±0.10 100
5/16 7 7.5±0.3 ≤3.50 0.56±0.10 100
​ 8 8.5±0.3 ≤4.00 0.56±0.10 100
3/8 9 9.5±0.3 ≤4.50 0.56±0.10 100
​ 10 10.5±0.3 ≤5.00 0.56±0.10 100
​ 11 11.5±0.3 ≤5.50 0.56±0.10 100
1/2 12 12.5±0.3 ≤6.00 0.56±0.10 100
​ 13 13.5±0.3 ≤6.50 0.56±0.10 100
​ 14 14.5±0.3 ≤7.00 0.70±0.10 100
5/8 15 15.5±0.4 ≤7.50 0.70±0.10 100
​ 16 16.5±0.4 ≤8.00 0.70±0.10 100
​ 17 17.5±0.4 ≤8.50 0.70±0.10 100
3/4 18 19.0±0.5 ≤9.00 0.70±0.10 100
​ 20 21.0±0.5 ≤10.0 0.83±0.15 100
​ 22 23.0±0.5 ≤11.0 0.83±0.15 100
1 25 26.0±0.5 ≤12.5 0.90±0.15 50
​ 28 29.0±0.5 ≤14.0 0.90±0.15 50
1-1/4 30 31.5±1.0 ≤15.0 1.00±0.15 50
​ 35 36.5±1.0 ≤17.5 1.00±0.15 50
1-1/2 40 41.5±1.0 ≤20.0 1.00±0.15 50
​ 45 46.5±1.0 ≤22.5 1.00±0.15 25
2 50 ≥50 ≤25.0 1.10±0.15 25
​ 60 ≥60 ≤31.0 1.20±0.15 25
​ 70 ≥70 ≤36.0 1.30±0.20 25
3 80 ≥80 ≤41.0 1.30±0.20 25
​ 90 ≥90 ≤46.0 1.30±0.20 25
4 100 ≥100 ≤51.0 1.30±0.20 25
5 120 ≥120 ≤61.0 1.30±0.20 25
6 150 ≥150 ≤76.0 1.30±0.20 25
7 180 ≥180 ≤91.0 1.30±0.30 25
