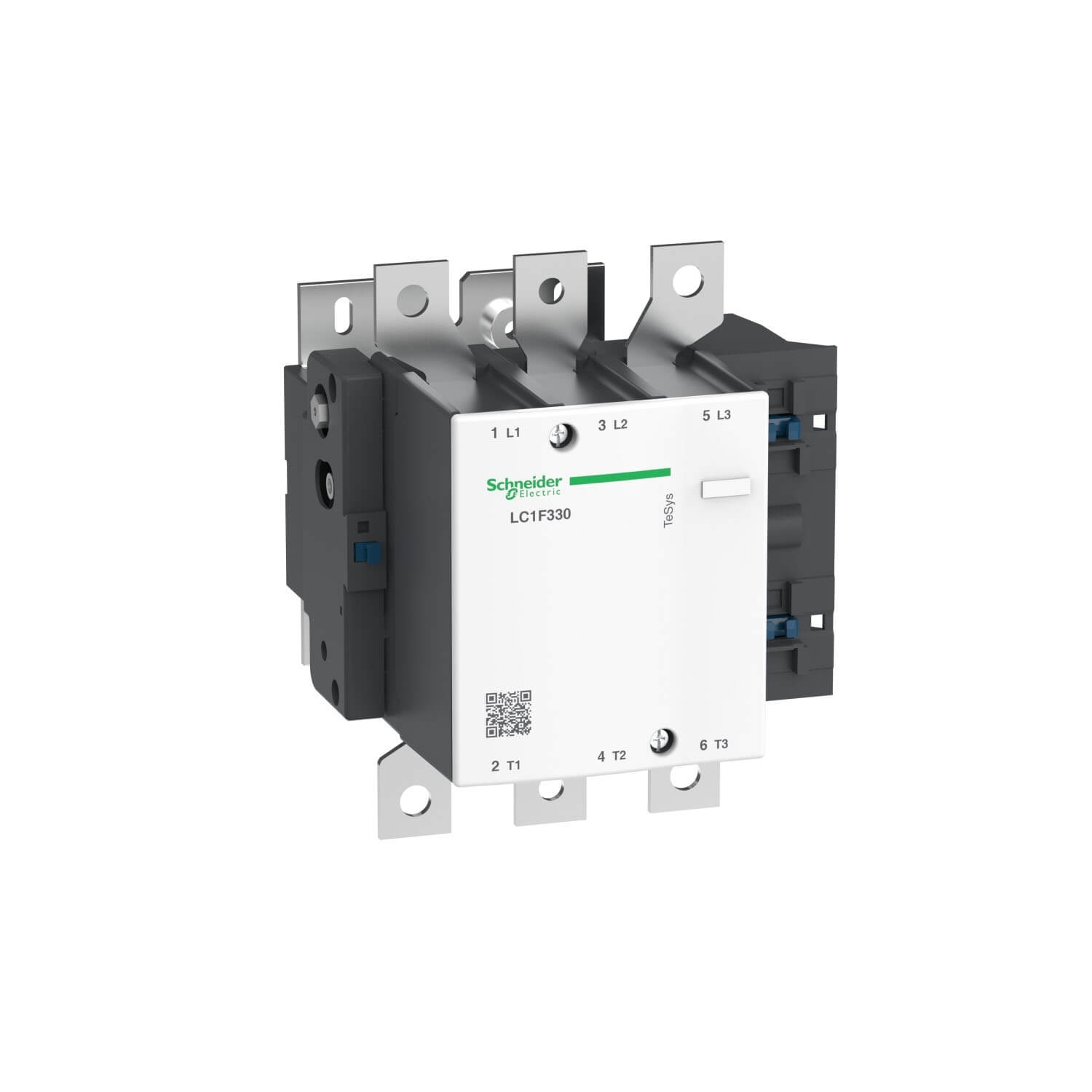

LC1F330U7 TeSys F contactor – 3P (3 NO) – AC-3 – <= 440 V 330 A - coil 240 V AC

Category:

LC1F330U7 TeSys F contactor – 3P (3 NO) – AC-3 – <= 440 V 330 A – coil 240 V AC

Specification:

Main
range
TeSys
product name
TeSys F
product or component type
Contactor
device short name
LC1F
contactor application
Motor control
Resistive load
utilisation category
AC-3
AC-1
AC-4
poles description
3P
power pole contact composition
3 NO
[Ue] rated operational voltage
<= 1000 V AC 50/60 Hz
<= 460 V DC
[Ie] rated operational current
400 A (at <40 °C) at <= 440 V AC AC-1
330 A (at <55 °C) at <= 440 V AC AC-3
motor power kW
160 kW at 380…400 V AC 50/60 Hz (AC-3)
180 kW at 415 V AC 50/60 Hz (AC-3)
200 kW at 440 V AC 50/60 Hz (AC-3)
200 kW at 500 V AC 50/60 Hz (AC-3)
220 kW at 660…690 V AC 50/60 Hz (AC-3)
160 kW at 1000 V AC 50/60 Hz (AC-3)
100 kW at 220…230 V AC 50/60 Hz (AC-3)
59 kW at 400 V AC 50/60 Hz (AC-4)
[Uc] control circuit voltage
240 V AC 40…400 Hz
Complementary
[Uimp] rated impulse withstand voltage
8 kV
overvoltage category
III
[Ith] conventional free air thermal current
400 A (at 40 °C)
rated breaking capacity
2640 A conforming to IEC 60947-4-1
[Icw] rated short-time withstand current
2650 A 40 °C – 10 s
1800 A 40 °C – 30 s
1300 A 40 °C – 1 min
900 A 40 °C – 3 min
750 A 40 °C – 10 min
associated fuse rating
400 A aM at <= 440 V
500 A gG at <= 440 V
average impedance
0.28 mOhm – Ith 400 A 50 Hz
[Ui] rated insulation voltage
1000 V conforming to IEC 60947-4-1
1500 V conforming to VDE 0110 group C
power dissipation per pole
44 W AC-1
31 W AC-3
mounting support
Plate
standards
EN 60947-4-1
IEC 60947-4-1
JIS C8201-4-1
EN 60947-1
IEC 60947-1
product certifications
CB
ABS
CSA
BV
UL
RINA
LROS (Lloyds register of shipping)
DNV
RMRoS
connections – terminals
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end
Power circuit: lugs-ring terminals 1 cable(s) 240 mm²
Power circuit: bar 2 cable(s) – busbar cross section: 30 x 5 mm
Power circuit: bolted connection
tightening torque
Control circuit: 1.2 N.m
Power circuit: 35 N.m
control circuit voltage limits
Operational: 0.85…1.1 Uc 40…400 Hz (at 55 °C)
Drop-out: 0.35…0.55 Uc 40…400 Hz (at 55 °C)
inrush power in VA
650 VA 40…400 Hz cos phi 0.9 (at 20 °C)
hold-in power consumption in VA
10 VA 40…400 Hz cos phi 0.9 (at 20 °C)
heat dissipation
8 W
operating time
40…65 ms closing
100…170 ms opening
mechanical durability
10 Mcycles
maximum operating rate
2400 cyc/h 55 °C
compatibility code
LC1F
motor power range
55…100 kW at 200…240 V 3 phases
110…220 kW at 480…500 V 3 phases
110…220 kW at 380…440 V 3 phases
motor starter type
Direct on-line contactor
contactor coil voltage
240 V AC standard
Environment
IP degree of protection
IP20 front face with shrouds conforming to IEC 60529
IP20 front face with shrouds conforming to VDE 0106
protective treatment
TH
ambient air temperature for operation
-5…55 °C
ambient air temperature for storage
-60…80 °C
permissible ambient air temperature around the device
-40…70 °C
height
206 mm
width
213 mm
depth
219 mm
net weight
8.6 kg
