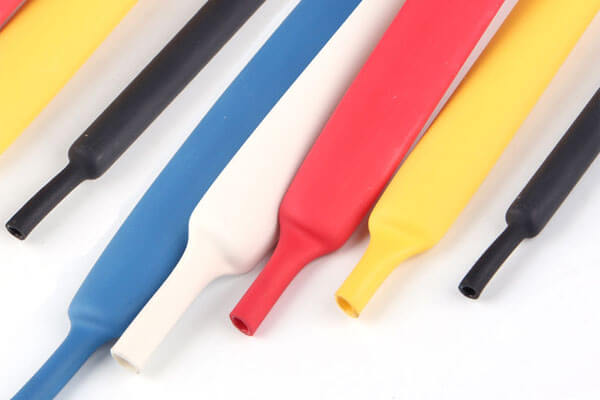

3:1 Thick Adhesive-Lined Dual Wall Heat-Shrink Tubing with Inner Glue HS3D-GL
Specification:
Low longitudinal shrinkage
Halogen-Free
Continuous operating temperature:-45℃-125℃
Min Shrink Temperature:105℃
Shrink ratio: 3:1
| Dimensions | Expanded | After Recovery | Standard Package | |||
| Size | Internal Diameter (mm) | Internal Diameter (mm) | Total Wall Thickness (mm) | Adhesive Thickness (mm) | Spool Length M/spool | |
| Inch | mm | 3.2 | 1 | 0.95±0.15 | 0.45±0.10 | 200 |
| 1/ 8 | 3.2 | 4.8 | 1.6 | 1.20±0.15 | 0.60±0.10 | 100 |
| 3/16 | 4.8 | 6.4 | 2.2 | 1.35±0.15 | 0.70±0.10 | 100 |
| 1/ 4 | 6.4 | 7.9 | 2.7 | 1.50±0.15 | 0.75±0.10 | 100 |
| 5/16 | 7.9 | 9.5 | 3.2 | 1.50±0.15 | 0.75±0.10 | 50 |
| 3 /8 | 9.5 | 12.7 | 4.2 | 1.80±0.20 | 0.90±0.10 | 1.22 OR 25M/Roll |
| 1 /2 | 12.7 | 15 | 5.2 | 1.80±0.20 | 0.90±0.10 | 1.22 OR 25M/Roll |
| 5 /8 | 15 | 19.1 | 6.3 | 2.00±0.20 | 1.00±0.10 | 1.22 OR 25M/Roll |
| 3 /4 | 19.1 | 25.4 | 8.5 | 2.10±0.20 | 1.05±0.10 | 1.22 OR 25M/Roll |
| 1 | 25.4 | 30 | 10.2 | 2.20±0.20 | 1.05±0.10 | 1.22 OR 25M/Roll |
| 1-1/4 | 30 | 38.1 | 13.5 | 2.40±0.20 | 1.15±0.10 | 1.22 OR 25M/Roll |
