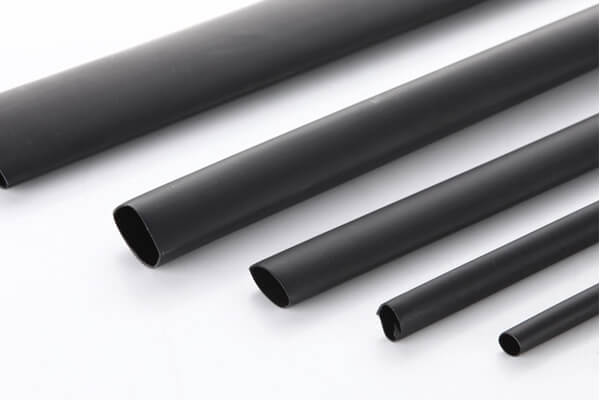

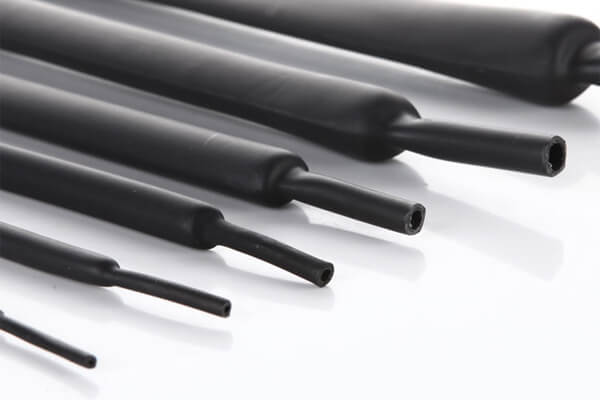

4:1 Shrink Ratio Semi-rigid Dual Wall Heat-shrink Tube Adhesive-Lined Cross-Linked HS4D-GHF
Specification:
4:1 shrink ratio
Halogen-free
Super sealing against water, moisture, or other contaminants
Continuous operating temperature:-45℃-125℃
Shrink Temperature:125℃
RoHS, Sony compliant
| Size | Expanded | After Recovery | Standard Package | |||
| Inch | mm | Internal Diameter (mm) | Internal Diameter (mm) | Total Wall Thickness (mm) | Adhesive Thickness (mm) | Spool Length M/spool |
| 2/13 | 4 | 4 | 0.95 | 1.40±0.30 | 060±0.10 | 200 |
| 1/4 | 6 | 6 | 1.27 | 1.70±0.30 | 0.80±0.10 | 100 |
| 5/16 | 8 | 8 | 1.65 | 2.00±0.30 | 0.95±0.10 | 100 |
| 1/2 | 12 | 12 | 2.41 | 2.45±0.40 | 1.20±0.20 | 1.22 OR 25M/Roll |
| 3/4 | 18 | 18 | 4.45 | 2.60±0.40 | 1.40±0.20 | 1.22 OR 25M/Roll |
