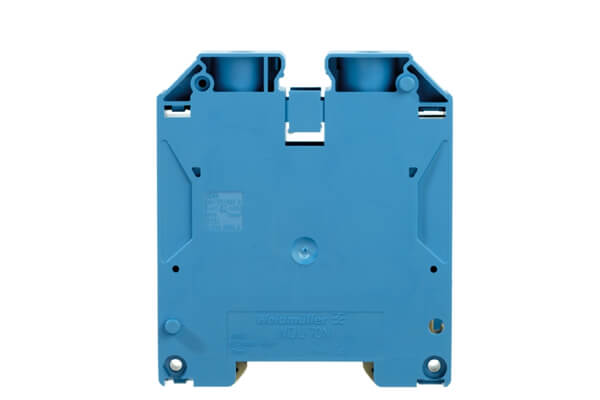

9512420000 Feed-through terminal, Screw connection, 70 mm², 1000 V, 192 A, blue
Specification：
| Type | WDU 70N/35 BL |
| Order No. | 9512420000 |
| Version | Feed-through terminal, Screw connection, 70 mm², 1000 V, 192 A, blue |
| Operating temperature range | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Continuous operating temp., min. | -60 °C |
| Continuous operating temp., max. | 130 °C |
| Rated cross-section | 70 mm² |
| Rated voltage | 1,000 V |
| Rated current | 192 A |
| Current at maximum wires | 232 A |
| Standards | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x | 0.17 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Pollution severity | 3 |
