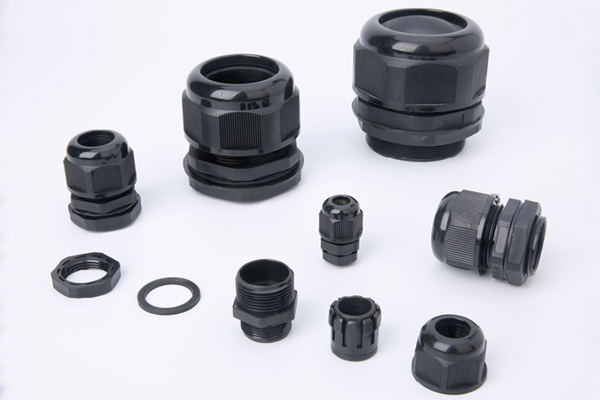

Split Cable Gland Nylon 66 Water-proof IP68
Specification:

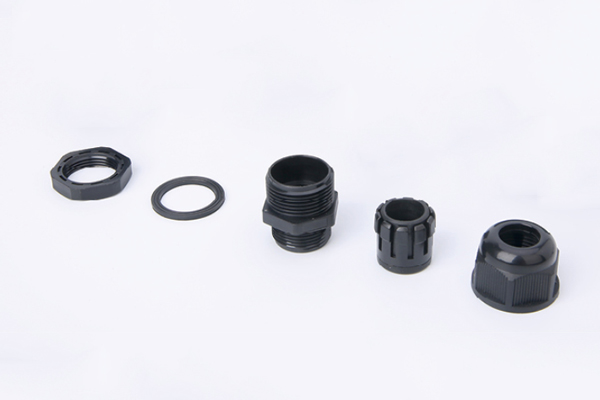

Material:
PA66 (Nylon)
Claw: PA66 (Nylon) , UL94-V2
Hermetic seal: NBR, Silicone rubber
O-ring: NBR, Silicone rubber
Protection rating: IP68 – 10bar
Work / Operating Temperature:
Static state: -40 °C to 100 ° C, Short time to 120°C;
Dynamic state: -20 °C to 80° C, Short time to 100°C
Color: Gray, White, Black and so on.
Certificate: CE, RoHS approved
waterproof. IP68
(In mm)

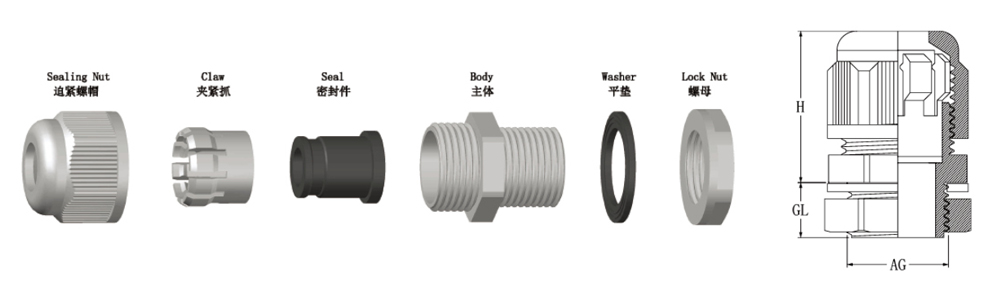

| Item | Cable Range | Thread Length GL | Thread O.D. AG | Spanner Size | Item No. |
| MPG7 | 4-8 | 8.5 | 12.5 | 17/19 | NMPG7-8 |
| 3-6.5 | 8.5 | 12.5 | 17/19 | NMPG7-6.5 | |
| 3-6.7 | 8.5 | 12.5 | 17/19 | NMPG7-6.7 | |
| 3-5.5 | 8.5 | 12.5 | 17/19 | NMPG7-5.5 | |
| MPG9 | 4-8 | 8.5 | 15.2 | 22/19 | NMPG9-8 |
| 3-5.5 | 8.5 | 15.2 | 22/19 | NMPG9-5.5 | |
| MPG11 | 6-10 | 10 | 18.6 | 24/22 | NMPG11-10 |
| 2-5 | 10 | 18.6 | 24/22 | NMPG11-5 | |
| 4-7 | 10 | 18.6 | 24/22 | NMPG11-7 | |
| MPG13.5 | 7-12.5 | 10 | 20.4 | 27/24 | NMPG13.5-12.5 |
| 6-10.5 | 10 | 20.4 | 27/24 | NMPG13.5-10.5 | |
| 5-9 | 10 | 20.4 | 27/24 | NMPG13.5-9 | |
| MPG16 | 8.5-14 | 10.8 | 22.5 | 30/27 | NMPG16-14 |
| 6-11 | 10.8 | 22.5 | 30/27 | NMPG16-11 | |
| MPG21 | 12.5-18 | 12 | 28.3 | 36/33 | NMPG21-18 |
| 10-16 | 12 | 28.3 | 36/33 | NMPG21-16 | |
| MPG29 | 18-25 | 15 | 37 | 46/41 | NMPG29-25 |
| 15-22 | 15 | 37 | 46/41 | NMPG29-22 | |
| MPG36 | 24-32 | 15 | 47 | 57/50 | NMPG36-32 |
| 20-26 | 15 | 47 | 57/50 | NMPG36-26 | |
| MPG42 | 31-41 | 15.5 | 54 | 64/62 | NMPG36-41 |
| 26-32 | 15.5 | 54 | 64/62 | NMPG36-32 |
