Specification:
range of product |

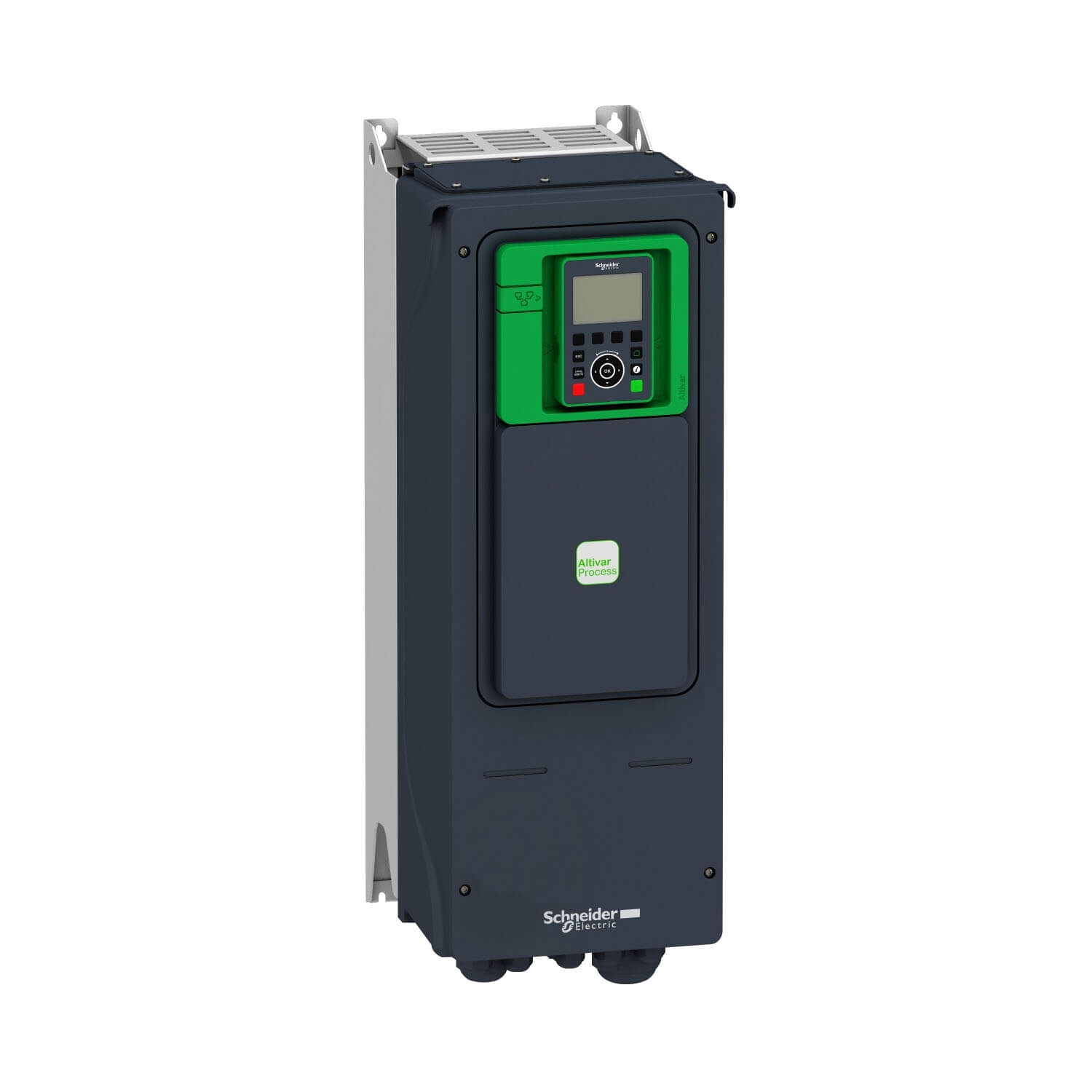

Altivar Process ATV600
|
|
---|---|---|
product or component type |
Variable speed drive
|
|
product specific application |
Process and utilities
|
|
device short name |
ATV650
|
|
variant |
Standard version
|
|
product destination |
Synchronous motors
Synchronous motors |
|
EMC filter |
Integrated with 150 m conforming to EN/IEC 61800-3 category C3
Integrated with 50 m conforming to EN/IEC 61800-3 category C2 |
|
IP degree of protection |
IP55 conforming to IEC 60529
IP55 conforming to IEC 61800-5-1 |
|
type of cooling |
Forced convection
|
|
supply frequency |
50…60 Hz – 5…5 %
|
|
network number of phases |
3 phases
|
|
[Us] rated supply voltage |
380…480 V – 15…10 %
|
|
motor power kW |
0.37 kW (heavy duty)
1.5 kW (normal duty) |
|
motor power hp |
0.5 hp heavy duty
2 hp normal duty |
|
line current |
1.3 A at 480 V (normal duty)
0.9 A at 380 V (heavy duty) 0.8 A at 480 V (heavy duty) 3 A at 380 V (normal duty) |
|
prospective line Isc |
50 kA
|
|
apparent power |
0.7 kVA at 480 V (heavy duty)
2.2 kVA at 480 V (normal duty) |
|
continuous output current |
1.5 A at 4 kHz for heavy duty
4 A at 4 kHz for normal duty |
|
maximum transient current |
2.3 A during 60 s (heavy duty)
4.4 A during 60 s (normal duty) |
|
asynchronous motor control profile |
Variable torque standard
Constant torque standard Optimized torque mode |
|
synchronous motor control profile |
Synchronous reluctance motor
Permanent magnet motor |
|
Output frequency |
0.0001…0.5 kHz
|
|
speed drive output frequency |
0.1…599 Hz
|
|
nominal switching frequency |
4 kHz
|
|
switching frequency |
4…12 kHz with derating factor
2…12 kHz adjustable |
|
safety function |
STO (safe torque off) SIL 3
|
|
discrete input logic |
16 preset speeds
|
|
communication port protocol |
Ethernet
Modbus TCP Modbus TCP |
|
option card |
Slot A: communication module, Profinet
Slot A: communication module, DeviceNet Slot A: communication module, Modbus TCP/EtherNet/IP Slot A: communication module, CANopen daisy chain RJ45 Slot A: communication module, CANopen SUB-D 9 Slot A: communication module, CANopen screw terminals Slot A/slot B: digital and analog I/O extension module Slot A/slot B: output relay extension module Slot A: communication module, Ethernet IP/Modbus TCP/MD-Link Communication module, BACnet MS/TP Communication module, Ethernet Powerlink Slot A: communication module, Profibus DP V1 |
output voltage |
<= power supply voltage
|
|
---|---|---|
permissible temporary current boost |
1.5 x In during 60 s (heavy duty)
1.1 x In during 60 s (normal duty) |
|
motor slip compensation |
Not available in permanent magnet motor law
Automatic whatever the load Can be suppressed Adjustable |
|
acceleration and deceleration ramps |
Linear adjustable separately from 0.01…9999 s
|
|
braking to standstill |
By DC injection
|
|
protection type |
Safe torque off: motor
Motor phase break: motor Thermal protection: drive Safe torque off: drive Overheating: drive Overcurrent between output phases and earth: drive Overload of output voltage: drive Short-circuit protection: drive Motor phase break: drive Overvoltages on the DC bus: drive Line supply overvoltage: drive Line supply undervoltage: drive Line supply phase loss: drive Overspeed: drive Break on the control circuit: drive Thermal protection: motor |
|
frequency resolution |
Analog input: 0.012/50 Hz
Display unit: 0.1 Hz |
|
electrical connection |
Line side: screw terminal4…6 mm²/AWG 12…AWG10
Motor: screw terminal4…6 mm²/AWG 12…AWG10 Control: removable screw terminals0.5…1.5 mm²/AWG 20…AWG 16 |
|
connector type |
RJ45 (on the remote graphic terminal) for Modbus serial
RJ45 (on the remote graphic terminal) for Ethernet/Modbus TCP |
|
physical interface |
2-wire RS 485 for Modbus serial
|
|
transmission frame |
RTU for Modbus serial
|
|
transmission rate |
4.8, 9.6, 19.2, 38.4 kbit/s for Modbus serial
10/100 Mbit/s for Ethernet IP/Modbus TCP |
|
exchange mode |
Half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
|
|
data format |
8 bits, configurable odd, even or no parity for Modbus serial
|
|
type of polarization |
No impedance for Modbus serial
|
|
number of addresses |
1…247 for Modbus serial
|
|
method of access |
Slave Modbus TCP
|
|
supply |
Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection
Internal supply for digital inputs and STO: 24 V DC (21…27 V), <200 mA, protection type: overload and short-circuit protection External supply for digital inputs: 24 V DC (19…30 V), <1.25 mA, protection type: overload and short-circuit protection |
|
local signalling |
3 LEDs (dual colour) for embedded communication status
4 LEDs (dual colour) for communication module status 1 LED (red) for presence of voltage 3 LEDs for local diagnostic |
|
width |
264 mm
|
|
height |
678 mm
|
|
depth |
272 mm
|
|
net weight |
10.5 kg
|
|
analogue input number |
3
|
|
analogue input type |
AI1, AI2, AI3 software-configurable current: 0…20 mA/4…20 mA, impedance: 250 Ohm, resolution 12 bits
AI1, AI2, AI3 software-configurable voltage: 0…10 V DC, impedance: 30 kOhm, resolution 12 bits |
|
discrete input number |
8
|
|
discrete input type |
DI5, DI6 programmable as pulse input: 0…30 kHz, 24 V DC (<= 30 V)
STOA, STOB safe torque off, 24 V DC (<= 30 V), impedance: > 2.2 kOhm DI1…DI6 programmable, 24 V DC (<= 30 V), impedance: 3.5 kOhm |
|
input compatibility |
DI5, DI6: discrete input level 1 PLC conforming to IEC 65A-68
STOA, STOB: discrete input level 1 PLC conforming to EN/IEC 61131-2 DI1…DI6: discrete input level 1 PLC conforming to EN/IEC 61131-2 |
|
discrete input logic |
Negative logic (sink) (DI1…DI6), > 16 V (state 0), < 10 V (state 1)
Positive logic (source) (DI5, DI6), < 0.6 V (state 0), > 2.5 V (state 1) Positive logic (source) (STOA, STOB), < 5 V (state 0), > 11 V (state 1) Positive logic (source) (DI1…DI6), < 5 V (state 0), > 11 V (state 1) |
|
analogue output number |
2
|
|
analogue output type |
Software-configurable current AO1, AO2: 0…20 mA, resolution 10 bits
Software-configurable voltage AO1, AO2: 0…10 V DC impedance 470 Ohm, resolution 10 bits |
|
sampling duration |
5 ms +/- 1 ms (DI5, DI6) – discrete input
5 ms +/- 0.1 ms (AI1, AI2, AI3) – analog input 10 ms +/- 1 ms (AO1) – analog output 2 ms +/- 0.5 ms (DI1…DI4) – discrete input |
|
accuracy |
+/- 1 % AO1, AO2 for a temperature variation 60 °C analog output
+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input |
|
linearity error |
AO1, AO2: +/- 0.2 % for analog output
AI1, AI2, AI3: +/- 0.15 % of maximum value for analog input |
|
relay output number |
3
|
|
relay output type |
Configurable relay logic R2: sequence relay NO electrical durability 100000 cycles
Configurable relay logic R3: sequence relay NO electrical durability 100000 cycles Configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles |
|
refresh time |
Relay output (R1, R2, R3): 5 ms (+/- 0.5 ms)
|
|
minimum switching current |
Relay output R1, R2, R3: 5 mA at 24 V DC
|
|
maximum switching current |
Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 30 V DC
Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 250 V AC |
|
isolation |
Between power and control terminals
|
|
Variable speed drive application selection |
Compressor centrifugal Building – HVAC
|
|
Motor power range AC-3 |
1.1…2 kW at 380…440 V 3 phases
|
|
mounting mode |
Wall mount
|
insulation resistance |
> 1 MOhm 500 V DC for 1 minute to earth
|
|
---|---|---|
noise level |
52 dB conforming to 86/188/EEC
|
|
operating position |
Vertical +/- 10 degree
|
|
maximum THDI |
<48 % full load conforming to IEC 61000-3-12
|
|
electromagnetic compatibility |
Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs – 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 |
|
pollution degree |
2 conforming to EN/IEC 61800-5-1
|
|
vibration resistance |
1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6
1.5 mm peak to peak (f= 2…13 Hz) conforming to IEC 60068-2-6 |
|
shock resistance |
15 gn for 11 ms conforming to IEC 60068-2-27
|
|
relative humidity |
5…95 % without condensation conforming to IEC 60068-2-3
|
|
ambient air temperature for operation |
40…50 °C (with derating factor)
-15…40 °C (without derating) |
|
ambient air temperature for storage |
-40…70 °C
|
|
operating altitude |
1000…4800 m with current derating 1 % per 100 m
<= 1000 m without derating |
|
environmental characteristic |
Dust pollution resistance class 3S3 conforming to EN/IEC 60721-3-3
Chemical pollution resistance class 3C3 conforming to EN/IEC 60721-3-3 |
|
standards |
EN/IEC 61800-3
Environment 1 category C2 EN/IEC 61800-3 Environment 2 category C3 EN/IEC 61800-3 EN/IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1 UL 508C |
|
product certifications |
ABS
REACH ATEX INERIS Bureau Veritas TÜV CSA DNV-GL TÜV |
|
marking |
CE
|
Package 1 Weight |
21.000 kg
|
---|
