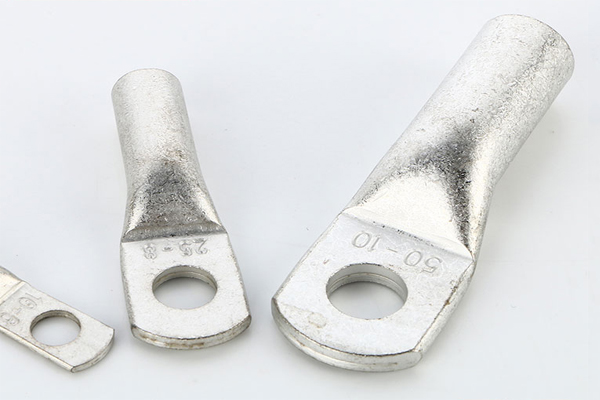

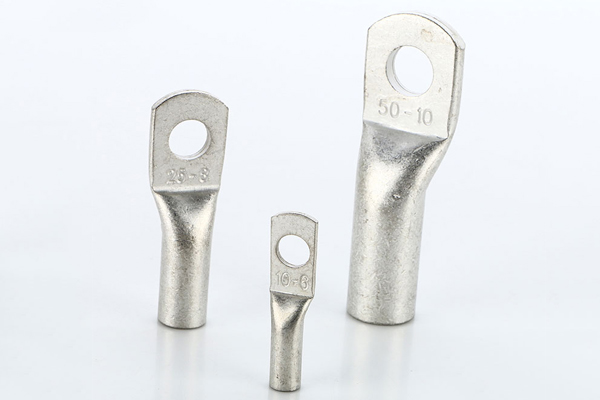

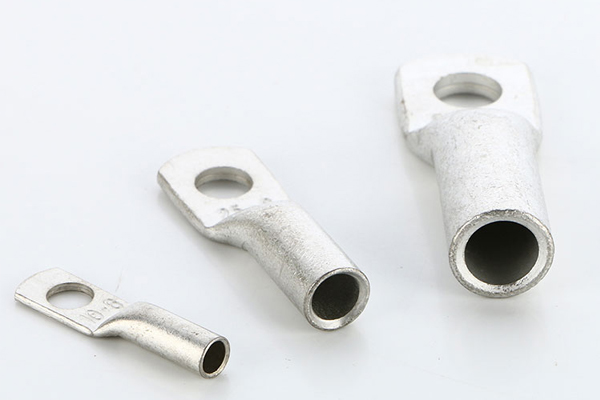

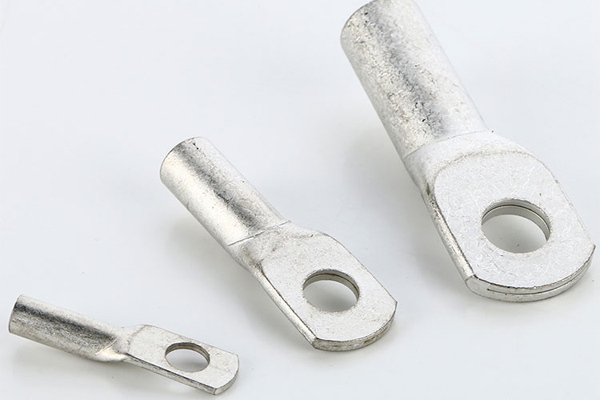

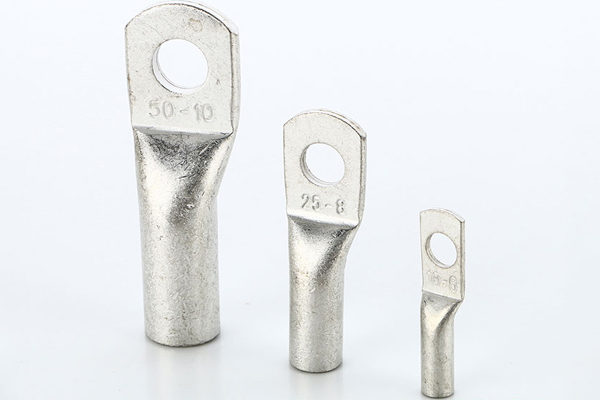

Copper Cable Lugs DIN Type Wire Lugs DIN

Category:

Copper Cable Lugs DIN Type Wire Lugs DIN

Specification:

Material: Copper, Tin-plated copper, Tinned Copper
Working Temperature: -40ºC to 150ºC
Certification: CE, RoHS, UL Approved
The Copper Cable Lugs DIN are made of the high-quality copper which ensures good conductivity at its user end. The Copper Cable Lugs DIN are tin plated to provide excellent corrosion resistance.

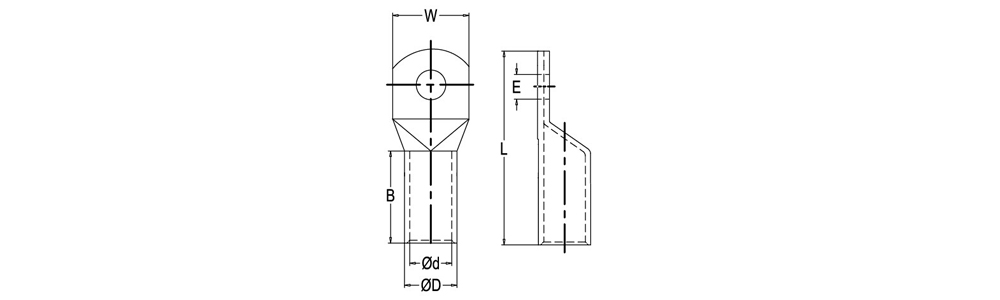

(In mm)

Item No. E W B L
DIN6-5 5.3 5.5 3.8 8.5 10 30.5
DIN6-6 6.4 5.5 3.8 8.5 10 31.5
DIN6-8 8.4 5.5 3.8 13 10 34
DIN10-5 5.3 6 4.5 9 10 34
DIN10-6 6.4 6 4.5 9 10 34.5
DIN10-8 8.4 6 4.5 13 10 37
DIN10-10 10.5 6 4.5 15 10 39
DIN16-6 6.4 8.5 5.5 13 20 43.5
DIN16-8 8.4 8.5 5.5 13 20 46
DIN16-10 10.5 8.5 5.5 17 20 48
DIN16-12 13 8.5 5.5 18 20 49
DIN25-6 6.4 10 7 14 20 45.5
DIN25-8 8.4 10 7 16 20 48
DIN25-10 10.5 10 7 17 20 50
DIN25-12 13 10 7 19 20 51
DIN35-6 6.4 12.5 8.2 17 20 49.5
DIN35-8 8.4 12.5 8.2 17 20 52
DIN35-10 10.5 12.5 8.2 19 20 54
DIN35-12 13 12.5 8.2 21 20 55
DIN35-14 15 12.5 8.2 21 20 56.5
DIN50-8 8.4 14.5 10 20 28 62
DIN50-10 10.5 14.5 10 22 28 64
DIN50-12 13 14.5 10 24 28 65
DIN50-14 15 14.5 10 24 28 66.5
DIN50-16 17 14.5 10 28 28 68
DIN70-8 8.4 16.5 11.5 24 28 65
DIN70-10 10.5 16.5 11.5 24 28 67
DIN70-12 13 16.5 11.5 24 28 68
DIN70-14 15 16.5 11.5 24 28 69.5
DIN70-16 17 16.5 11.5 30 28 71
DIN95-8 8.4 19 13.5 28 35 77
DIN95-10 10.5 19 13.5 28 35 77
DIN95-12 13 19 13.5 28 35 78
DIN95-14 15 19 13.5 28 35 79.5
DIN95-16 17 19 13.5 32 35 81
DIN120-10 10.5 21 15.5 32 35 85
DIN120-12 13 21 15.5 32 35 86
DIN120-14 15 21 15.5 32 35 88
DIN120-16 17 21 15.5 32 35 89
DIN120-20 21 21 15.5 38 35 91
DIN150-10 10.5 23.5 17 34 35 93
DIN150-12 13 23.5 17 34 35 94
DIN150-14 15 23.5 17 34 35 97
DIN150-16 17 23.5 17 34 35 97
DIN150-20 21 23.5 17 40 35 99
DIN185-10 10.5 25.5 19 37 40 97
DIN185-12 13 25.5 19 37 40 98
DIN185-14 15 25.5 19 37 40 101
DIN185-16 17 25.5 19 37 40 101
DIN185-20 21 25.5 19 40 40 103
DIN240-12 13 29 21.5 42 40 108
DIN240-14 15 29 21.5 42 40 111
DIN240-16 17 29 21.5 42 40 111
DIN240-20 21 29 21.5 45 40 113
DIN300-12 13 32 24.5 46 50 119
DIN300-14 15 32 24.5 46 50 119
DIN300-16 17 32 24.5 46 50 119
DIN300-20 21 32 24.5 46 50 122
DIN400-14 15 38.5 27.5 55 70 140
DIN400-16 17 38.5 27.5 55 70 140
DIN400-20 21 38.5 27.5 55 70 140
DIN500-16 17 42 31 60 70 150
DIN500-20 21 42 31 60 70 150
DIN625-16 17 44 34.5 64 80 160
DIN625-20 21 44 34.5 64 80 160
DIN800-16 17 52 40 75 100 195
DIN800-20 21 52 40 75 100 195
DIN1000-1 17 58 44 85 100 195
DIN1000-2 21 58 44 85 100 195
