Bell Mouth Copper Lugs Cable Lugs HESL
Specification:
Material: Copper, Tin-plated copper, Tinned Copper
Working Temperature: -40ºC to 150ºC
Certification: CE, RoHS, UL Approved

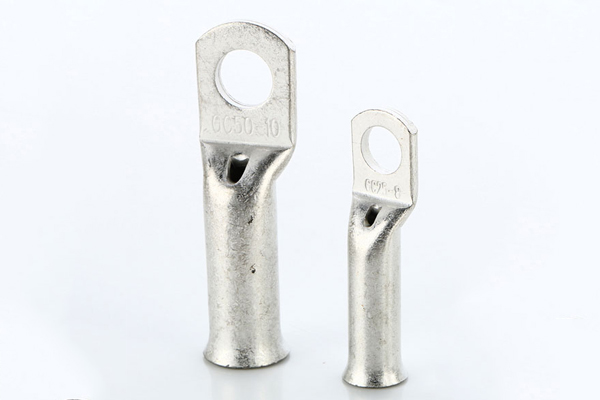

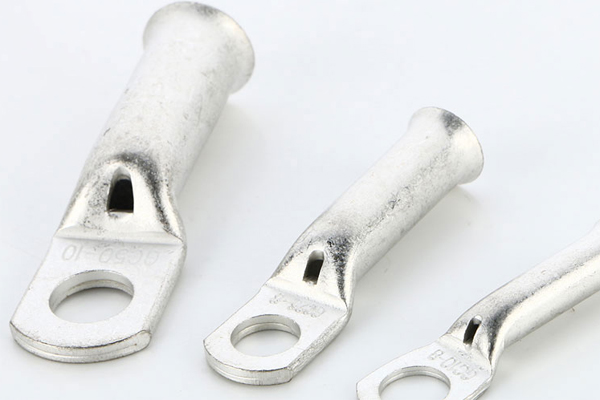

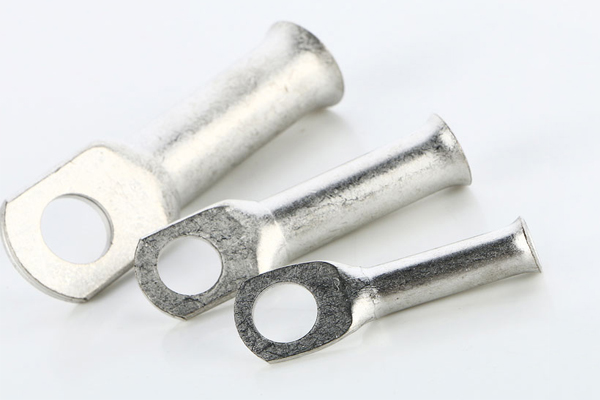

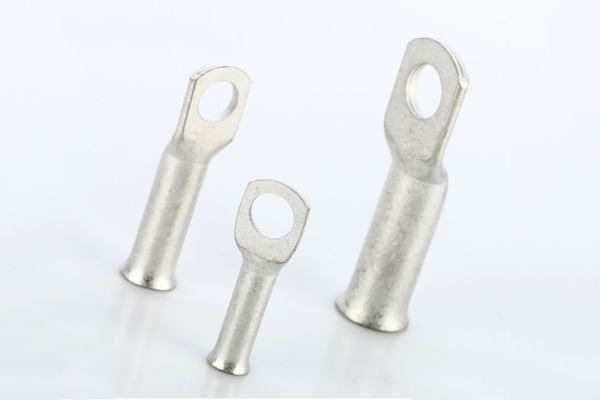

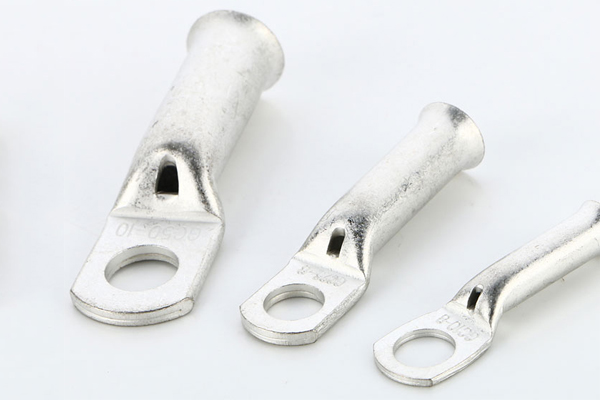

The Bell Mouth Copper Lugs are made of the high-quality copper which ensures good conductivity at its user end. The Bell Mouth Copper Lugs are tin plated to provide excellent corrosion resistance.
(In mm)

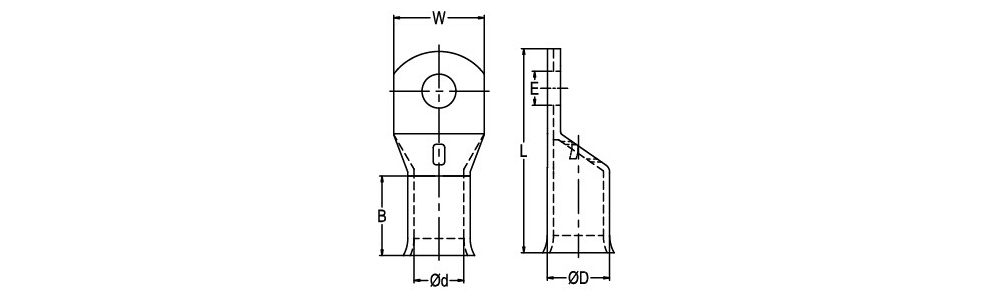

| Item No. | E | Dφ | dφ | W | B | L |
| HESL1.5-3 | 3.2 | 3.7 | 1.8 | 8 | 11 | 21 |
| HESL1.5-4 | 4.3 | 3.7 | 1.8 | 8 | 11 | 22 |
| HESL1.5-5 | 5.3 | 3.7 | 1.8 | 10 | 12 | 24 |
| HESL1.5-6 | 6.5 | 3.7 | 1.8 | 10 | 12 | 25 |
| HESL2.5-3 | 3.2 | 3.9 | 2.3 | 8 | 12 | 22 |
| HESL2.5-4 | 4.3 | 3.9 | 2.3 | 8 | 12 | 23 |
| HESL2.5-5 | 5.3 | 3.9 | 2.3 | 10 | 12 | 25 |
| HESL2.5-6 | 6.5 | 3.9 | 2.3 | 10 | 12 | 25 |
| HESL2.5-8 | 8.3 | 4.3 | 2.3 | 12.5 | 12 | 27.5 |
| HESL4-4 | 4.3 | 4.7 | 3 | 10 | 13 | 26 |
| HESL4-5 | 5.3 | 4.7 | 3 | 10 | 13 | 27 |
| HESL4-6 | 6.5 | 4.7 | 3 | 10 | 13 | 28 |
| HESL4-8 | 8.3 | 4.7 | 3 | 12.5 | 13 | 29 |
| HESL6-4 | 4.3 | 5.9 | 4 | 10 | 18.5 | 33.6 |
| HESL6-5 | 5.3 | 5.9 | 4 | 10 | 18.5 | 33.6 |
| HESL6-6 | 6.5 | 5.9 | 4 | 11 | 18.5 | 33.6 |
| HESL6-8 | 8.3 | 5.9 | 4 | 12.5 | 18.5 | 36.3 |
| HESL6-10 | 10.3 | 6.2 | 4 | 15 | 18.5 | 37.3 |
| HESL10-5 | 5.3 | 6.6 | 4.5 | 11 | 22 | 39 |
| HESL10-6 | 6.5 | 6.6 | 4.5 | 11 | 22 | 39 |
| HESL10-8 | 8.3 | 6.6 | 4.5 | 12.5 | 22 | 39 |
| HESL10-10 | 10.3 | 6.9 | 4.5 | 16 | 22 | 43.1 |
| HESL10-12 | 12.7 | 6.9 | 4.5 | 18 | 21 | 43.1 |
| HESL16-5 | 5.3 | 7.5 | 5.5 | 11 | 23 | 39.7 |
| HESL16-6 | 6.5 | 7.5 | 5.5 | 11 | 23 | 39.7 |
| HESL16-8 | 8.3 | 7.5 | 5.5 | 12.5 | 22 | 39.7 |
| HESL16-10 | 10.3 | 7.5 | 5.5 | 16 | 23 | 44.9 |
| HESL16-12 | 12.7 | 8.1 | 5.5 | 18 | 22 | 44.9 |
| HESL25-5 | 5.3 | 9.1 | 6.7 | 13 | 28 | 47.2 |
| HESL25-6 | 6.5 | 9.1 | 6.7 | 13 | 28 | 47.2 |
| HESL25-8 | 8.3 | 9.1 | 6.7 | 13 | 28 | 47.2 |
| HESL25-10 | 10.3 | 9.1 | 6.7 | 16 | 29 | 51.9 |
| HESL25-12 | 12.7 | 9.1 | 6.7 | 18 | 28 | 51.9 |
| HESL25-14 | 14.8 | 9.1 | 6.7 | 20 | 28 | 53.9 |
| HESL35-5 | 5.3 | 11 | 8.6 | 16 | 31 | 52.6 |
| HESL35-6 | 6.5 | 11 | 8.6 | 16 | 31 | 52.6 |
| HESL35-8 | 8.3 | 11 | 8.6 | 16 | 31 | 52.6 |
| HESL35-10 | 10.3 | 11 | 8.6 | 16.7 | 31 | 56.5 |
| HESL35-12 | 12.7 | 11 | 8.6 | 18 | 31 | 56.5 |
| HESL35-14 | 14.8 | 11 | 8.6 | 20 | 31 | 58.5 |
| HESL35-16 | 16.5 | 11 | 8.6 | 23 | 31 | 60.5 |
| HESL50-5 | 5.3 | 12.4 | 9.5 | 18 | 32 | 56 |
| HESL50-6 | 6.5 | 12.4 | 9.5 | 18 | 32 | 56 |
| HESL50-8 | 8.3 | 12.4 | 9.5 | 18 | 32 | 56 |
| HESL50-10 | 10.3 | 12.4 | 9.5 | 18 | 32 | 59 |
| HESL50-12 | 12.7 | 12.4 | 9.5 | 19 | 32 | 59 |
| HESL50-14 | 14.8 | 12.4 | 9.5 | 21 | 34 | 67.8 |
| HESL50-16 | 16.5 | 12.4 | 9.5 | 23 | 34 | 67.8 |
| HESL70-5 | 5.3 | 15 | 12 | 22 | 36.5 | 67.4 |
| HESL70-6 | 6.3 | 15 | 12 | 22 | 36.5 | 67.4 |
| HESL70-8 | 8.3 | 15 | 12 | 22 | 36.5 | 67.4 |
| HESL70-10 | 10.3 | 15 | 12 | 22 | 36.5 | 67.4 |
| HESL70-12 | 12.7 | 15 | 12 | 22 | 36.5 | 67.4 |
| HESL70-14 | 14.8 | 15 | 12 | 22 | 36.5 | 70 |
| HESL70-16 | 16.5 | 15 | 12 | 24 | 35 | 70 |
| HESL95-8 | 8.3 | 17 | 13.4 | 25 | 37.5 | 69.7 |
| HESL95-10 | 10.3 | 17 | 13.4 | 25 | 37.5 | 69.7 |
| HESL95-12 | 12.7 | 17 | 13.4 | 25 | 37.5 | 69.7 |
| HESL95-14 | 14.8 | 17 | 13.4 | 25 | 37.5 | 73.3 |
| HESL95-16 | 16.8 | 17 | 13.4 | 25 | 37.5 | 73.3 |
| HESL95-20 | 20.9 | 17 | 13.4 | 28 | 34.5 | 73.3 |
| HESL120-8 | 8.3 | 19 | 15 | 27.5 | 38 | 75 |
| HESL120-1 | 10.3 | 19 | 15 | 27.5 | 38 | 75 |
| HESL120-1 | 12.7 | 19 | 15 | 27.5 | 38 | 75 |
| HESL120-1 | 14.8 | 19 | 15 | 27.5 | 38 | 79 |
| HESL120-1 | 16.5 | 19 | 15 | 27.5 | 38 | 79 |
| HESL120-2 | 20.9 | 19 | 15 | 27.5 | 38 | 79 |
| HESL150-1 | 10.3 | 21.2 | 16.5 | 30.8 | 42 | 82 |
| HESL150-1 | 12.7 | 21.2 | 16.5 | 30.8 | 42 | 82 |
| HESL150-1 | 14.8 | 21.2 | 16.5 | 30.8 | 42 | 82 |
| HESL150-1 | 16.5 | 21.2 | 16.5 | 30.8 | 42 | 86.4 |
| HESL150-2 | 20.9 | 21.2 | 16.5 | 30.8 | 42 | 86.4 |
| HESL185-1 | 10.3 | 23 | 19 | 34 | 45 | 88 |
| HESL185-1 | 12.7 | 23 | 19 | 34 | 45 | 88 |
| HESL185-1 | 14.8 | 23 | 19 | 34 | 45 | 88 |
| HESL185-1 | 16.5 | 23 | 19 | 34 | 45 | 91.2 |
| HESL185-2 | 20.9 | 23 | 19 | 34 | 45 | 91.2 |
| HESL240-1 | 10.3 | 26.5 | 21 | 38.6 | 53 | 106.4 |
| HESL240-1 | 12.7 | 26.5 | 21 | 38.6 | 53 | 106.4 |
| HESL240-1 | 14.8 | 26.5 | 21 | 38.6 | 53 | 106.4 |
| HESL240-1 | 16.5 | 26.5 | 21 | 38.6 | 53 | 106.4 |
| HESL240-2 | 20.9 | 26.5 | 21 | 38.6 | 53 | 106.4 |
| HESL300-1 | 12.7 | 30 | 24.5 | 43.8 | 57 | 113 |
| HESL300-1 | 14.8 | 30 | 24.5 | 43.8 | 57 | 113 |
| HESL300-1 | 16.5 | 30 | 24.5 | 43.8 | 57 | 113 |
| HESL300-2 | 20.9 | 30 | 24.5 | 43.8 | 57 | 113 |
| HESL400-1 | 12.7 | 35 | 27 | 49 | 59 | 119 |
| HESL400-1 | 14.8 | 35 | 27 | 49 | 59 | 119 |
| HESL400-1 | 16.5 | 35 | 27 | 49 | 59 | 119 |
| HESL400-2 | 20.9 | 35 | 27 | 49 | 59 | 119 |
