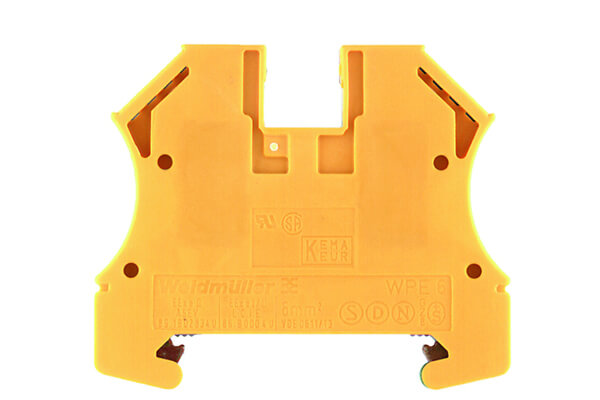

1010200000 PE terminal, Screw connection, 6 mm², 720 A (6 mm²), Green/yellow

1010200000 PE terminal, Screw connection, 6 mm², 720 A (6 mm²), Green/yellow

Category:

1010200000 PE terminal, Screw connection, 6 mm², 720 A (6 mm²), Green/yellow

Specification：

TypeWPE 6
Order No.1010200000
VersionPE terminal, Screw connection, 6 mm², 720 A (6 mm²), Green/yellow
Operating temperature rangeFor operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
Continuous operating temp., min.-60 °C
Continuous operating temp., max.130 °C
Rated cross-section6 mm²
Rated voltage to adjoining terminal800 V
StandardsIEC 60947-7-2
Volume resistance according to IEC 60947-7-x0.78 mΩ
Rated impulse withstand voltage to adjacent terminal8 kV
Pollution severity3
