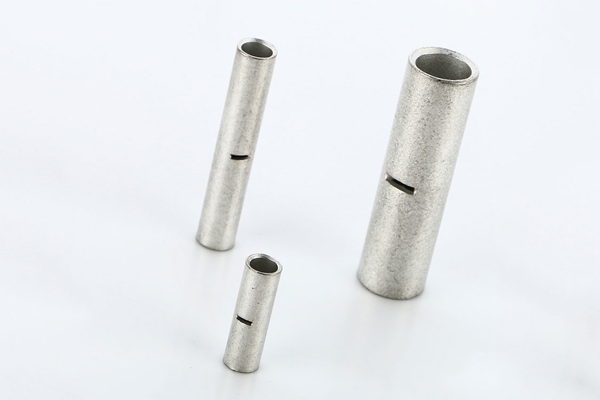

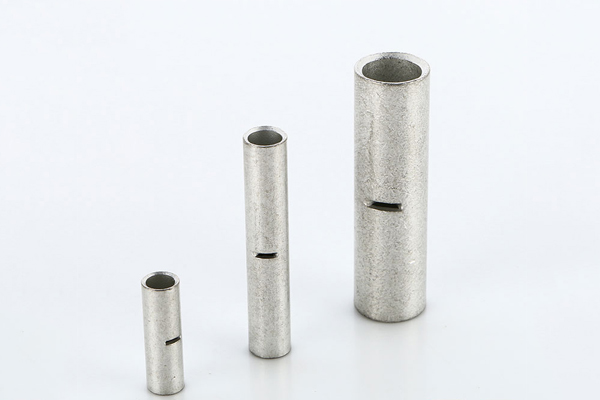

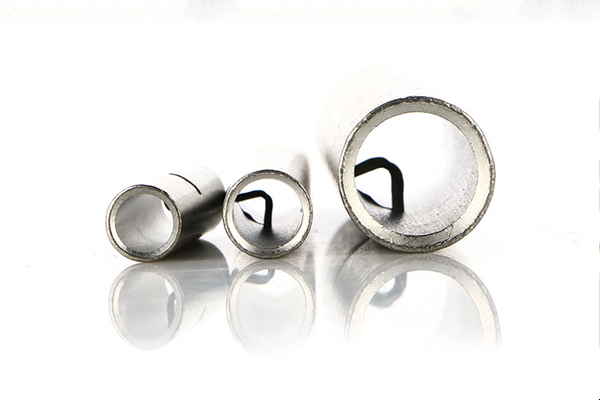

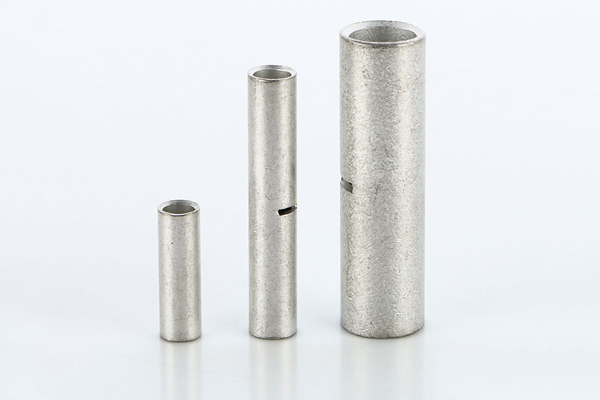

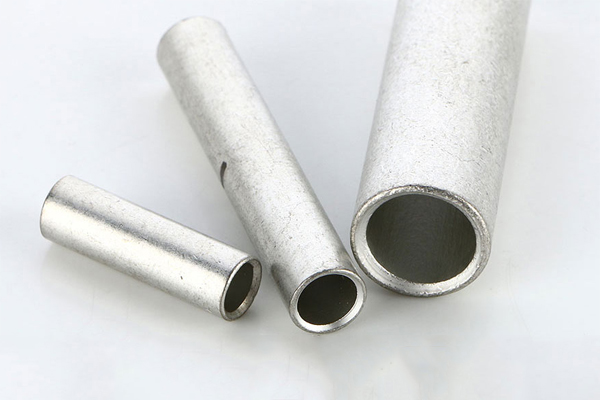

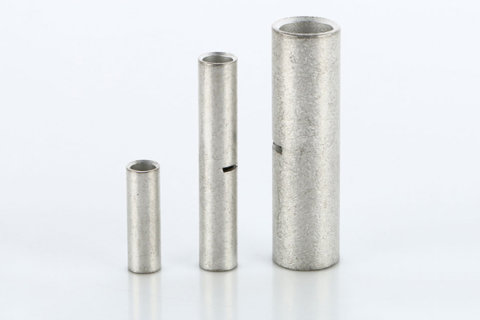

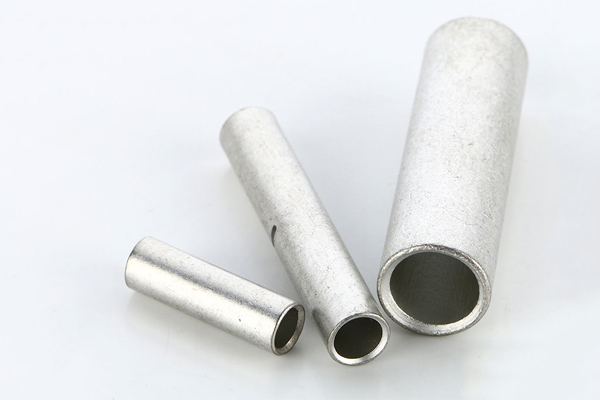

BL Type Lugs Copper Cable Lugs High Voltage BL
Specification:
Material: Copper, Tin-plated copper, Tinned Copper
Working Temperature: -40ºC to 150ºC
Certification: CE, RoHS, UL Approved
The BL Type Lugs are made of the high-quality copper which ensures good conductivity at its user end. The BL Type Lugs are tin plated to provide excellent corrosion resistance.

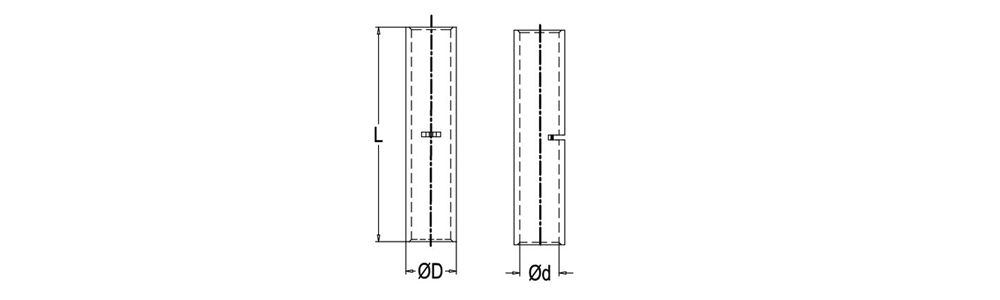

(In mm)
| Item No. | Dφ | dφ | L |
| BL1.5 | 3.7 | 1.8 | 20 |
| BL2.5 | 4 | 2.4 | 20 |
| BL4 | 4.8 | 3.1 | 20 |
| BL6 | 5.5 | 3.8 | 20 |
| BL10 | 6.2 | 4.5 | 20 |
| BL16 | 7.1 | 5.4 | 40 |
| BL25 | 8.8 | 6.8 | 45 |
| BL35 | 10.6 | 8.2 | 45 |
| BL50 | 12.4 | 9.5 | 45 |
| BL70 | 14.7 | 11.2 | 50 |
| BL95 | 17.4 | 13.5 | 50 |
| BL120 | 19.4 | 15 | 55 |
| BL150 | 21.2 | 16.5 | 60 |
| BL185 | 23.5 | 18.5 | 65 |
| BL240 | 26.5 | 21 | 80 |
| BL300 | 30 | 23.5 | 85 |
| BL400 | 36.5 | 28.5 | 90 |
| BL500 | 39 | 30 | 100 |
| BL550 | 41.4 | 31.7 | 100 |
| BL630 | 45 | 35 | 110 |
| BL800 | 50.6 | 39 | 150 |
| BL1000 | 56.2 | 43 | 170 |
| BLA-1.5 | 3.6 | 1.8 | 20 |
| BLA-2.5 | 3.9 | 2.4 | 20 |
| BLA-4 | 4.7 | 3.1 | 20 |
| BLA-6 | 5.4 | 3.8 | 20 |
| BLA-10 | 6.1 | 4.5 | 20 |
| BLA-16 | 7 | 5.4 | 40 |
| BLA25 | 8.6 | 6.8 | 45 |
| BLA35 | 10.4 | 8.2 | 45 |
| BLA50 | 12.2 | 9.5 | 45 |
| BLA70 | 14.4 | 11.2 | 50 |
| BLA95 | 17.1 | 13.2 | 50 |
| BLA120 | 19 | 15 | 55 |
| BLA150 | 20.8 | 16.5 | 60 |
| BLA185 | 23.1 | 18.5 | 65 |
| BLA240 | 26 | 21 | 80 |
| BLA300 | 29.4 | 23.5 | 85 |
| BLA400 | 35.8 | 28.5 | 90 |
| BLA500 | 38.2 | 30 | 100 |
| BLA630 | 44.1 | 35 | 110 |
| BLB1.5 | 3.4 | 1.8 | 20 |
| BLB2.5 | 3.7 | 2.4 | 20 |
| BLB4 | 4.5 | 3.1 | 20 |
| BLB6 | 5.2 | 3.8 | 20 |
| BLB10 | 5.9 | 4.5 | 20 |
| BLB16 | 6.8 | 5.4 | 40 |
| BLB25 | 8.4 | 6.8 | 45 |
| BLB35 | 10.2 | 8.2 | 45 |
| BLB50 | 11.9 | 9.5 | 45 |
| BLB70 | 14.1 | 11.2 | 50 |
| BLB95 | 16.7 | 13.5 | 50 |
| BLB120 | 18.6 | 15 | 55 |
| BLB150 | 20.4 | 16.5 | 60 |
| BLB185 | 22.6 | 18.5 | 65 |
| BLB240 | 25.5 | 21 | 80 |
| BLB300 | 28.8 | 23.5 | 85 |
| BLB400 | 35.1 | 28.5 | 90 |
| BLB500 | 37.4 | 30 | 100 |
| BLB630 | 43.2 | 35 | 110 |
| BLC1.5 | 3.3 | 1.8 | 20 |
| BLC2.5 | 3.6 | 2.4 | 20 |
| BLC4 | 4.4 | 3.1 | 20 |
| BLC6 | 5.1 | 3.8 | 20 |
| BLC10 | 5.8 | 4.5 | 20 |
| BLC16 | 6.6 | 5.4 | 40 |
| BLC25 | 8.3 | 6.8 | 45 |
| BLC35 | 10 | 8.2 | 45 |
| BLC50 | 11.6 | 9.5 | 45 |
| BLC70 | 13.8 | 11.2 | 50 |
| BLC95 | 16.4 | 13.5 | 50 |
| BLC120 | 18.2 | 15 | 55 |
| BLC150 | 19.9 | 16.5 | 60 |
| BLC185 | 22.1 | 18.5 | 65 |
| BLC240 | 25 | 21 | 80 |
| BLC300 | 28.2 | 23.5 | 85 |
| BLC400 | 34.3 | 28.5 | 90 |
| BLC500 | 36.5 | 30 | 100 |
| BLC630 | 42.2 | 35 | 110 |
