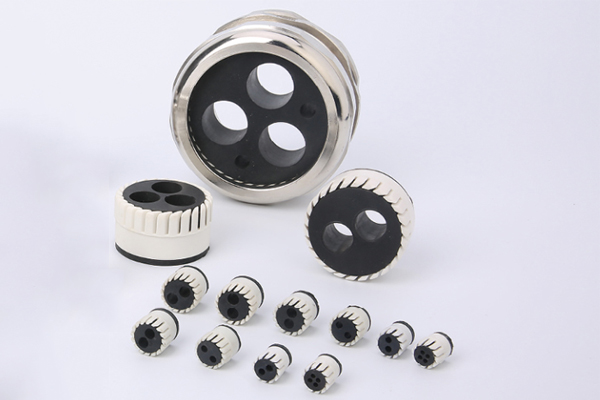

Multi Hole Brass Cable Gland IP68
Specification:

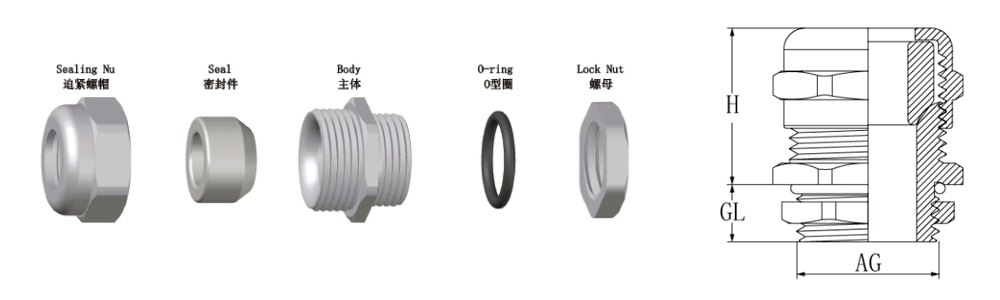

Material:
Nickel-plated brass
Claw: PA66 (Nylon) , UL94-V2
Hermetic seal: NBR, Silicone rubber
O-ring: NBR, Silicone rubber
Protection rating: IP68 -10 bar
Work / Operating Temperature:
Static state: -40 °C to 100 ° C, Short time to 120°C;
Dynamic state: -20 °C to 80° C, Short time to 100°C
Certificate: CE, RoHS approved
Multi hole brass cable gland (2~8 holes)
(In mm)
| Item | Single Hole | M2 | M3 | M4 | M5 | M6 | M7 | M8 | Item No. |
| M12X1.5 | / | 3-1.2 | 2.6-1.2 | 2.3-1 | / | / | BMHM12 | ||
| M16X1.5 | / | 4-1.6 | 2.6-1.2 | 2.3-1 | 2.5-1 | 2-1 | / | / | BMHM16 |
| M18X1.5 | 6*10 | 3.5-2 | 4-1.6 | 3-1.2 | 2.6-1.5 | 2.2-1 | / | / | BMHM18 |
| M20X1.5 | 5*11.5 | 5.3-1.5 | 5-2 | 4.2-1.7 | 3-1.2 | 3-1.2 | 3-1.2 | 3-1.2 | BMHM20 |
| M22X1.5 | 6*14 | 6-2.5 | 3.5-1.5 | 4.5-2 | 3-1.2 | 3-1.2 | 3-1.2 | / | BMHM22 |
| M25X1.5 | 6*14 | 8.7-4 | 8-4 | 5-2 | 3.5-1.5 | 3.5-1.5 | 3.5-1.5 | 3.5-1.5 | BMHM25 |
| M27X1.5 | 7*18 | 8J-4.5 | 5-2 | 7-3.5 | 3.5-1.5 | 3.5-1.5 | 3.5-1.5 | 3.5-1.5 | BMHM27 |
| M32X1.5 | 8*22 | 10-5 | 10-5 | 9-4.5 | 8.0-4.0 | 7-3.5 | 6-3 | / | BMHM32 |
| M37X1.5 | / | 9-6 | / | 9-6 | / | 6.5-3.5 | / | / | BMHM37 |
| M40X1.5 | / | 15-12 | / | / | 9-6 | 8-5 | 9-6 | / | BMHM40 |
| M50X1.5 | / | / | / | / | 5-3 | / | / | / | BMHM50 |
| M63X1.5 | / | 17-14 | 18-15 | / | / | / | / | / | BMHM63 |
