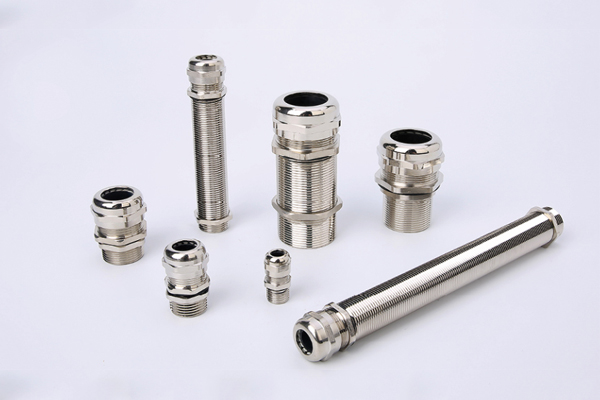

Metal Brass Cable Gland Long Thread Length Type
Specification:
Material:
Nickel-plated brass
Claw: PA66 (Nylon) , UL94-V2
Hermetic seal: NBR, Silicone rubber
O-ring: NBR, Silicone rubber
Protection rating: IP68 -10 bar
Work / Operating Temperature:
Static state: -40 °C to 100 ° C, Short time to 120°C;
Dynamic state: -20 °C to 80° C, Short time to 100°C
Certificate: CE, RoHS approved
(In mm)

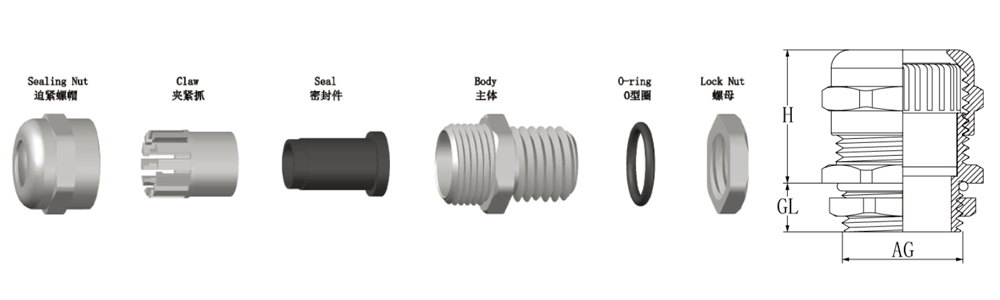

| Item | Cable Range | Thread Length GL | Thread O.D. AG | Joint Length H | Spanner size | Item No. |
| PG7 | 3-6.5 | 10 | 12.5 | 17 | 14/15 | BPG7L |
| PG9 | 4-8 | 12 | 15.2 | 19 | 17/18 | BPG9L |
| PG11 | 5-10 | 12 | 18.6 | 21 | 20/21 | BPG11L |
| PG13.5 | 6-12 | 12 | 20.4 | 22 | 22/23 | BPG13.5L |
| PG16 | 10-14 | 12 | 22.5 | 23 | 24/25 | BPG16L |
| PG21 | 13-18 | 12 | 28.3 | 27 | 30 | BPG21L |
| PG29 | 18-25 | 15 | 37.0 | 31 | 40 | BPG29L |
| PG36 | 25-33 | 15 | 47.0 | 37 | 50 | BPG36L |
| PG42 | 32-38 | 15 | 54.0 | 37 | 57 | BPG42L |
| PG48 | 37-44 | 18 | 59.3 | 38 | 64 | BPG48L |
