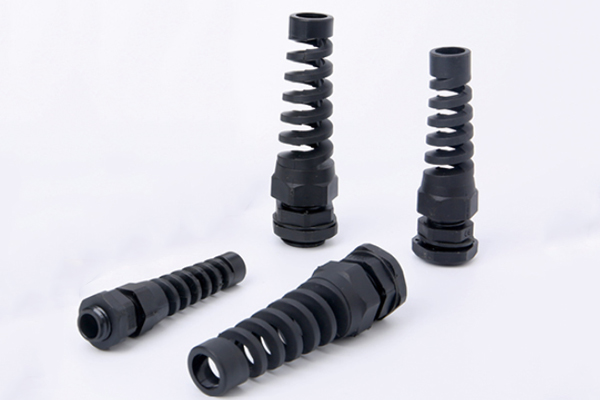

Nylon IP68 Cable Gland Spiral Support
Specification:
Material:
Nylon 66
Claw: PA66 (Nylon) , UL94-V2
Hermetic seal: NBR, Silicone rubber
O-ring: NBR, Silicone rubber
Protection rating: IP68
Work / Operating Temperature:
Static state: -40 °C to 100 ° C, Short time to 120°C;
Dynamic state: -20 °C to 80° C, Short time to 100°C
Certificate: CE, RoHS, REACH approved

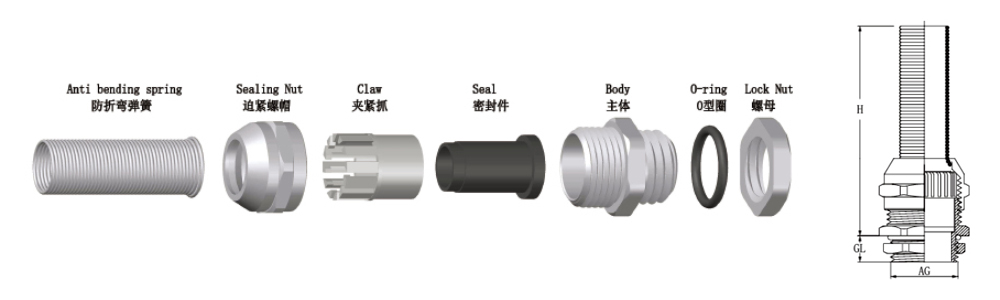

Reliable bending and anti-kink protection. The cable glands have the added feature of a spiral cable support which reduces the possibility of damage to the cable caused by pulling.
(In mm)
| Item | Range | Thread Length GL | Mounting hole | Joint Length H | Spanner size | Item No. |
| M 12×1.5 | 3-6.5 | 6.5 | 12 | 65 | 14 | NNZM12 |
| M16x1.5 | 4-8 | 8 | 16 | 75 | 18 | NNZM16 |
| M 18×1.5 | 5-10 | 8 | 18 | 77 | 20 | NNZM18 |
| M20x1.5 | 6-12 | 8 | 20 | 80 | 22 | NNZM20 |
| M22x1.5 | 10-14 | 8 | 22 | 98 | 24 | NNZM22 |
| M25x1.5 | 13-18 | 9 | 25 | 90 | 27 | NNZM25 |
| M30x1.5 | 13-18 | 9 | 25 | 100 | 30 | NNZM30 |
| PG7 | 3-6.5 | 6.5 | 12.5 | 65.0 | 14/15 | NNZPG7 |
| PG9 | 4-8 | 8 | 15.2 | 68.0 | 17/18 | NNZPG9 |
| PG11 | 5-10 | 8 | 18.6 | 75.0 | 20/21 | NNZPG11 |
| PG13.5 | 6-12 | 8 | 20.4 | 75.0 | 22/23 | NNZPG13.5 |
| PG16 | 10-14 | 8 | 22.5 | 80.0 | 24/25 | NNZPG16 |
| PG21 | 13-18 | 9 | 28.3 | 100.0 | 30 | NNZPG21 |
